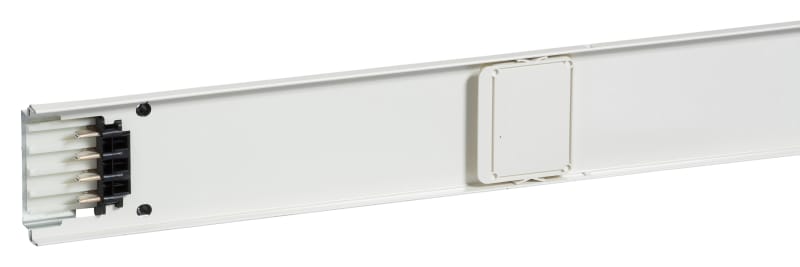

RAIL 63A 3M 6 Outlet + BUS

Schneider Electric KNT63ED4306 Rail 63A 3M 6 outlets + Bus.

Manufacturer part number (MPN)

KNT63ED4306

EAN / GTIN

3606480003455

Sales unit

pcs

Package quantity

36 pcs

Rated current

63 A

Range of product

Canalis

Product name

KN

Product or component type

Straight length

Device application

Low power distribution

[Ie] rated operational current

63 A at 35 °C

Busbar trunking polarity

3L + PEN; 3L + N + PE

Number of tap-off outlets

6

Length

3 m

[Ue] rated operational voltage

230...500 V

Network frequency

50/60 Hz

[Uimp] rated impulse withstand voltage

6 kV

[Ui] rated insulation voltage

500 V

[Icw] rated short-time withstand current

1.4 kA

[Ipk] rated peak withstand current

11 kA

Electrical connection

Lubricated sliding contact

Radiated magnetic field

0.063 µT

Thermal stress limit

1980 kA².s

THDI

0…15 % 63 A; 15…33 % 50 A; 33…100 % 40 A

Maximum voltage drop

<0.178 V with power factor = 1 at 50 Hz with 1A for 100 m long; <0.169 V with power factor = 0.9 at 50 Hz with 1A for 100 m long; <0.155 V with power factor = 0.8 at 50 Hz with 1A for 100 m long; <0.140 V with power factor = 0.7 at 50 Hz with 1A for 100 m long

mounting mode

By screws

Neutral position

Up

Number of circuits

1

Control type

Communicating

Standards

IEC 61439-6

Width

92 mm

Depth

27.5 mm

Colour

White (RAL 9001)

Product weight

5.7 kg

IP degree of protection

IP55 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Ambient air temperature for operation

0…35 °C (100 % of In); 35…40 °C (97 % of In); 40…45 °C (94 % of In); 45…50 °C (91 % of In); 50…55 °C (87 % of In)

Number of Units in Package 1

1

Number of Units in Package 2

4

Number of Units in Package 3

48

Country of origin

FR

Warranty (in months)

18

Model

Single

Height

92 mm

Flexible

No

RAL-number

9001

Number of conductors (without earthing)

4

Number of poles

4

Degree of protection (IP)

IP55

Rated voltage AC 50 Hz

230–500 V

Number of tap-off units

6

Rated current AC 50 Hz

63 A

HS Code

8536.90

• EAN 3606480003455
• SAP 1200721727
• Code 83832386
