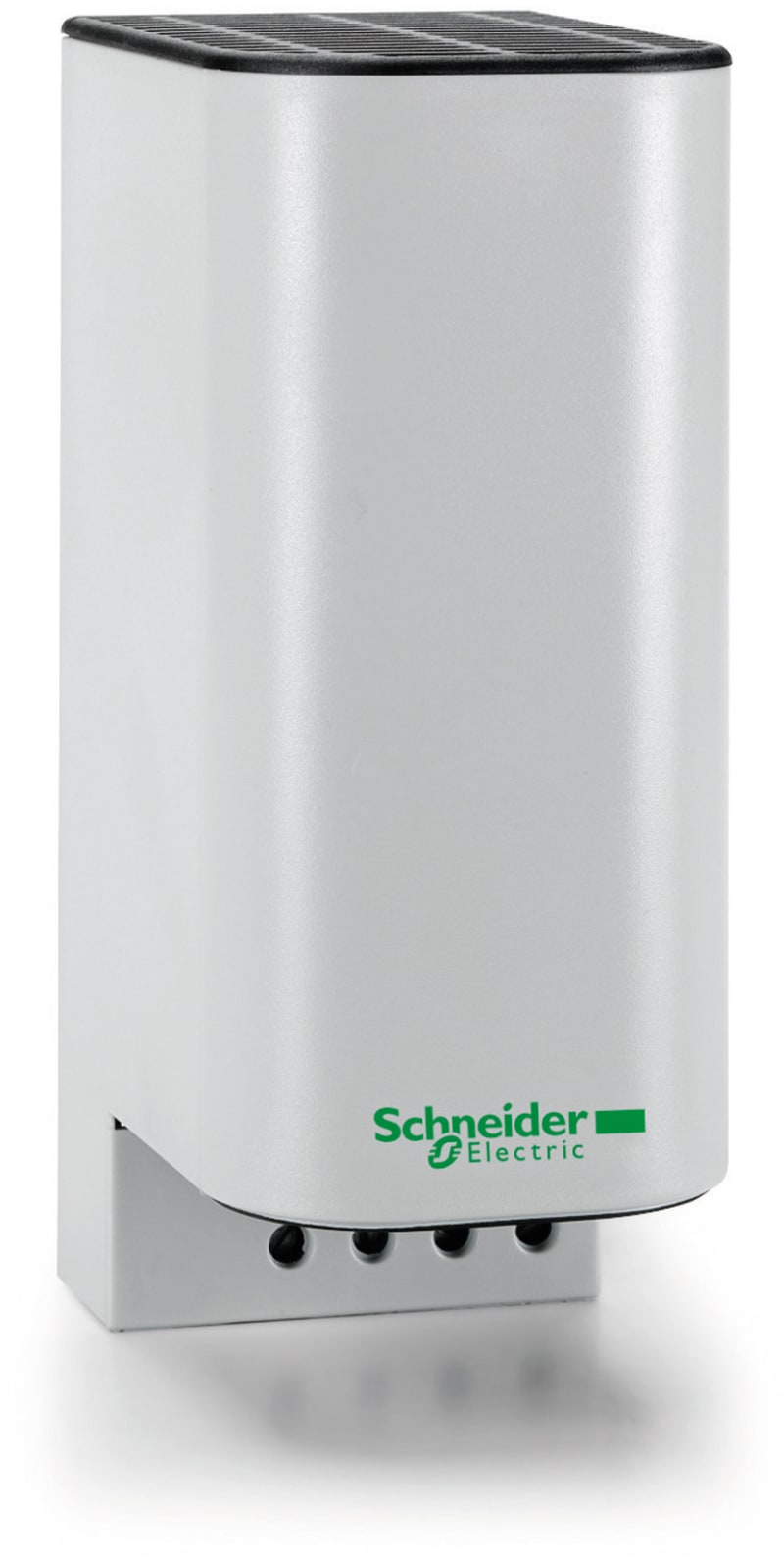

Schneider Electric ClimaSys PTC heating resistance 100W,270-420V insulate NSYCR100WU3C
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCR100WU3C Heating element 102W 270-420V AC, ClimaSys.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCR100WU3C
- EAN / GTIN
- 3606480152337
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- ClimaSys
- Product name
- ClimaSys CR
- Product or component type
- Resistance heater
- Power range
- 100 W
- Input voltage
- 270...420 V AC/DC 50/60 Hz
- Electrical connection
- 4 screw terminals 2.5 mm²
- Operating position
- Vertical
- Ambient air temperature for operation
- -40…70 °C
- IP degree of protection
- IP20
- Electrical insulation class
- Class II
- Product certifications
- VDE; UL
- Material
- Body: extruded aluminium; Cover: plastic
- Height
- External: 150 mm
- Width
- External: 60 mm
- Depth
- External : 90 mm
- Condition of use
- Heaters must be installed with a thermal controller; Electrical protection is needed; Air sealed enclosure
- fixing mode
- By clips
- Mounting support
- 35 mm DIN rail
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 200
- Country of origin
- DE
- Warranty (in months)
- 18
- Voltage type
- AC
- With room temperature controller
- No
- With fan
- No
- Degree of protection (IP)
- IP20
- Rated power
- 100 W
- Operating voltage AC 50 Hz
- 270–420 V
- Operating voltage AC 60 Hz
- 270–420 V
- Continuous heating power at 10 °C
- 100 W
Standards & Compliance
- HS Code
- 8516.80
Cross References
- EAN 3606480152337
- SAP 1000089004
- Code 8581308
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric set of 2 PanelSeT SF side plates of the centred fixed rack - 1200X800 mm NSYRC12
Schneider Electric
Schneider Electric Trip unit MicroLogic 6.2EM, ComPacT NSX100-250, 3 poles, basic and ground fault protections, motor, energy meter, 80A C1036M080
Schneider Electric
Schneider Electric electric motor MCH, MasterPact MTZ1, spare part, 48/60 V DC, 48 V AC 50/60 Hz LV833186SP
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100HB1, 75KA/690VAC, 3 poles, MicroLogic 2.2M trip unit 50A C10V32M050
Schneider Electric
Schneider Electric Climasys forced vent. 65 M3/hour, 115V, with outlet grille plastic and filter NSYCVF65M115PF
Schneider Electric

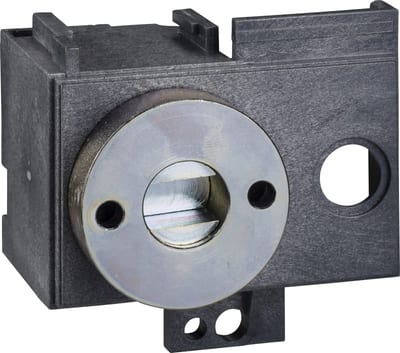

Kirk Lock Mounting Set for MTZ2
LV847517SP
Schneider Electric
Schneider Electric braking resistor - IP 20 - 28 Ohm - 200 W VW3A7703
Schneider Electric

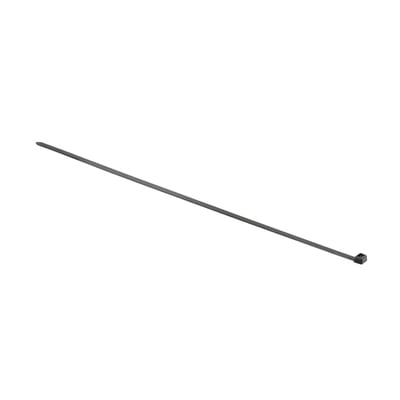

Schneider Electric Cable tie, Thorsman installation material, 550X8.8MM, black IMT46427
