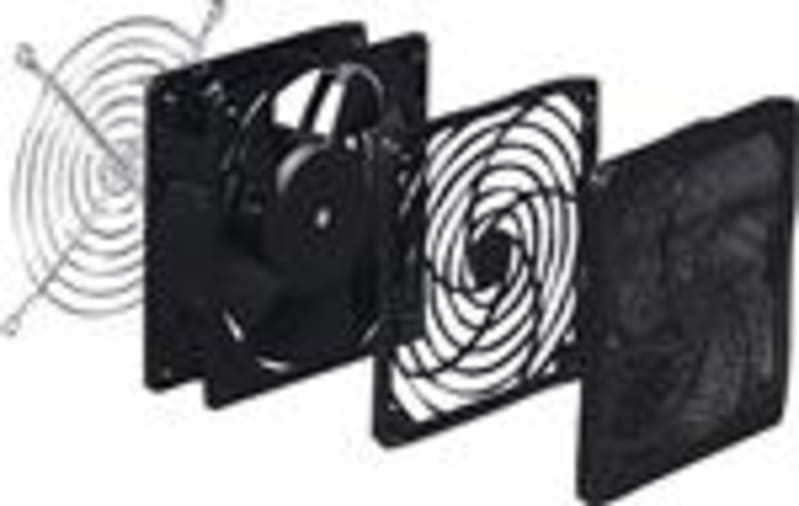

Schneider Electric Climasys forced vent. 65 M3/hour, 115V, with outlet grille plastic and filter NSYCVF65M115PF
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCVF65M115PF FILTER FAN 65M3/H 115V BLACK, ClimaSys.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCVF65M115PF
- EAN / GTIN
- 3606480151385
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 115 V
- Flow rate
- 65 m³/h
- Range
- ClimaSys
- Product name
- ClimaSys CV
- Product or component type
- Fan
- Type of filter
- Standard
- Input voltage
- 115 V 50/60 Hz
- Height
- External: 124 mm
- Width
- External: 124 mm
- Depth
- External : 55 mm
- Cut-out dimensions
- Ø 108 mm
- Material
- Outlet grille: ABS (acrylonitrile butadiene-styrene); Filter: polyurethane foam
- Colour
- Outlet grille: black; Filter: black
- IP degree of protection
- IP20
- Device composition
- 1 axial motor; 2 protective grille: on the front and rear surfaces; 1 filter: front of axial motor; 1 outlet grille: front
- Country of origin
- CN
- Warranty (in months)
- 18
- Mounting method
- Screw mounting
- RAL-number
- 9005
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- No
- Number of fans
- 1
- EMC-version
- No
- Degree of protection (IP)
- IP20
- With protective cover
- Yes
- With filter
- Yes
- Rated power
- 22 W
- Roof fan
- No
- Built as slide-in fan
- Yes
- Volume flow, freeblowing
- 65 m³/h
- Air circulator
- Yes
- Suitable for wall built-in
- No
- Noise emission
- 50 dB(A)
Standards & Compliance
- HS Code
- 8414.59
Cross References
- EAN 3606480151385
- SAP 1000089066
- Code 8881798
Product Documentation
More from Schneider Electric
Schneider Electric
Kirk Lock Mounting Set for MTZ2
LV847517SP
Schneider Electric
Schneider Electric braking resistor - IP 20 - 28 Ohm - 200 W VW3A7703
Schneider Electric
Schneider Electric Cable tie, Thorsman installation material, 550X8.8MM, black IMT46427
Schneider Electric

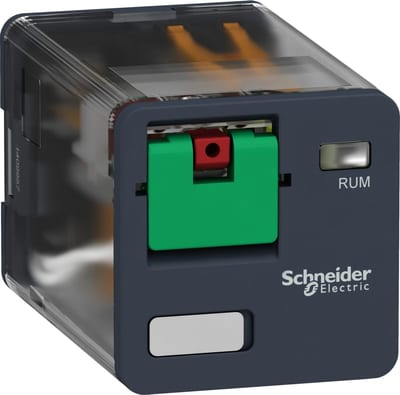

Schneider Electric universal plug-in relay - Harmony RUM - 2 C/O - 230 V AC - 10 A RUMC21P7
Schneider Electric

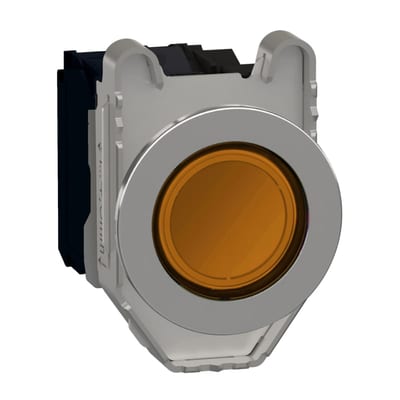

Schneider Electric Illuminated push button, Harmony XB4, metal, orange flush mounted, 30mm, universal LED, plain lens, 1NO + 1NC, 120V AC XB4FW35G5
Schneider Electric

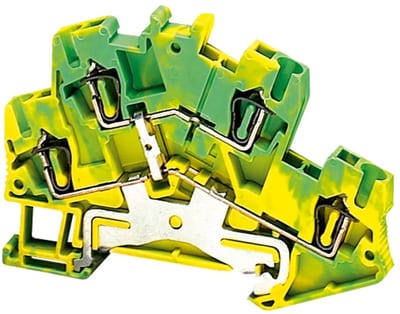

Terminal block, spring 2.5mm² PE 4P 2-Tier
