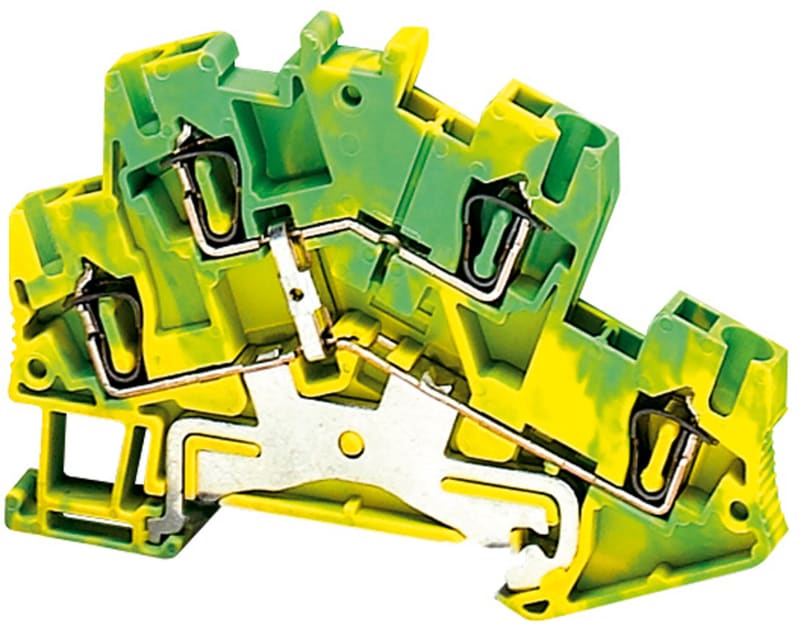

Terminal block, spring 2.5mm² PE 4P 2-Tier

Schneider Electric NSYTRR24DPE Terminal block spring 2,5mm² PE 4p 2-tier

Manufacturer part number (MPN)

NSYTRR24DPE

EAN / GTIN

3606480532641

Sales unit

pcs

Package quantity

50 pcs

Conductor cross-section

2.5 mm²

Range

Linergy

Product name

Linergy TR

Product or component type

Terminal block

Device short name

TRR

Terminal block type

Protective earth

Terminal block level

2

mounting mode

Clip-on

Nominal cross section

2.5 mm²

Length

78 mm

Colour

Green-yellow

Quantity per set

Set of 50

Width

5.2 mm

Height

55 mm

Connections - terminals

1 x spring terminal: upstream; 1 x spring terminal: downstream

number of connections

2

Connection position

Top

Number of measurement input

4

Cable cross section

0.08…4 mm², solid; 0.2…2.5 mm², flexible with cable end; 0.08…2.5 mm², flexible without cable end

Wire stripping length

10 mm

Tool type

Connection: flat screwdriver; Disconnection: flat screwdriver

Material

Polyamide 6/6: insulating case

Dielectric loss

0.01 at 1 MHz conforming to IEC 60250; 0.01 at 1 MHz conforming to VDE 0303-T4

Dielectric constant

3.7 at 1 MHz

Resistivity

10000 MΩ.m conforming to IEC 60093; 10000 MΩ.m conforming to VDE 0303-T30

Surface resistance

1000 GΩ conforming to IEC 60093; 1000 GΩ conforming to VDE 0303-T30

Creep resistance

500 CTI (> 400 kB) conforming to IEC 60093; 500 CTI (> 400 kB) conforming to VDE 0303-T30

Flame retardance

V0, thickness0.8 mm conforming to UL 94

Product weight

16.8 g

Range compatibility

PrismaSeT P; PrismaSeT G; PrismaSet HD; PrismaSeT Pack 250; PanelSeT; Mureva; PrismaSeT XS; TeSys

Product compatibility

Spacial enclosures

Product certifications

CSA; VDE; GL; DNV; UL

Dielectric strength

1000 V conforming to IEC 60243-1

Ambient air temperature for operation

-40…130 °C conforming to IEC 60216-1; -40…130 °C conforming to VDE 0304-T21

Number of Units in Package 1

1

Number of Units in Package 2

50

Number of Units in Package 3

400

Country of origin

DE

Warranty (in months)

18

PEN function possible

No

Connectable conductor cross section solid-core

0.08–4 mm²

Connectable conductor cross section multi-wired

0.08–2.5 mm²

Type of electrical connection 1

Spring clamp connection

Type of electrical connection 2

Spring clamp connection

Number of levels

2

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 35 mm

Material insulation body

Thermoplastic

Operating temperature

-40–130 °C

Width/grid dimension

5.2 mm

Depth

78 mm

Closing plate required

Yes

HS Code

8536.90
