Schneider Electric XACB220 Harmony XAC Pendant Control Station, 2 Push Buttons, 20 A

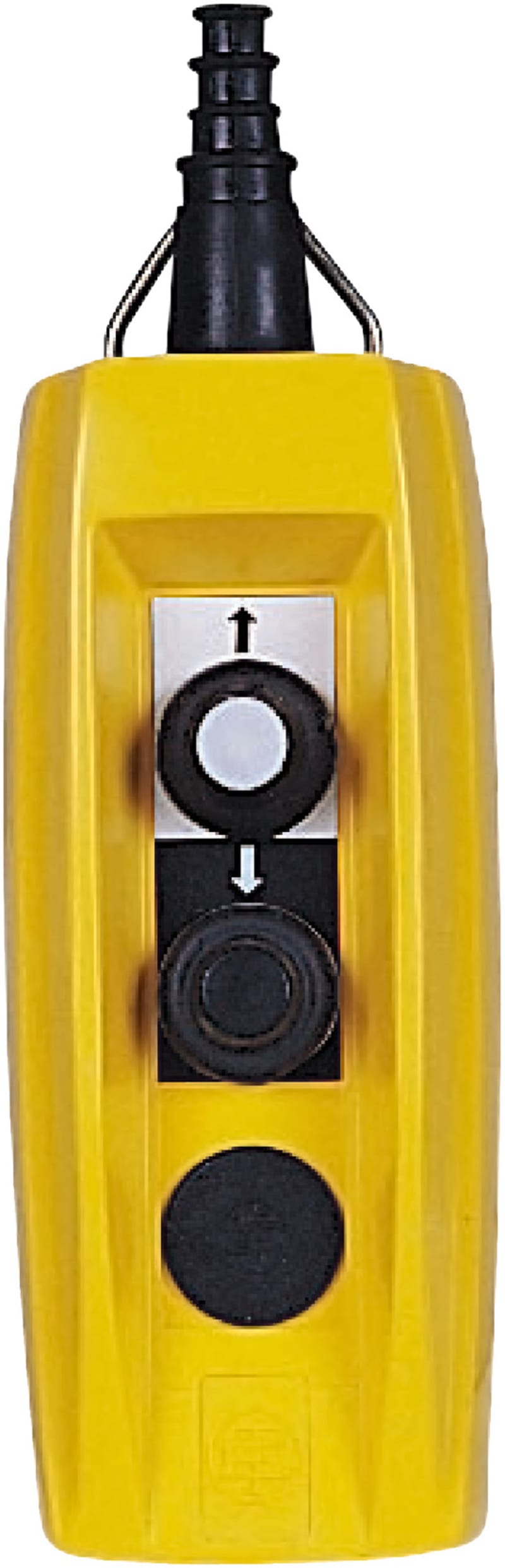

Schneider Electric XACB220 is a Harmony XAC pendant control station in double-insulated glass-reinforced polyester, configured with two push buttons for single-speed hoist motor control (3-pole raise slow, 3-pole lower slow) with mechanical interlocking. The yellow enclosure is rated IP65 to IEC 60529 with 20 A conventional thermal current and screw-clamp terminals for up to 2 by 1.5 mm² conductors. Cable entry accepts 7 to 13 mm cables via a stepped rubber sleeve, and the assembly is compatible with the XESD2201 reversing contactor. Ambient service range is -25 to 70 degrees C with 1,000,000-cycle mechanical durability.

Manufacturer part number (MPN)

XACB220

EAN / GTIN

3389110636161

Sales unit

pcs

Package quantity

10 pcs

Power

3 kW

Range of product

Harmony XAC

Product or component type

Pendant control station

Device short name

XACB

Control station type

Double insulated

Enclosure material

Glass reinforced polyester

Electrical circuit type

Power circuit

enclosure type

Complete ready for use

Control station application

Control of single speed hoist motor

Control station composition

2 push-buttons

Control button type

First push-button 3-pole raise, slow; Second push-button 3-pole lower, slow

Product compatibility

XESD2201 for reversing operation

Mechanical interlocking

With mechanical interlocking

Control station colour

Yellow

Connections - terminals

Screw clamp terminals, 1 x 2.5 mm² with or without cable end; Screw clamp terminals, 2 x 1.5 mm² with or without cable end

Standards

IEC 60947-5-1; IEC 60204-32; CSA C22.2 No 14

Product certifications

CSA type 4

Protective treatment

TH

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

100 gn conforming to IEC 60068-2-27

Overvoltage category

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

Mechanical durability

1000000 cycles

Cable entry

Rubber sleeve with stepped entry 7…13 mm

[Ithe] conventional enclosed thermal current

20 A

[Ui] rated insulation voltage

500 V (pollution degree 3) conforming to IEC 60947-1; 300 V conforming to CSA

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Contact operation

Snap action

Operating force

32 N push-button

Short-circuit protection

12 A fuse protection by cartridge fuse type aM

Rated power in hp

3 hp at 240 V

Rated operational power in W

3000 W at 240 V; 3000 W at 400 V

Electrical durability

1000000 cycles AC-3, 3000 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 1000000 cycles AC-4, 3000 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 700000 cycles AC-3, 3000 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 700000 cycles AC-4, 3000 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A

Terminals description ISO n°1

(13-14)NO; (23-24)NO; (63-64)NO; (53-54)NO; (73-74)NO; (33-34)NO

Terminal identifier

(11-12)NC; (13-14)NO

Product weight

0.355 kg

Number of Units in Package 1

1

Number of Units in Package 2

10

Warranty (in months)

18

Width

85 mm

Height

265 mm

Depth

74.5 mm

Number of command positions

2

Colour housing cover

Yellow

Suitable for emergency stop

No

Housing material

Plastic

Number of speeds

1

Type of executable motions

Transport - hoist

Degree of protection (IP)

IP65

Country of origin

Czechia

HS Code

8537.10
