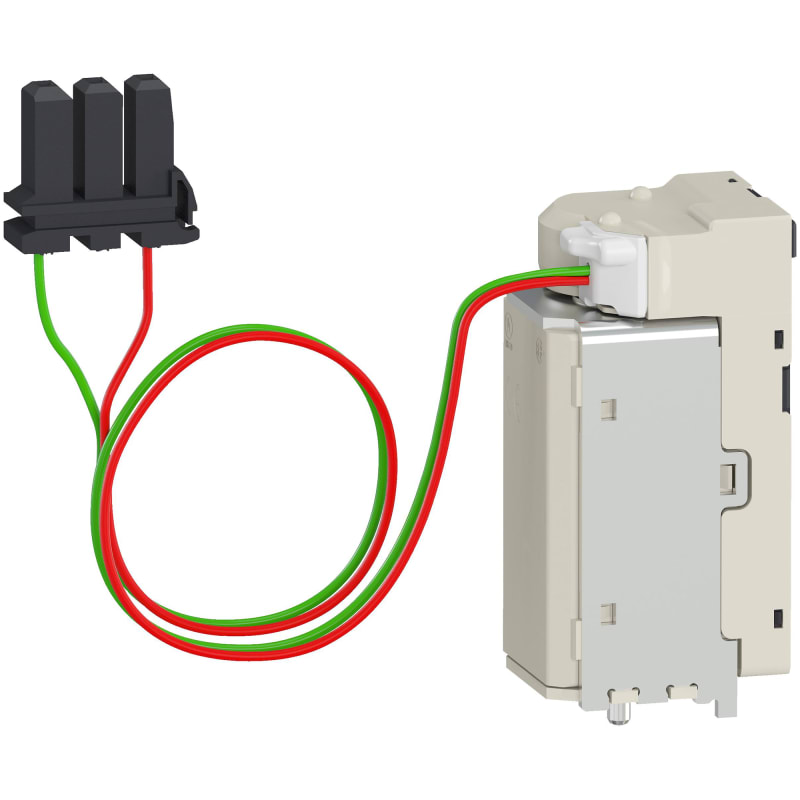

COIL XF 200/250VDC AC FOR Drawout MTZ1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV847443 Innsploe XF 200/250VAC/DC for Masterpact circuit breaker MTZ1 withdrawable.
Technical Specifications
- Manufacturer part number (MPN)
- LV847443
- EAN / GTIN
- 3606480815546
- HS code
- 8536.90
- Sales unit
- pcs
- Compatible with
- DRAWOUT MTZ1
- Range
- MasterPact
- Device short name
- XF
- Product or component type
- Voltage release
- Device application
- Control
- Range compatibility
- Masterpact MasterPact MTZ1 circuit-breaker
- Voltage release type
- Closing coil
- Control type
- Standard
- [Un] voltage power supply
- 200...250 V AC 50/60 Hz; 200...250 V DC
- Threshold tripping voltage
- 0.85...1.1 Un on closing
- Holding power consumption
- 4.5 W
- Circuit breaker mounting mode
- Drawout
- Maximum response time
- 65 ms on closing for MasterPact MTZ1
- Number of Units in Package 1
- 1
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480815546
- SAP 1200498278
- Code 82621659
Product Documentation
More from Schneider Electric
Schneider Electric
RAIL 63A 3M 6 Outlet + BUS
KNT63ED4306
Schneider Electric
Schneider Electric XACB220 Harmony XAC Pendant Control Station, 2 Push Buttons, 20 A
Schneider Electric
Schneider Electric ClimaSys PTC heating resistance 100W,270-420V insulate NSYCR100WU3C
Schneider Electric
Schneider Electric set of 2 PanelSeT SF side plates of the centred fixed rack - 1200X800 mm NSYRC12
Schneider Electric
Schneider Electric Trip unit MicroLogic 6.2EM, ComPacT NSX100-250, 3 poles, basic and ground fault protections, motor, energy meter, 80A C1036M080
Schneider Electric
Schneider Electric electric motor MCH, MasterPact MTZ1, spare part, 48/60 V DC, 48 V AC 50/60 Hz LV833186SP
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100HB1, 75KA/690VAC, 3 poles, MicroLogic 2.2M trip unit 50A C10V32M050
Schneider Electric

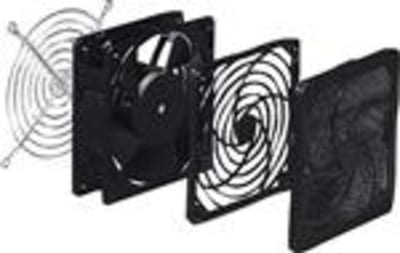

Schneider Electric Climasys forced vent. 65 M3/hour, 115V, with outlet grille plastic and filter NSYCVF65M115PF
