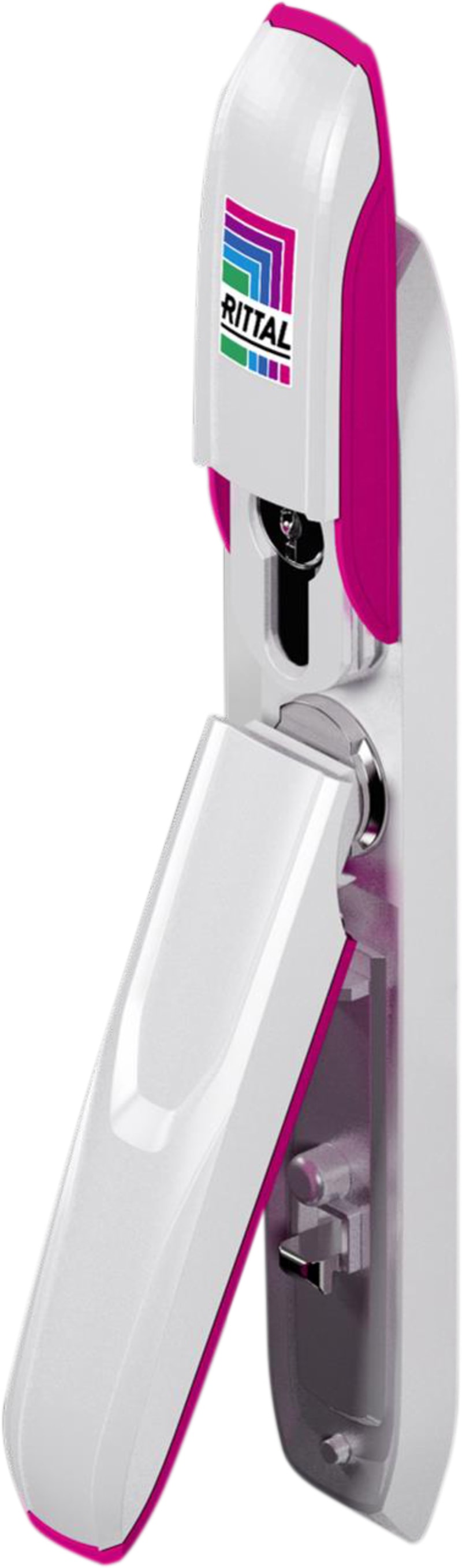

Rittal 2435100 AX Comfort Handle for Lock Inserts and Semi-Cylinders
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal SZ 2435.100 is a comfort handle for AX enclosures fitted with the three-point locking rod. It is prepared for version A lock inserts and semi-cylinders 40 mm or 45 mm total length per DIN 18 252, and also accepts safety and push-button lock inserts of 40 mm length. The body is die-cast zinc with a powder-coated RAL 7035 finish and is compatible with AX, TE, TP pedestal and TX CableNet enclosures. UL 50E Type 1 and Type 12 ratings apply.
Technical Specifications
- Manufacturer part number (MPN)
- 2435100
- EAN / GTIN
- 4028177938168
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Model designation
- AX 2435.100
- Product type
- Comfort Handle AX
- Version
- For lock inserts and semi-cylinder
- Material
- Die-cast zinc
- Surface finish
- Powder-coated
- Color
- RAL 7035
- Lock
- Lock version: Prepared for version A lock inserts, installation of semi-cylinders 40 or 45 mm total length (according to DIN 18 252) or safety and push-button lock inserts with a length of 40 mm
- Suitable for enclosure type
- AX with 3-point lock system; TE; TP pedestals; TX CableNet
- Type rating according to UL 50E
- Type 1; Type 12
- Packaging unit
- 1 pc(s).
- Net weight
- 0.56 kg
- Gross weight
- 0.58 kg
- Customs tariff number
- 83024110
- ETIM 9
- EC000327
- ETIM 8
- EC000327
- ECLASS 8.0
- 27409217
- Padlock locking
- No
- Toggle
- No
- Espagnolette locking (3-point locking)
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8302.41
Cross References
- EAN 4028177938168
- SAP 1200380097
- Code 82405158
Product Documentation
