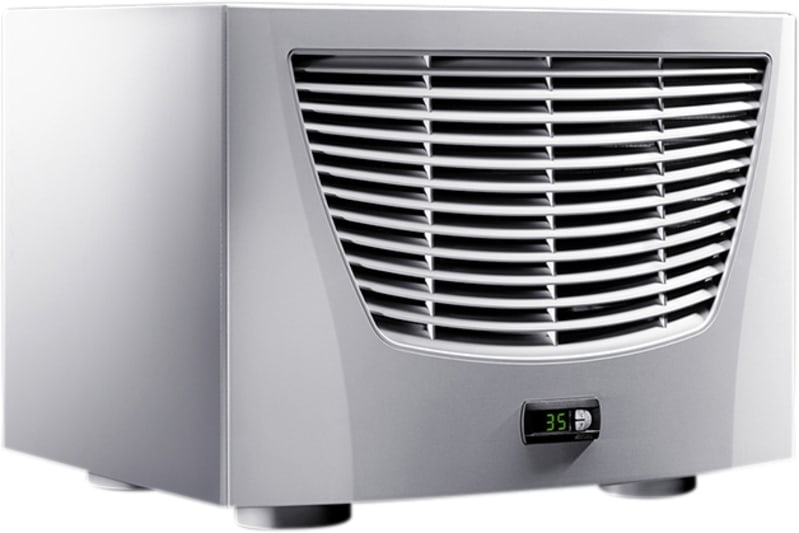

refrigeration unit 2000W f.Ceilingmont.

Rittal 3385500 Manufacturer description: SK cooling unit Blue e, roof-mounted, 6824 BTU/h, 230 V, 1~, 50/60; Hz, carbon steel, WHD: 597 x 417 x 475 mm. Cooling unit 2000W for ceiling mounting.

Manufacturer part number (MPN)

3385500 EAN / GTIN: 4028177323278 Sales unit: pcs Model designation: SK 3385.500 Product type: TopTherm Blue e Roof-Mounted Version: roof-mounted material: Carbon steel Color: RAL 7035 Supply includes: Condenser with hydrophobic RiNano coating; Integral electric condensate evaporation; Wired ready for connection (plug-in terminal strip); Drilling template; Fasteners Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz Air throughput (unimpeded air flow): External circuit: 1,760 m³/h; Internal circuit: 470 m³/h; External circuit: 1,035.9 cfm; Internal circuit: 276.6 cfm Energy efficiency ratio (EER) 50/60: Refrigeration factor L35 L35 (EER) 50 Hz: 1.96 Hz L35 L35: Refrigeration factor L35 L35 (EER) 60 Hz: 1.69 Dimensions: Width: 597 mm; Height: 417 mm; Depth: 475 mm Protection category IP to EN 60 529: External circuit, IP 34; Internal circuit, IP 54 Refrigerant/cooling medium: Refrigerant: R-513A; Quantity: 0.9 kg; Global Warming Potential (GWP): 631; CO2 equivalent (CO2e): 0.57 t; Refrigerant: R-513A; Quantity: 2 lb. Type of connection (electrical): Plug-in terminal strip Duty cycle: 100 % Temperature control: e-Comfort Controller (factory setting +35 °C) Operating temperature range: 10 °C...55 °C; 50 °F...131 °F Operating temperature max @60: 53 °C Hz: 127 °F Storage temperature range: -40 °C...70 °C; -40 °F...158 °F Setting range: 20 °C...53 °C; 68 °F...127 °F Rated power Pel: Rated power L35 L35/50 Hz: 1.02 kW; Rated power L35 L35/60 Hz: 1.27 kW; Rated power L35 L50/50 Hz: 1.15 kW; Rated power L35 L50/60 Hz: 1.29 kW Permissible operating pressure (p. max.): 28 bar; 406.1 PSI Packaging unit: 1 pc(s). Net weight: 50 kg Gross weight: 51.7 kg Customs tariff number: 84158200 ETIM 9: EC000855 ETIM 8: EC000855 ECLASS 8.0: 27180704 Approvals: UL + C-UL (listed); UL + C-UL - FTTA Width: 597 mm Height: 417 mm Depth: 475 mm Voltage type: AC With heating function: No With temperature control: Yes Function master/slave: Yes Ambient temperature during operating: 10–55 °C Operating voltage AC 50 Hz: 207–253 V Operating voltage AC 60 Hz: 207–253 V Total cooling capacity according to EN 14511 at 35/35 °C: 2000 W Speed-regulated: No Country of origin: Italy

HS Code

8415.82

• EAN 4028177323278
• SAP 1000337166
• Code 8964903
