Rittal 2564300 SZ Plastic Gland Plate with Membranes for AX, Size 4, 534x149 mm
Pricing
Request a quote
We reply within 24 hours
Product Description

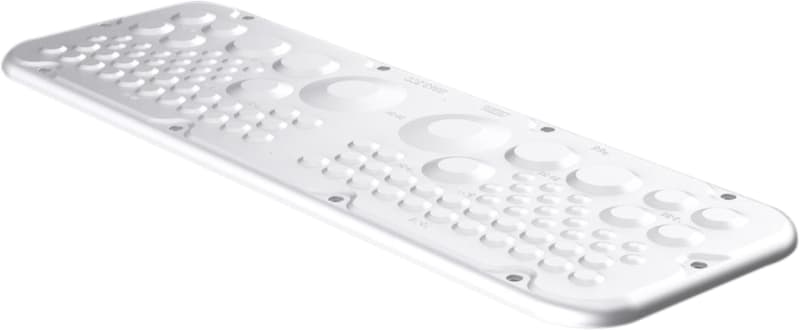

The Rittal 2564300 is an SZ plastic gland plate for the AX enclosure series, size 4, measuring 534 x 149 mm with 28 pre-formed membrane entries for cable diameters 5–11 mm. Moulded from UL 94-V0 plastic in a colour similar to RAL 7035, it maintains IP 66 and UL Type 1/12 protection when correctly installed. The plate is suitable for PG-threaded glands where individual sealed entries are required.
Technical Specifications
- Manufacturer part number (MPN)
- 2564300 EAN / GTIN: 4028177935723 Sales unit: pcs Package quantity: 25 pcs Model designation: SZ 2564.300 Product type: Plastic Cable Gland Plates material: Plastic to UL 94-V0 Color: Similar to RAL 7035 Dimensions: Width: 534 mm; Depth: 149 mm Gland plate: Size: 4 Protection category IP to EN 60 529: IP 66 if correctly installed Type rating according to UL 50E: Type 1; Type 12 Quantity of cable entries and Ø: 28 x 5-11 Packaging unit: 1 pc(s). Net weight: 0.7 kg Gross weight: 0.736 kg Customs tariff number: 39269097 ETIM 9: EC000211 ETIM 8: EC000211 ECLASS 8.0: 27142421 Approvals: UL + C-UL - FTTA Width: 534 mm Depth: 149 mm Surface protection: Untreated Pre-stamping: No Thread type: PG Number of connector holes: 80 Country of origin: Finland
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4028177935723
- SAP 1200380132
- Code 82389424
