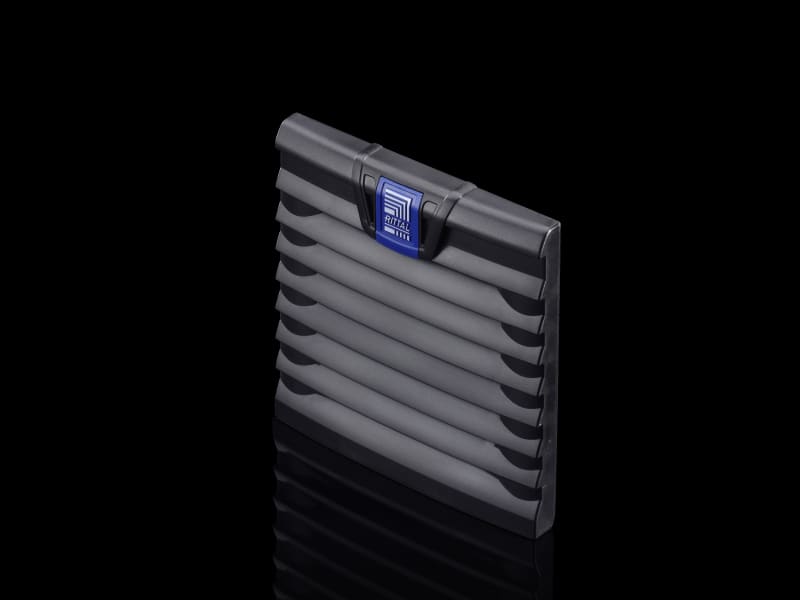

Rittal 3237208 Outlet Filter for SK 3237.1xx RAL 9005
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal SK 3237.208 is an outlet filter in ABS (RAL 9005) mounted opposite a filter fan on control cabinets in the SK 3237.1xx series to establish convection-driven venting through the enclosure. It ships with a chopped-fibre filter mat and reaches IP54 with the fleece filter, IP56 with fleece filter and hose-proof hood, and NEMA Type 12/3/3R accordingly. It is a standard outfitting item for industrial enclosures.
Technical Specifications
- Manufacturer part number (MPN)
- 3237208
- EAN / GTIN
- 4028177663435
- Sales unit
- pcs
- Model designation
- SK 3237.208
- Product type
- Outlet Filters
- Material
- ABS
- Color
- RAL 9005
- Supply includes
- Outlet Filters; Chopped fiber filter mat
- Mounting cut-out
- Width of opening: 92 mm; Cut-out height: 92 mm
- Suitable for Model No.
- SK 3237.1xx
- Dimensions
- Width: 116.5 mm; Height: 116.5 mm; Depth: 16 mm
- Protection category NEMA
- Type 12 with fleece filter; Type 3; Type 3R with fleece filter and hose-proof hood
- Protection category IP to IEC 60 529
- IP 54 with fleece filter; IP 56 with fleece filter and hose-proof hood
- Packaging unit
- 1 pc(s).
- Net weight
- 0.13 kg
- Gross weight
- 0.14 kg
- Customs tariff number
- 39269097
- ETIM 9
- EC002513
- ETIM 8
- EC002513
- ECLASS 8.0
- 27180706
- Approvals
- UL + C-UL - FTTA; UR + C-UR (recognized)
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4028177663435
- SAP 1200596679
- Code 82973225
Product Documentation
