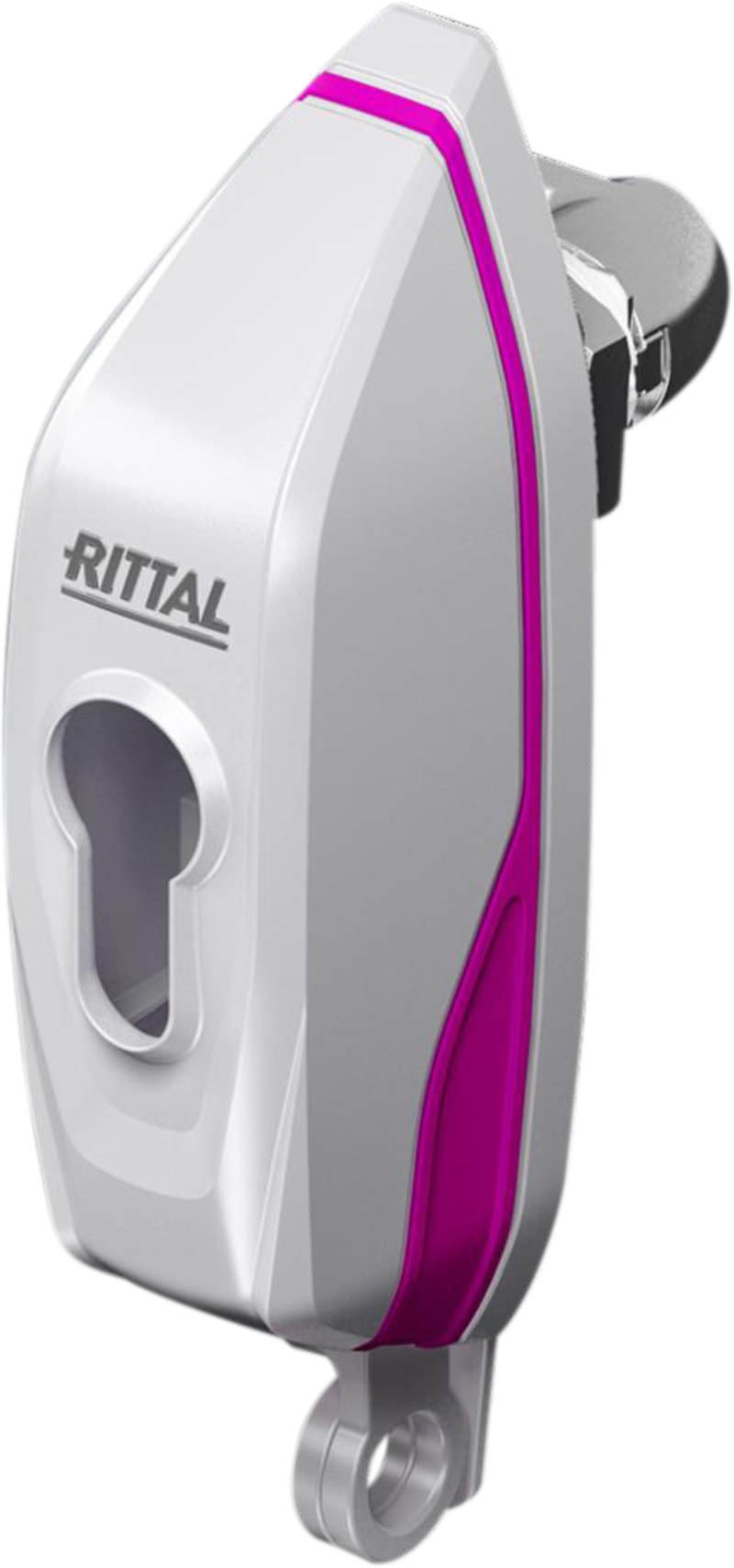

Rittal AX 2537.100 Mini Comfort Handle for AX and KX Enclosures

Rittal 2537100 is an AX Mini Comfort Handle prepared for lock inserts or semi-cylinders 40 or 45 mm to DIN 18 252. The body is die-cast zinc with plastic components, powder-coated RAL 7035, and includes a cam for engaging the enclosure catch. It fits AX enclosures with cam lock, AX IT, KX E-Box, VX partial door, and CX consoles, meeting UL Type 1, 3R, 4, and 12.

Manufacturer part number (MPN)

2537100

EAN / GTIN

4028177938342

Sales unit

pcs

Package quantity

30 pcs

Model designation

AX 2537.100

Product type

Mini-Comfort Handle AX

Version

For lock inserts and semi-cylinder

Material

Die-cast zinc; Plastic

Surface finish

Powder-coated

Color

RAL 7035

Lock

Lock version: Prepared for version A lock inserts, installation of semi-cylinders 40 or 45 mm total length (according to DIN 18 252) or safety and push-button lock inserts with a length of 40 mm

Suitable for enclosure type

AX with cam lock, carbon sheet; AX IT with cam lock; KX E-Box; VX partial door; CX One-Piece Console; CX console; CX Desk Unit

Type rating according to UL 50E

Type 1; Type 3R; Type 4; Type 12

Packaging unit

1 pc(s).

Net weight

0.29 kg

Gross weight

0.3 kg

Customs tariff number

83024110

ETIM 9

EC000327

ETIM 8

EC000327

ECLASS 8.0

27189266

Approvals

DNV; UL + C-UL - FTTA

Padlock locking

No

Toggle

No

Espagnolette locking (3-point locking)

No

Country of origin

Germany

HS Code

8302.41

• EAN 4028177938342
• SAP 1200380010
• Code 82391354
