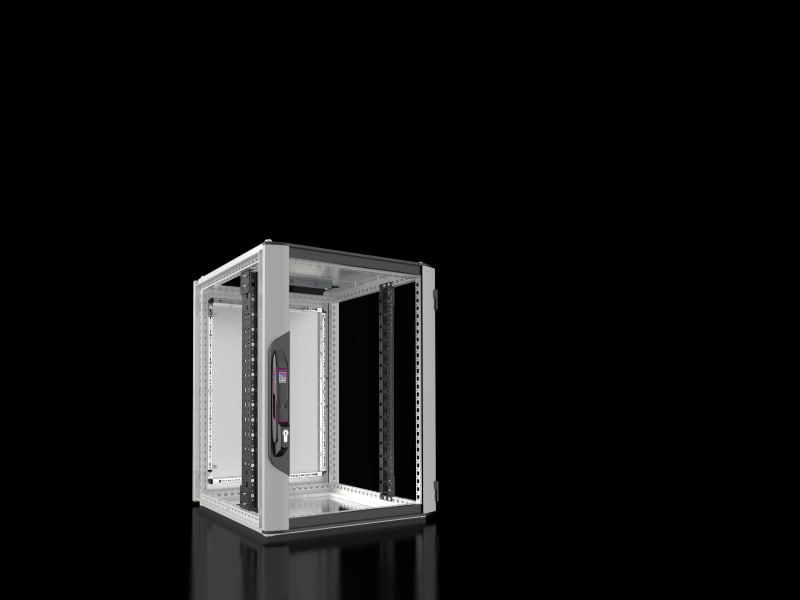

VX IT std 600X800X600

Rittal 5325121 Manufacturer description: VX IT, 19" mounting angles, standard, front, glazed door, WHD: 600 x; 800 x 600 mm, 15 U. VX IT, solid, 19 "mounting brackets standard, RAL7035, WHD 600x800x600mm, 15U.

Manufacturer part number (MPN)

5325121

EAN / GTIN

4028177945418

Sales unit

pcs

Model designation

VX 5325.121

Product type

Network/server rack VX IT

Material

Sheet steel; Aluminium; Glazed door: Single-pane safety glass

3 mm; Front door

Aluminium

1.25 mm; Rear door

Sheet steel, 1.5 mm

Surface finish

Enclosure frame: Dipcoat-primed; Interior installation: Spray-finished; Rear door and roof: Dipcoat-primed, powder-coated; Front door: Aluminium, anodised/spray-finished

General colour

RAL 7035

Colour

Enclosure frame, rear door and roof: RAL 7035; Front door: Vertical sections, silver coloured and horizontal sections

RAL 9005; Interior installation

RAL 9005; Handle and hinges: RAL 9005

Supply includes

VX enclosure frame with doors and roof plate; Glazed aluminium door at the front

180° hinges; Lock front and rear

Comfort handle for profile half-cylinders and security lock 3524 E; Mounting angles, 482.6 mm (19"); Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out.; 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose); 25 multi-tooth screws, conductive (supplied loose); IPPC pallet; Roof plate, multi-piece, with horizontal cable entry at the rear and prepared for fan mounting plate; Sheet steel rear door, solid, one-piece, 130° hinges

Dimensions

Width: 600 mm; Height: 800 mm; Depth: 600 mm

Units

15 U

Design

Standard

Roof design

multi-piece, with horizontal cable entry at the rear and prepared for fan mounting plate

Rear door design

Sheet steel door, solid, one-piece, 130° hinges

Front door design

Glazed aluminium door, solid, one-piece, 180° hinges

Mounting angle design

482.6 mm (19") mounting angles, standard in the VX IT

Base design

Open

Mounting angles position

482.6 mm (19") level, front

Load capacity

7,500 N

IK Code

IK08

Basic material

Sheet steel

Net weight

40 kg

Gross weight

42 kg

PCF per pack (cradle-to-gate)

103.5 kg CO2 eq (Cat B)

Note on PCF category

Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared

Customs tariff number

94032080

ETIM 9

EC002499

ECLASS 8.0

27180207

Certificates

Negative Certificate; Surface finish

Approvals

UL + C-UL (listed)

Mounting level

Front and rear

Type of profile rail

L-shape

Number of doors

2

Type of ventilation

Passive

Width

600 mm

Height

800 mm

Depth

600 mm

Number of height units

15

Max. load capacity

1500 kg

With roof plate

Yes

With earthing

No

With front door

Yes

With sidewall

No

Demountable

No

Surface finishing

Powder coating

RAL-number

7035

Degree of protection (IP)

IP20

Country of origin

Germany

HS Code

9403.20

• EAN 4028177945418
• SAP 1200493148
• Code 82690975
