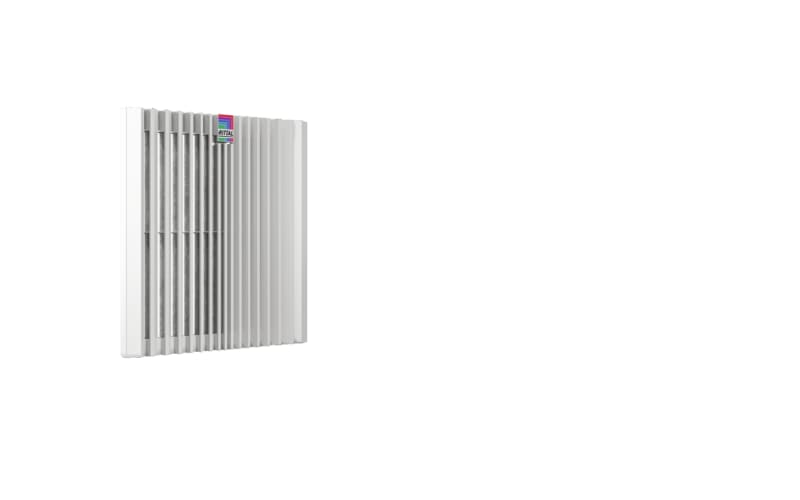

Rittal 3243300 SK Blue e+ Outlet Filter for 3243/3244/3245 Fan Units RAL 7035
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal SK 3243.300 is a Blue e+ outlet filter for wall-mount installation opposite Rittal filter fan-and-filter units 3243.7xx/3243.9xx/3244.7xx/3244.9xx/3245.9xx, RAL 7035, 323 x 323 x 44.7 mm, IP54 with pleated filter. The plastic housing ships with a pleated filter mat and reaches IP56 with hose-proof hood or NEMA Type 12/3/3R/4/4X per configuration. It is a standard cabinet-cooling outfitting accessory.
Technical Specifications
- Manufacturer part number (MPN)
- 3243300
- EAN / GTIN
- 4028177998339
- Sales unit
- pcs
- Model designation
- SK 3243.300
- Product type
- Blue e+ outlet filter
- Version
- wall-mounted
- Material
- Plastic
- Color
- RAL 7035
- Supply includes
- Outlet Filters; Pleated filter
- Mounting cut-out
- Width of opening: 292 mm; Cut-out height: 292 mm
- Suitable for Model No.
- SK 3243.7xx/3243.9xx/3244.7xx/3244.9xx/3245.9xx
- Dimensions
- Width: 323 mm; Height: 323 mm; Depth: 44.7 mm
- Protection category NEMA
- Type 12 with chopped fiber filter/pleated filter; Type 3, 3R, 4, 4X with chopped fiber filter/pleated filter and hose-proof hood
- Protection category IP to IEC 60 529
- IP 54 with chopped fiber filter/pleated filter; IP 55 with pleated filter and absorber mat; IP 56 with chopped fiber filter/pleated filter and hose-proof hood
- Packaging unit
- 1 pc(s).
- Net weight
- 0.956 kg
- Gross weight
- 0.956 kg
- Customs tariff number
- 39269097
- ETIM 9
- EC002513
- ETIM 8
- EC002513
- ECLASS 8.0
- 27180706
- Approvals
- CSA; UL + C-UL - FTTA; UR + C-UR (recognized)
- Colour
- Grey
- Width
- 323 mm
- Height
- 323 mm
- Depth
- 44.7 mm
- EMC-version
- No
- With filter mat
- Yes
- Degree of protection (IP)
- IP54
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4028177998339
- SAP 1200740747
- Code 83882278
Product Documentation
More from Rittal
Rittal

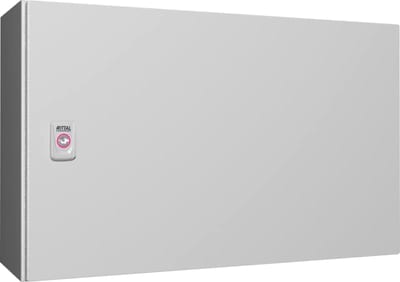

Compact enclosure AX 600X380X210
1039000
Rittal

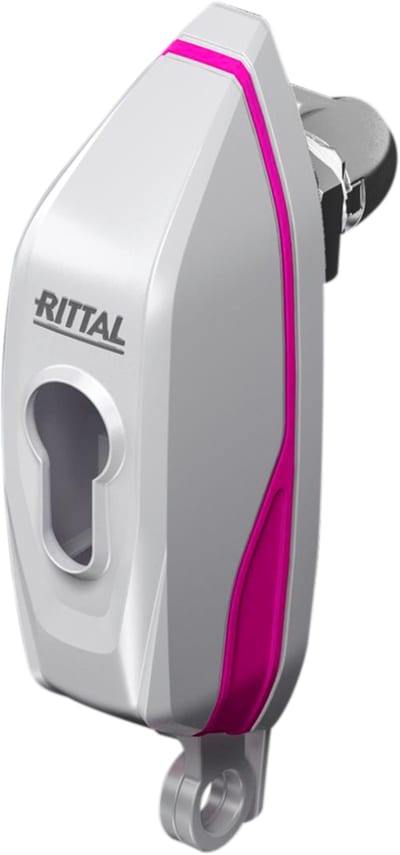

Rittal AX 2537.100 Mini Comfort Handle for AX and KX Enclosures
2537100
Rittal

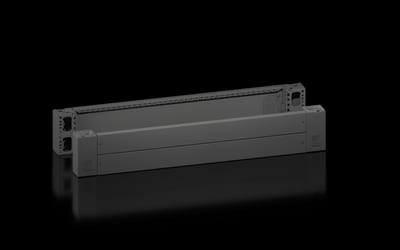

Plinth VX incl. front/rear panel 200X1200
8660025
Rittal

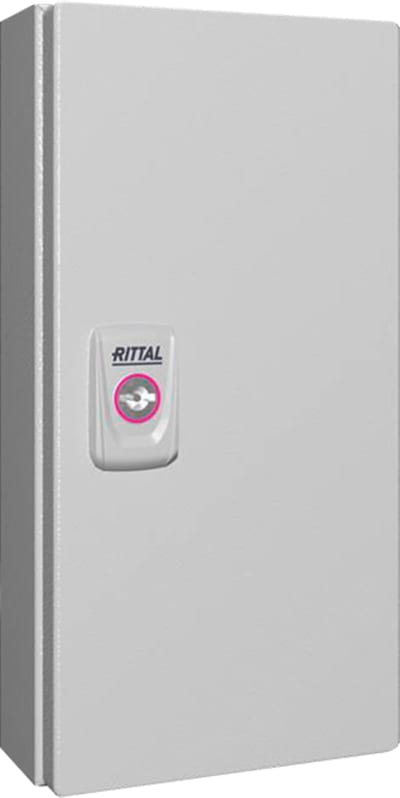

E-box KX 150X300X80 (1545000)
Rittal

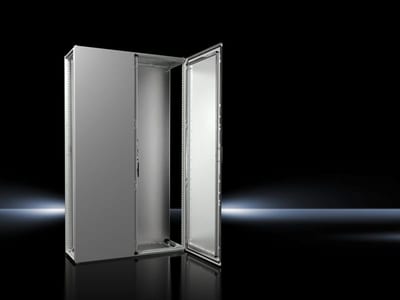

Floor-standing cabinet VX 1200X2000X600
8206000
Rittal
Apparathylle 19'' 2HE 250mm
7119250
Rittal
Jordskcontains Straight (2365000)
Rittal

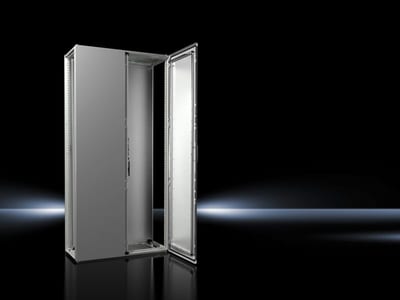

Floor-standing cabinet VX 1000X1800X400 (8084000)
