Rittal 5302202 Cable Entry Panel with Brush Strip 19" 1U RAL 9005
Pricing
Request a quote
We reply within 24 hours
Product Description

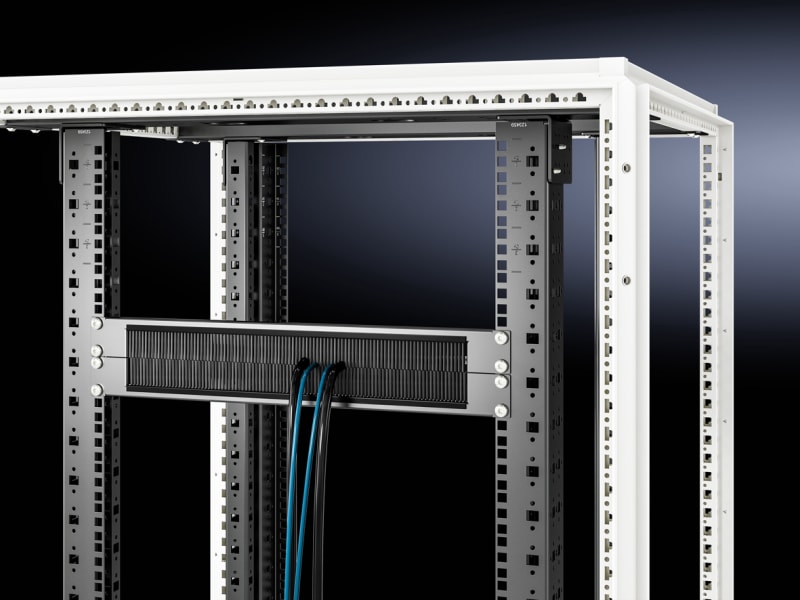

Rittal DK 5302.202 is a 19" (482.6 mm) 1U cable-entry panel with brush strip in RAL 9005, used to seal and route cables into IT and network cabinets while maintaining airflow separation. The carbon-steel panel carries a UL 94-HB, halogen-free plastic brush strip with polyamide fibres. It suits data-centre installations to the 19" mounting standard.
Technical Specifications
- Manufacturer part number (MPN)
- 5302202
- EAN / GTIN
- 4028177952874
- Sales unit
- pcs
- Model designation
- DK 5302.202
- Product type
- Cable entry panel with brush strip
- Applications
- For locking and simultaneous cable routing in installation zones to the 1 U, 482.6 mm (19") mounting standard
- Material
- Carbon steel; Brush strip: Plastic, UL 94-HB, halogen-free; Brush strip fibers: plastic PA6, halogen-free; Fixing body brush strip: plastic PVC, halogenated
- Surface finish
- Spray-finished
- Color
- RAL 9005
- Mounting cut-out
- Width:390 mm; Height:30 mm
- Dimensions
- Width: 482.6 mm
- Height units
- 1U
- Packaging unit
- 1 pc(s).
- Net weight
- 0.2 kg
- Gross weight
- 0.243 kg
- PCF/VE (cradle-to-gate)
- 0.9 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 73269098
- ETIM 9
- EC000322
- ECLASS 8.0
- 27400604
- Suitable for 19 inch mounting
- Yes
- Number of height units
- 1
- Country of origin
- China
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 4028177952874
- SAP 1200493106
- Code 82691123
Product Documentation
