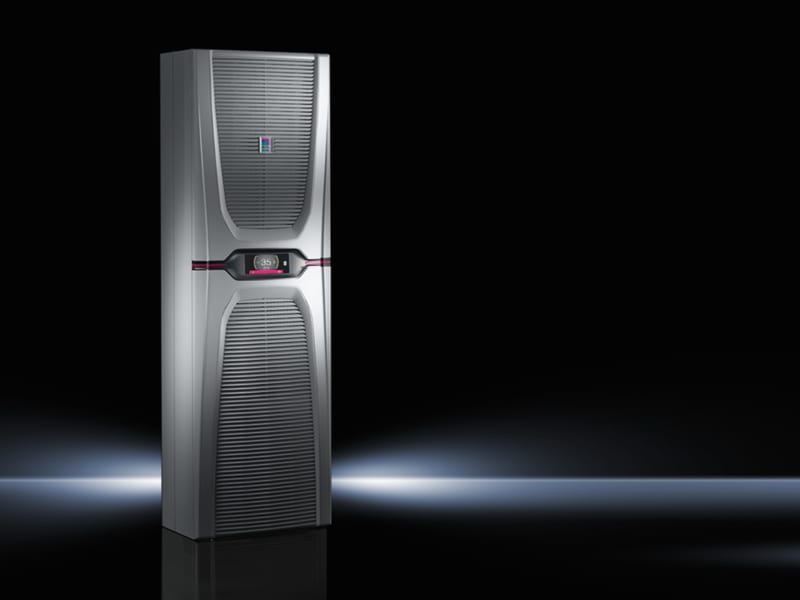

refrigeration unit, wall 4,2 kW

Outstanding energy efficiency thanks to hybrid technology. Manufacturer description: SK Cooling unit Blue e+, wall-mounted, 13648.57 BTU/h 380-480 V, 3~, 50-60 Hz, carbon steel, 63" H x 17.7" W x 15.5" D.

Manufacturer part number (MPN)

3188940 EAN / GTIN: 4028177709591 Sales unit: pcs Model designation: SK 3188.940 Product type: Wall-mounted cooling unit Blue e+ Version: wall-mounted material: Carbon steel Color: RAL 7035 Supply includes: Condenser with hydrophobic RiNano coating; Integral electric condensate evaporation; Assembly components; Wired ready for connection (plug-in terminal strip) Options: For remote monitoring and networking of cooling units and chillers, use the Blue e+ Generation IoT Interface, item number 3124.300.; Increase machine availability and process safety by remote monitoring of device data, condition, and system messages. Rated operating voltage: 380 V - 480 V, 3~, 50 Hz/60 Hz Note on Model No.: Tolerance: 380 V -10% (342 V) and 480 V +5% (509 V); Full internal mounting not possible Rated output: 1.45 kW Air throughput (unimpeded air flow): External circuit: 2,300 m³/h; Internal circuit: 2,300 m³/h; External circuit: 1,353.7 cfm; Internal circuit: 1,353.7 cfm Energy efficiency ratio (EER) 50/60: Refrigeration factor L35 L35 (EER) 50 Hz: 3.08 Hz L35 L35: Refrigeration factor L35 L35 (EER) 60 Hz: 3.08 Seasonal energy efficiency ratio (SEER) 50/60 Hz: 6.5 Dimensions: Width: 450 mm; Height: 1,600 mm; Depth: 393 mm Required mounting cut-out: Width of opening: 433 mm; Cut-out height: 1,579 mm Protection category IP to EN 60 529: Internal circuit IP 55 Protection category NEMA: UL Type 12; UL Type 3R Refrigerant/cooling medium: Refrigerant: R-513A; Quantity: 1.8 kg; Global Warming Potential (GWP): 631; CO2 equivalent (CO2e): 1.14 t; Refrigerant: R-513A; Quantity: 4 lb. Temperature control: e+ controller (factory setting +35 °C) Operating temperature range: -20 °C...60 °C; -4 °F...140 °F Storage temperature range: -40 °C...70 °C; -40 °F...158 °F Operating temperature range of refrigerant circuit (active): 3 °C...60 °C Operating temperature range of heat pipe: -20 °C...45 °C Setting range: 20 °C...50 °C; 68 °F...122 °F Rated power Pel: Rated power L35 L35/50 Hz: 1.3 kW; Rated power L35 L35/60 Hz: 1.3 kW; Rated power L35 L50/50 Hz: 1.28 kW; Rated power L35 L50/60 Hz: 1.28 kW Permissible operating pressure (p. max.): 24 bar; 348.1 PSI Packaging unit: 1 pc(s). Net weight: 72.4 kg Gross weight: 91 kg PCF/VE (cradle-to-gate): 1,168.6 Customs tariff number: 84158200 ETIM 9: EC000855 ETIM 8: EC000855 ECLASS 8.0: 27180704 Approvals: IEC CB; 30 - KC Korea; UL + C-UL (listed); UL + C-UL - FTTA Width: 450 mm Height: 1600 mm Depth: 393 mm Voltage type: AC With heating function: No With temperature control: Yes Function master/slave: Yes Ambient temperature during operating: -20–60 °C Operating voltage AC 50 Hz: 99–528 V Operating voltage AC 60 Hz: 99–528 V Total cooling capacity according to EN 14511 at 35/35 °C: 4200 W Speed-regulated: No Cooling air flow rate: 0–2300 m³/h Country of origin: Italy

HS Code

8415.82

• EAN 4028177709591
• SAP 1000744240
• Code 8425689
