Rittal

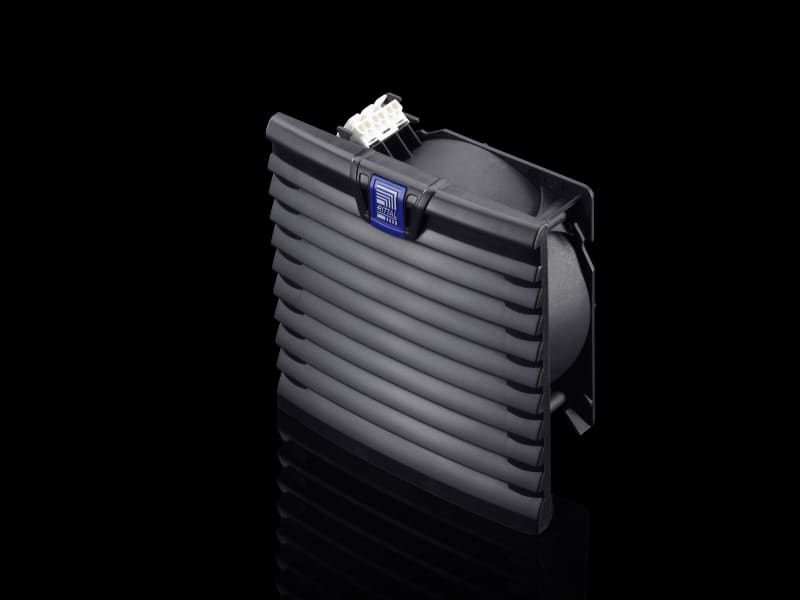

Filter Fans 55M³/h 230V RAL 9005
Part number3238108EAN / GTIN4028177663442HS code8414.59
Enclosures
Enclosure Cooling
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 3238108 Manufacturer description: SK Fan-and-filter unit TopTherm, 30.6/37.1 cfm 230 V, 1~, 50/60 Hz, WHD: 148.5 x 148.5 x 16 mm. Complete fan unit for mounting on flater without tool. Lufteffekt on 20 - 900 m³/h, IP 54.
Technical Specifications
- Manufacturer part number (MPN)
- 3238108
- EAN / GTIN
- 4028177663442
- Sales unit
- pcs
- Model designation
- SK 3238.108
- Product type
- TopTherm Filter Fan Units
- Version
- wall-mounted
- Product changes
- Since May 2024, the cover for the connection terminal is no longer part of the TopTherm filter fan. During testing, it was found not to be required by the standards and does not impair function or operational safety.
- Color
- RAL 9005
- Supply includes
- Complete unit ready to install, including chopped fiber filter mat
- Fan
- Axial, shaded pole motor
- Unimpeded air flow (with pleated filter)
- At 50 Hz: 63 m³/h; At 60 Hz: 70 m³/h; At 50 Hz: 37.08 cfm; At 60 Hz: 41.2 cfm
- Unimpeded air flow (with chopped fiber filter)
- At 50 Hz: 52 m³/h; At 60 Hz: 63 m³/h; At 50 Hz: 30.6 cfm; At 60 Hz: 37.1 cfm
- Rated operating voltage
- 230 V, 1~, 50 Hz/60 Hz
- Rated power Pel
- At 50 Hz: 15 W; At 60 Hz: 14 W
- Dimensions
- Width: 148.5 mm; Height: 148.5 mm
- Installation depth
- 58.5 mm
- Mounting cut-out
- Width of opening: 124 mm; Cut-out height: 124 mm
- Protection category IP to IEC 60 529
- IP 54 with chopped fiber filter/pleated filter; IP 56 with chopped fiber filter/pleated filter and hose-proof hood
- Protection category NEMA
- Type 12 with chopped fiber filter/pleated filter; Type 3; Type 3R; Type 4; Type 4X with chopped fiber filter/pleated filter and hose-proof hood
- Operating temperature range
- -15 °C...55 °C; 5 °F...131 °F
- Storage temperature range
- -30 °C...70 °C; -22 °F...158 °F
- Noise pressure level
- At 50 Hz: 46 dB(A); At 60 Hz: 49 dB(A)
- Packaging unit
- 1 pc(s).
- Net weight
- 0.74 kg
- Gross weight
- 0.9 kg
- Customs tariff number
- 84145915
- ETIM 9
- EC000320
- ETIM 8
- EC000320
- ECLASS 8.0
- 27180716
- Approvals
- UL + C-UL - FTTA; UR + C-UR (recognized)
- Mounting method
- Snap mounting
- Colour
- Black
- Width
- 148.5 mm
- Height
- 148.5 mm
- Depth
- 74.5 mm
- RAL-number
- 9005
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- No
- Number of fans
- 1
- EMC-version
- No
- Degree of protection (IP)
- IP54
- With protective cover
- No
- With filter
- Yes
- Rated power
- 19 W
- Roof fan
- No
- Built as slide-in fan
- No
- Volume flow, freeblowing
- 55 m³/h
- Air circulator
- No
- Suitable for wall built-in
- Yes
- Operating voltage AC 50 Hz
- 207–253 V
- Operating voltage AC 60 Hz
- 207–253 V
- Country of origin
- China
Standards & Compliance
- HS Code
- 8414.59
Cross References
- EAN 4028177663442
- SAP 1200596676
- Code 82973234
Product Documentation
