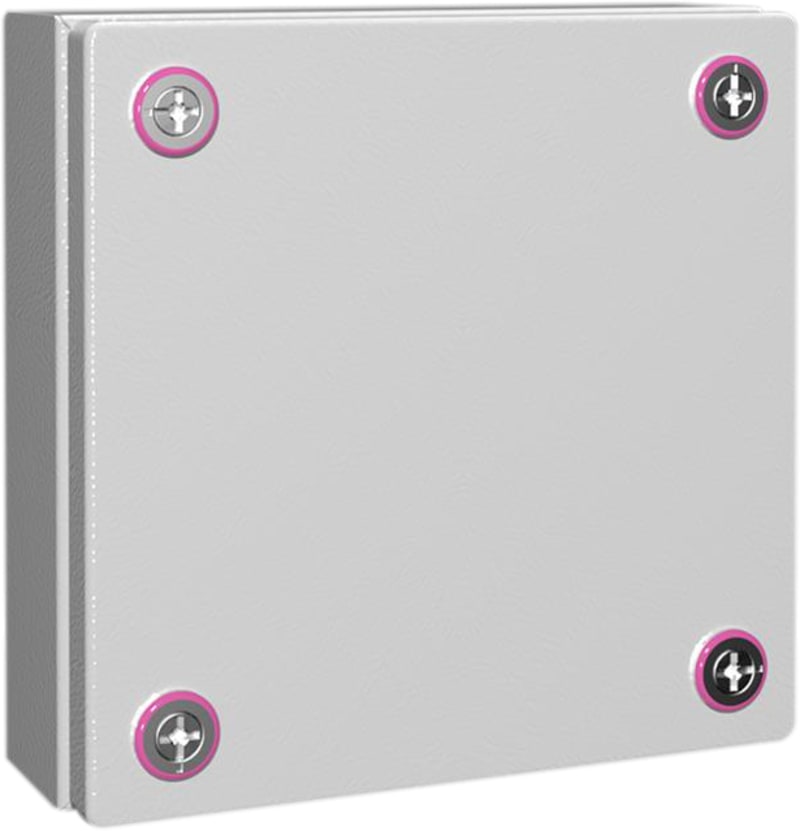

Junction box KX 200X200X80
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 1516000 Manufacturer description: KX Terminal box, WHD: 200x200x80 mm, sheet steel, without mounting plate, with cover, without gland plate. KX Junction box, BHD: 200x200x80 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 1516000
- EAN / GTIN
- 4028177816305
- Sales unit
- pcs
- Model designation
- KX 1516.000
- Material
- Housing: Carbon steel; Cover: Carbon steel, all-round foamed-in PU seal
- Surface finish
- Housing and cover: Dipcoat primed, powder-coated on the outside, textured paint
- Color
- RAL 7035
- Supply includes
- Housing with cover; Mini cam lock
- Protection category NEMA
- NEMA 1; NEMA 3R; NEMA 4; NEMA 12
- Protection category IP to EN 60 529
- IP 66
- Type rating according to UL 50E
- Type 1; Type 3R; Type 4; Type 12
- IK code
- IK08
- Dimensions
- Width: 200 mm; Height: 200 mm; Depth: 80 mm
- Material thickness - cover
- 1.25 mm
- Material thickness - enclosure
- 1.25 mm
- Base material
- Carbon steel
- Packaging unit
- 1 pc(s).
- Net weight
- 1.586 kg
- Gross weight
- 1.795 kg
- PCF/VE (cradle-to-gate)
- 25.78 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 84879059
- ETIM 9
- EC000261
- ETIM 8
- EC000261
- ECLASS 8.0
- 27180101
- Length
- 200 mm
- Width
- 200 mm
- Depth
- 80 mm
- Material plate thickness cabinet
- 1.25 mm
- Mounting method
- Surface mounted
- Extension possible
- No
- Type of inlet
- Gland nut
- Halogen free
- No
- Colour
- Grey
- Degree of protection (IP)
- IP66
- With cover
- No
- Cover attachment
- Snapped on
- With transparent cover
- No
- Sealable
- No
- Rated insulation voltage Ui
- 2500 V
- Circuit integrity
- None
- Impact strength
- IK08
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8487.90
Cross References
- EAN 4028177816305
- SAP 1200365389
- Code 82387701
Product Documentation
More from Rittal
Rittal
Filter Fans EC 55 m³/h
3238500
Rittal
Filter Fans 55M³/h 230V RAL 9005
3238108
Rittal
E-box KX 150X150X80 (1551000)
Rittal
Compact enclosure AX 380X600X210 Rf
1008000
Rittal
Compact enclosure AX 500X500X210 Rf
1007000
Rittal
Rain hood for filter/fan 3239
3239080
Rittal
Rittal 2564300 SZ Plastic Gland Plate with Membranes for AX, Size 4, 534x149 mm
Rittal
Compact enclosure AX 400X500X210 Rf
1015000
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 1516000?
- 1516000 can be ordered from cballast.com as a Rittal catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Rittal product?
- The manufacturer part number is 1516000.
- What is the HS code for 1516000?
- The customs tariff (HS) code for 1516000 is 8487.90.
- Who manufactures 1516000?
- 1516000 is a Rittal product in the Enclosures range.
- Is a datasheet available for 1516000?
- Yes — the 1516000 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 1516000?
- The minimum order quantity is 1.
- Is 1516000 available?
- Yes — 1516000 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
