Rittal

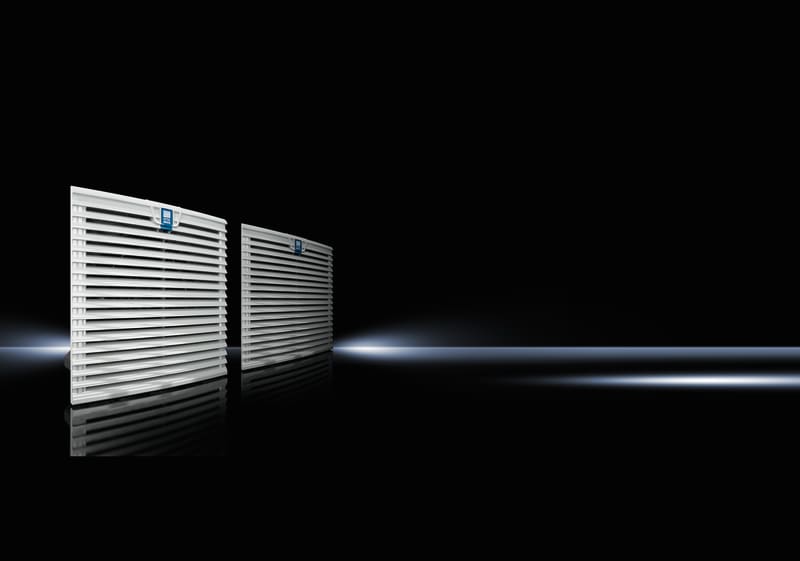

Filter Fans EC 55 m³/h
Part number3238500EAN / GTIN4028177664128HS code8414.59
Enclosures
Enclosure Cooling
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 3238500 Manufacturer description: SK Fan-and-filter unit TopTherm, 30.6 cfm 200-240 V, 1~, 50/60 Hz, WHD: 148.5 x 148.5 x 16 mm, EC technology. Energieffektiv version of RTT-filter fans with EC-teknologi.
Technical Specifications
- Manufacturer part number (MPN)
- 3238500
- EAN / GTIN
- 4028177664128
- Sales unit
- pcs
- Model designation
- SK 3238.500
- Product type
- TopTherm Filter Fan Units
- Version
- wall-mounted; EC
- Product changes
- Since May 2024, the cover for the connection terminal is no longer part of the TopTherm filter fan. During testing, it was found not to be required by the standards and does not impair function or operational safety.
- Color
- RAL 7035
- Supply includes
- Complete unit ready to install, including chopped fiber filter mat
- Fan
- Diagonal, EC motor
- Unimpeded air flow (with pleated filter)
- At 50 Hz: 63 m³/h; At 60 Hz: 70 m³/h; At 50 Hz: 37.08 cfm; At 60 Hz: 41.2 cfm
- Unimpeded air flow (with chopped fiber filter)
- At 50 Hz: 52 m³/h; At 60 Hz: 52 m³/h; At 50 Hz: 30.6 cfm; At 60 Hz: 30.6 cfm
- Rated operating voltage
- 200 V - 240 V, 1~, 50 Hz/60 Hz
- Rated power Pel
- At 50 Hz: 5.8 W; At 60 Hz: 5.8 W
- Dimensions
- Width: 148.5 mm; Height: 148.5 mm
- Installation depth
- 58.5 mm
- Mounting cut-out
- Width of opening: 124 mm; Cut-out height: 124 mm
- Protection category IP to IEC 60 529
- IP 54 with chopped fiber filter/pleated filter; IP 56 with chopped fiber filter/pleated filter and hose-proof hood
- Protection category NEMA
- Type 12 with chopped fiber filter/pleated filter; Type 3; Type 3R; Type 4; Type 4X with chopped fiber filter/pleated filter and hose-proof hood
- Operating temperature range
- -20 °C...55 °C; -4 °F...131 °F
- Storage temperature range
- -30 °C...70 °C; -22 °F...158 °F
- Noise pressure level
- At 50 Hz: 49 dB(A); At 60 Hz: 49 dB(A)
- Packaging unit
- 1 pc(s).
- Net weight
- 0.5 kg
- Gross weight
- 0.625 kg
- Customs tariff number
- 84145915
- ETIM 9
- EC000320
- ETIM 8
- EC000320
- ECLASS 8.0
- 27180716
- Approvals
- CSA; UL + C-UL - FTTA; UR + C-UR (recognized)
- Mounting method
- Snap mounting
- Colour
- Grey
- Width
- 1485 mm
- Height
- 1485 mm
- Depth
- 58.5 mm
- RAL-number
- 7035
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- No
- Number of fans
- 1
- EMC-version
- No
- Degree of protection (IP)
- IP54
- With protective cover
- No
- With filter
- Yes
- Rated power
- 6 W
- Roof fan
- No
- Built as slide-in fan
- No
- Volume flow, freeblowing
- 55 m³/h
- Air circulator
- No
- Suitable for wall built-in
- No
- Operating voltage AC 50 Hz
- 200–240 V
- Operating voltage AC 60 Hz
- 200–240 V
- Operating voltage DC
- 200–240 V
- Country of origin
- Hungary
Standards & Compliance
- HS Code
- 8414.59
Cross References
- EAN 4028177664128
- SAP 1000792026
- Code 81403518
Product Documentation
Document preview: Rittal 3238500 — Data Sheet (OEM)
