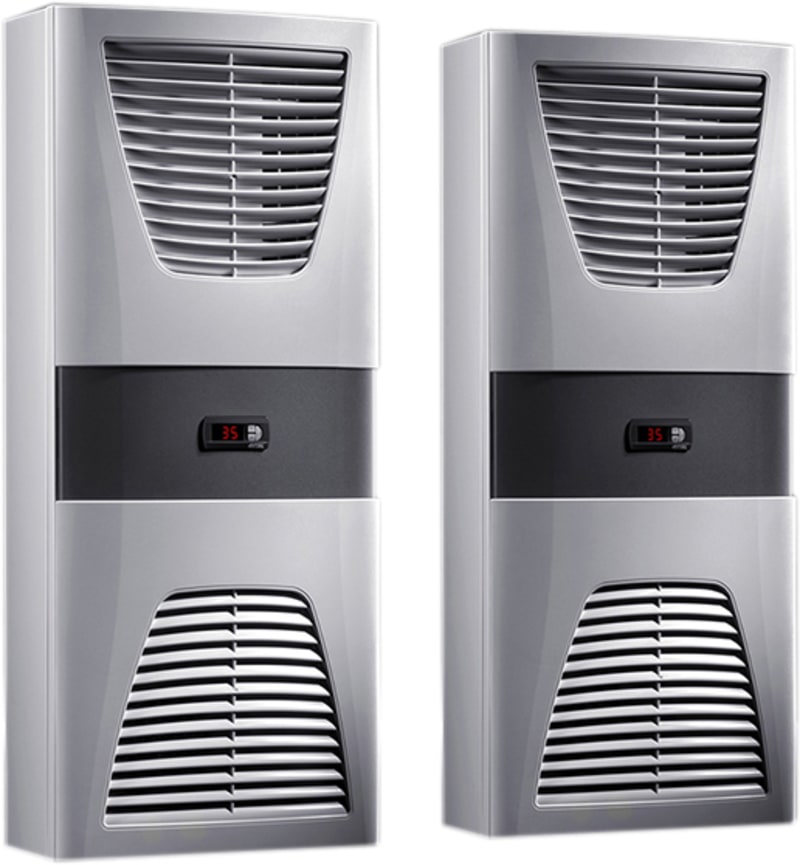

Air/Air Heat Exchanger TopTherm 90 W/K, Wall-Mounted
Part number3130100EAN / GTIN4028177388994HS code8419.50
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 3130100 SK TopTherm air/air heat exchanger, wall-mounted with controller, 90 W/K, 230 V 1~ 50/60 Hz; WHD 400 × 1580 × 215 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 3130100 EAN / GTIN: 4028177388994 Sales unit: pcs Model designation: SK 3130.100 Product type: TopTherm air-air heat exchanger Version: wall-mounted Color: RAL 7035 Supply includes: Complete unit ready for connection; Plug-in terminal strip; Floating fault signal contact in case of overtemperature; Drilling template; Fasteners Specific thermal output: 90 W/K Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz Dimensions: Width: 400 mm; Height: 1,580 mm; Depth: 215 mm Temperature control: Electronic Control with digital Display (factory setting +35 °C) Operating temperature range: -5 °C...55 °C; 23 °F...131 °F Protection category IP to IEC 60 529: Internal circuit, IP 54; External circuit, IP 34 Packaging unit: 1 pc(s). Net weight: 37.05 kg Gross weight: 39 kg Customs tariff number: 84158300 ETIM 9: EC002514 ETIM 8: EC002514 ECLASS 8.0: 27180711 Approvals: UR + C-UR (recognized) Add-on type: Integrated Operating voltage AC 50 Hz: 207–253 V Operating voltage AC 60 Hz: 207–253 V Voltage type: AC Country of origin: Spain
Standards & Compliance
- HS Code
- 8419.50
Cross References
- EAN 4028177388994
- SAP 1000791132
- Code 81404284
Product Documentation
Document preview: Rittal 3130100 — Data Sheet (OEM)
