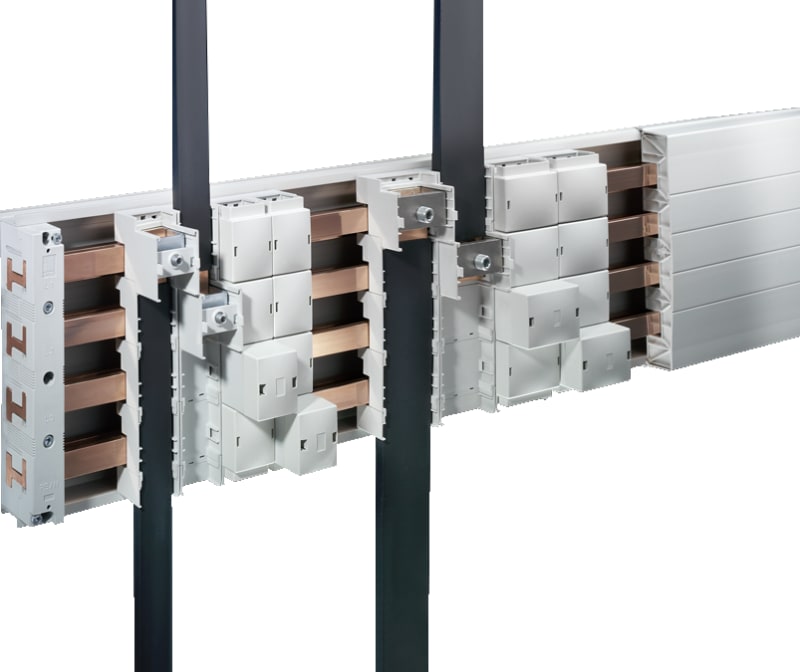

Tilkoplingsadabter 800A, 690V
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 9342314 Manufacturer description: SV Connection adaptor, 800 A, 690 V, 1-pole, expansion set, for SV; 9342310 (configuration 4-pole), round conductor connection 95-120 mm², clamping area WH: 33x21/26 mm. For connection round conductors. For rails m. 60 mm senter-for-senter distance. 2,5mm² for 10mm².
Technical Specifications
- Manufacturer part number (MPN)
- 9342314
- EAN / GTIN
- 4028177536869
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Model designation
- SV 9342.314
- Product type
- Connection adapter expansion set
- Material
- Cover: ABS; Punched section: Polyamide; Fire protection corresponding to UL 94-V0
- Color
- RAL 7035
- Rated operating voltage
- 690 V, 1~
- Electrical UL ratings (SCCR)
- 65 kA - 480 V, circuit breaker max. 600 A, DIVQ/7; 65 kA - 600 V, fuse class L max. 800 A, JDDZ/7
- For bar systems with center-to- center spacing
- 60 mm
- Number of poles
- 1-pole
- Suitable for Model No.
- 9342.310
- Dimensions
- Width: 50 mm; Height: 270 mm
- Suitable for busbars
- Height: 5, 10 mm
- For busbar thickness
- 185 mm
- Packaging unit
- 1 pc(s).
- Net weight
- 0.8 kg
- Gross weight
- 0.88 kg
- Copper weight (kg per piece)
- 0.096
- Customs tariff number
- 85369010
- ETIM 9
- EC001531
- ECLASS 8.0
- 27370304
- Approvals
- ABS; DNV; Lloyds Register; UL + C-UL (listed)
- Mounting rail armament
- None
- Rated current In
- 800 A
- Min. busbar thickness
- 5 mm
- Max. busbar thickness
- 10 mm
- Width of the adaptor
- 50 mm
- Busbar distance
- 60 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4028177536869
- SAP 1000116876
- Code 81025631
Product Documentation
More from Rittal
Rittal

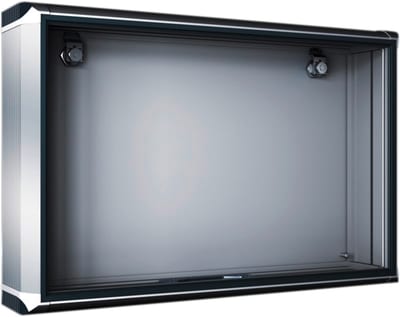

Optipanel 6380.000 (6380000)
Rittal
Rittal 6315250 AX Operating Enclosure 380x300x210 mm with Handle Strips
Rittal

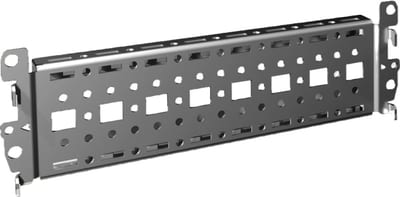

System chassis VX y 18X64 300
8617000
Rittal

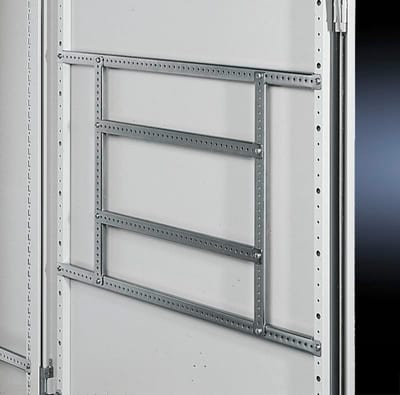

Doorprofil FOR CP (4309000)
Rittal

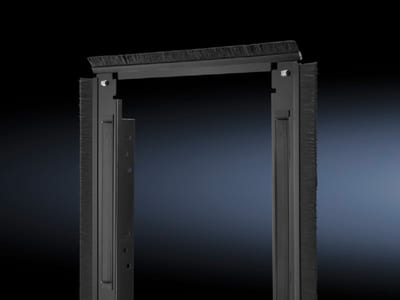

VX IT Air control plate 800X2000 std
