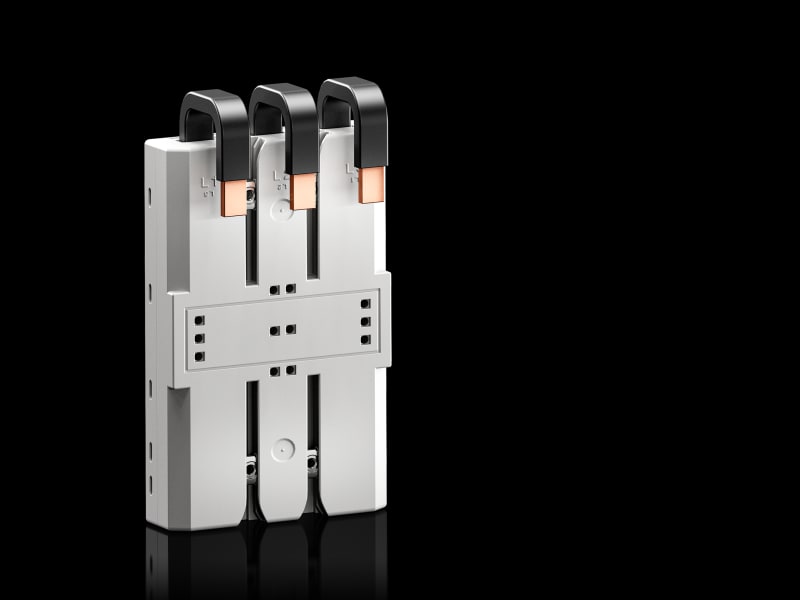

CB-device adapter 3-pole (9635110)
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 9635110 Manufacturer description: SV CB component adaptor 160 A, 690 V (AC), 600 V (DC), 3-pole; WH: 90 x 160 mm, mounting distance 30 mm. CB-device adapter 160 A, 690 V (AC), 600 V (DC), 3-pole bh: 90 x 160 mm, monteringsavstand 30 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 9635110
- EAN / GTIN
- 4028177951846
- Sales unit
- pcs
- Model designation
- SV 9635.110
- Product type
- Circuit-Breaker Component
- Function principle
- For mechanical attachment and direct contact of circuit breakers on the board; Mounting the circuit breaker with variably adjustable fastening points (M4)
- Material
- Polyamide; Fire protection corresponding to UL 94-V0
- Color
- RAL 7035
- Rated operating voltage
- 600 V (DC), 3~; 690 V (AC), 3~
- Number of poles
- 3-pole
- Dimensions
- Width: 90 mm; Height: 160 mm; Depth: 45 mm
- Distance between fixing points
- 30 mm
- Cable outlet
- Top/bottom
- To fit manufacturer (model)
- ABB (XT2); Allen Bradley (140G-H); Eaton (NZM1)
- Packaging unit
- 1 pc(s).
- Net weight
- 0.55 kg
- Gross weight
- 0.588 kg
- Copper weight (kg per piece)
- 0.276
- Customs tariff number
- 85369095
- ETIM 9
- EC001531
- ECLASS 8.0
- 27370304
- Approvals
- UL + C-UL (listed)
- Mounting rail armament
- None
- Type of electric connection
- Laminated copper rail
- Rated current In
- 160 A
- Min. busbar thickness
- 0 mm
- Width of the adaptor
- 90 mm
- Busbar distance
- 60 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4028177951846
- SAP 1200596570
- Code 82972164
Product Documentation
More from Rittal
Rittal
Mounting rail trailing edge 21U
7507721
Rittal
Support rail VX 45X25MM 1000
8617820
Rittal

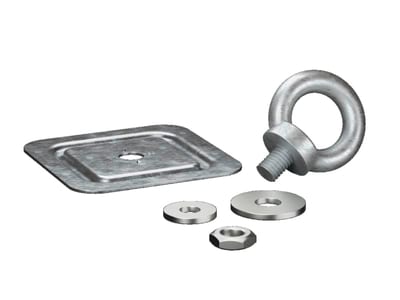

Rittal 2509010 AX Lifting Eyebolts M12 (Pair)
Rittal

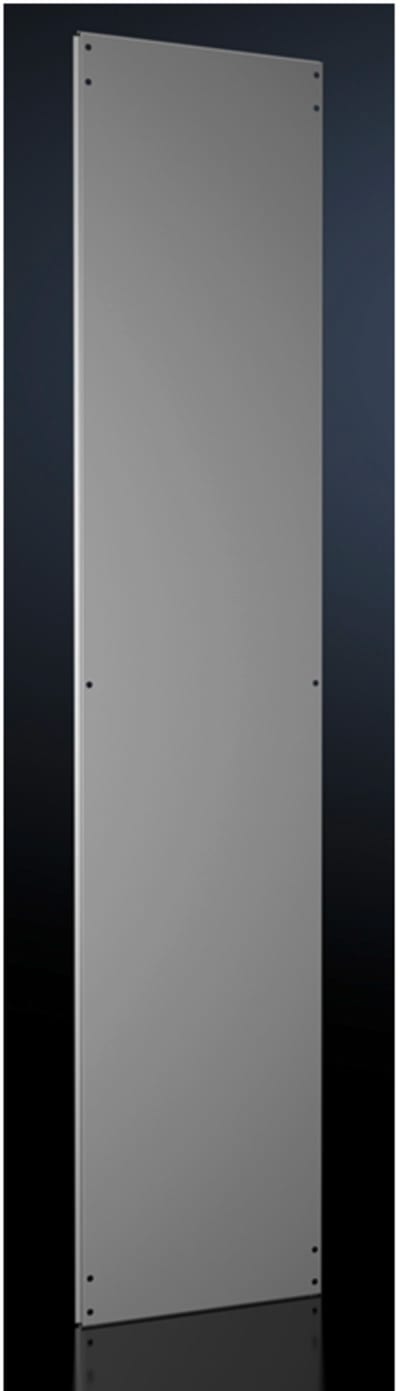

Partition VX 2000X500
8609204
Rittal

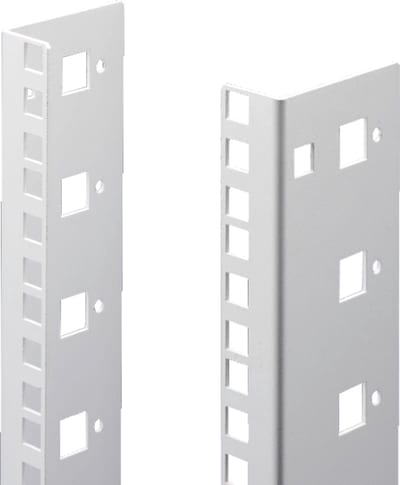

Mounting rail trailing edge 15U
