Rittal

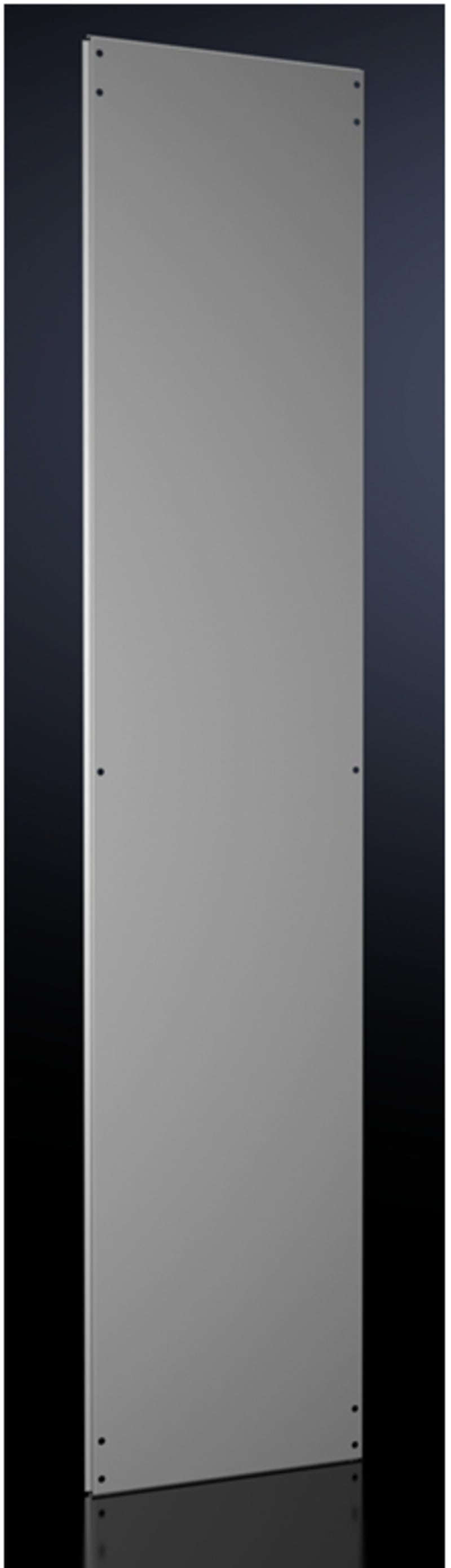

Partition VX 2000X500
Part number8609204EAN / GTIN4028177817784HS code9403.20
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 8609204 Skilevegg VX.
Technical Specifications
- Manufacturer part number (MPN)
- 8609204
- EAN / GTIN
- 4028177817784
- Sales unit
- pcs
- Model designation
- VX 8609.204
- Product type
- Divider panel
- Material
- Sheet steel, 1.5 mm
- Surface finish
- Zinc-plated
- Supply includes
- Assembly parts
- To fit
- Enclosure type: VX; Height: = 2,000 mm; Depth: = 500 mm
- Installation options
- For mounting on the outer mounting level; This leaves the inner level free for further population
- Assembly instruction
- For baying in combination with a divider panel, an internal baying bracket 8617500 or external baying bracket 8617502 is required
- IP protection category to IEC 60 529
- IP 54
- Net weight
- 9.5 kg
- Gross weight
- 10.75 kg
- Customs tariff number
- 94039910
- ETIM 9
- EC002525
- Suitable for enclosure building depth
- 500 mm
- Height
- 2000 mm
- Surface finishing
- Galvanised
- Colour
- Grey
- With cable entry
- No
- With lock
- No
- Construction type
- Individual part
- For internal separation form 2a
- No
- For internal separation form 2b
- No
- For internal separation form 3a
- No
- For internal separation form 3b
- No
- For internal separation form 4a
- No
- For internal separation form 4b
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 4028177817784
- SAP 1200107169
- Code 81956167
Product Documentation
Document preview: Rittal 8609204 — Data Sheet (OEM)
More from Rittal
Rittal
Mounting rail trailing edge 15U
7507715
Rittal
EMC bottom plate for VX 600 width
8618820
Rittal
Rittal 9340450 SV OM Device Adapter 65A AWG 6 3-Pole
Rittal
Mounting rail trailing edge 9U
7507709
Rittal
Rittal SV base plate profile RL60 PLS800 1100 mm 3-pole
9340130
Rittal
Rittal 7888322 TX CableNet Cable Routing Duct 2200x308 mm
Rittal
FlatBox 6HE, 400mm deep
7507000
Rittal
VX IT Gliderail for HD 2HE 725mm
5302034
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
