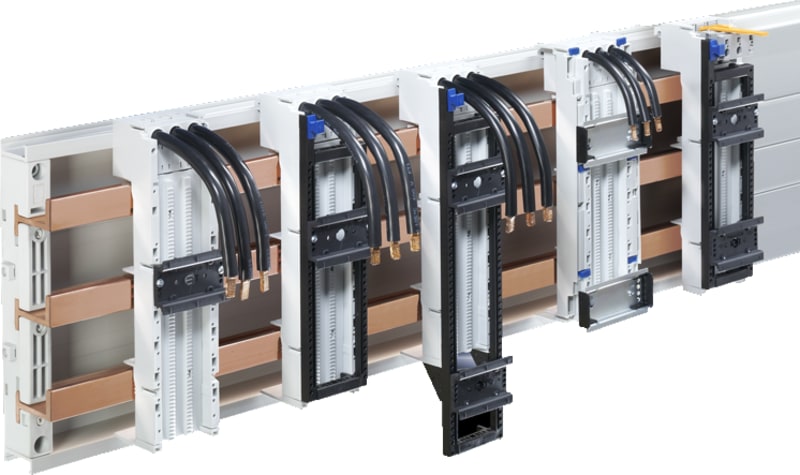

Rittal 9340450 SV OM Device Adapter 65A AWG 6 3-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal SV 9340.450 OM device adapter, 65 A, 690 V, 3-pole, for 60 mm centre-to-centre busbar systems, with 130 mm AWG 6 connection cables, TS 55E and TS 55D-V support rails and a detachable frame. Polyamide chassis (UL 94-V0), RAL 7035, 55 x 272 mm. Approvals UL, C-UL listed, ABS, DNV, Lloyds Register. Country of origin: Germany.
Technical Specifications
- Manufacturer part number (MPN)
- 9340450
- EAN / GTIN
- 4028177502550
- Sales unit
- pcs
- Package quantity
- 16 pcs
- Model designation
- SV 9340.450
- Product type
- OM adapter
- Version
- With connection cable
- Material
- Polyamide; Fire protection corresponding to UL 94-V0
- Color
- Chassis: RAL 7035
- Connection cables (AWG)
- AWG 6
- Rated operating voltage
- 690 V, 3~
- For bar systems with center-to- center spacing
- 60 mm
- Length of connection cable
- 130 mm
- Support rail type
- Support frame, 1 x TS 55E, 1 x TS 55D-V
- Number of poles
- 3-pole
- Support frame support
- Yes
- Dimensions
- Width: 55 mm; Height: 272 mm
- Support rails Qty/height
- 2 / 10 mm
- Suitable for busbars
- Height: 5, 10 mm
- Support frame (W x H)
- 55 mm x 237 mm
- Packaging unit
- 1 pc(s).
- Net weight
- 0.399 kg
- Gross weight
- 0.405 kg
- Copper weight (kg per piece)
- 0.116
- Customs tariff number
- 85369095
- ETIM 9
- EC001531
- ECLASS 8.0
- 27370304
- Approvals
- UL; ABS; DNV; Lloyds Register; UL + C-UL (listed)
- Mounting rail armament
- None
- Rated current In
- 65 A
- Min. busbar thickness
- 5 mm
- Max. busbar thickness
- 10 mm
- Width of the adaptor
- 55 mm
- Rail width
- 55 mm
- Busbar distance
- 60 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4028177502550
- SAP 1000116753
- Code 81025293
Product Documentation
More from Rittal
Rittal
Mounting rail trailing edge 9U
7507709
Rittal
Rittal SV base plate profile RL60 PLS800 1100 mm 3-pole
9340130
Rittal
Rittal 7888322 TX CableNet Cable Routing Duct 2200x308 mm
Rittal
FlatBox 6HE, 400mm deep
7507000
Rittal
VX IT Gliderail for HD 2HE 725mm
5302034
Rittal
Rittal SV base plate profile RL60 PLS800 500 mm 3-pole
9340100
Rittal
Plinth VX incl. front/rear panel 100X300
8660000
Rittal
Partial Mounting Plate VX 800X800
8617580
