Rittal

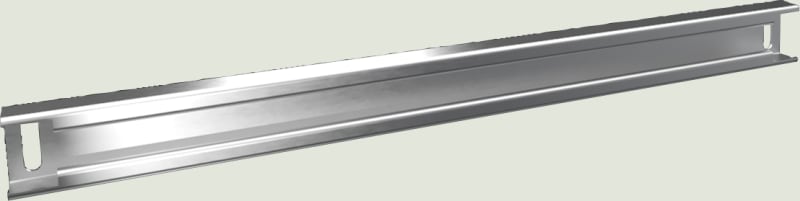

Support rail VX 45X25MM 1000
Part number8617820EAN / GTIN4028177919532HS code5603.93
Electrical Components
DIN Rail Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 8617820 Support rail VX 45x25mm 1000 Pack of 2 pcs.
Technical Specifications
- Manufacturer part number (MPN)
- 8617820
- EAN / GTIN
- 4028177919532
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Model designation
- VX 8617.820
- Product type
- Support Rail 48 x 26 mm
- Model No. Product description
- VX 8617.820
- Material
- Carbon steel
- Surface finish
- Zinc-plated
- Supply includes
- Assembly components
- Installation options VX
- In enclosure width 1000 mm, on the inner mounting level and in the base
- Installation options VX SE
- In enclosure width 1000 mm, on the inner mounting level, in conjunction with adaptor rail for VX compatibility and in the base
- Installation options AX
- In enclosure width 1000 mm, in conjunction with the AX interior installation rail and AX base configuration rail
- Installation options PC
- In enclosure width 1000 mm, on the inner mounting level, in conjunction with adaptor rail for VX compatibility and in the base
- Installation options IW
- In enclosure width 1000 mm, on the inner mounting level, in conjunction with adaptor rail for VX compatibility and in the base
- Packaging unit
- 2 pc(s).
- Net weight
- 4.64 kg
- Gross weight
- 4.913 kg
- PCF/VE (cradle-to-gate)
- 20.87
- Customs tariff number
- 73269098
- ETIM 9
- EC001285
- ECLASS 8.0
- 27189261
- Model
- Special profile
- Material thickness
- 1.5 mm
- Punch shape
- Long-slot
- Drill hole distance centrically
- 5 mm
- Surface finishing
- Galvanised
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 5603.93
Cross References
- EAN 4028177919532
- SAP 1200107054
- Code 81963693
Product Documentation
Document preview: Rittal 8617820 — Data Sheet (OEM)
