Rittal
Doorprofil FOR CP (4309000)
Part number4309000EAN / GTIN4028177098510HS code8538.10
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

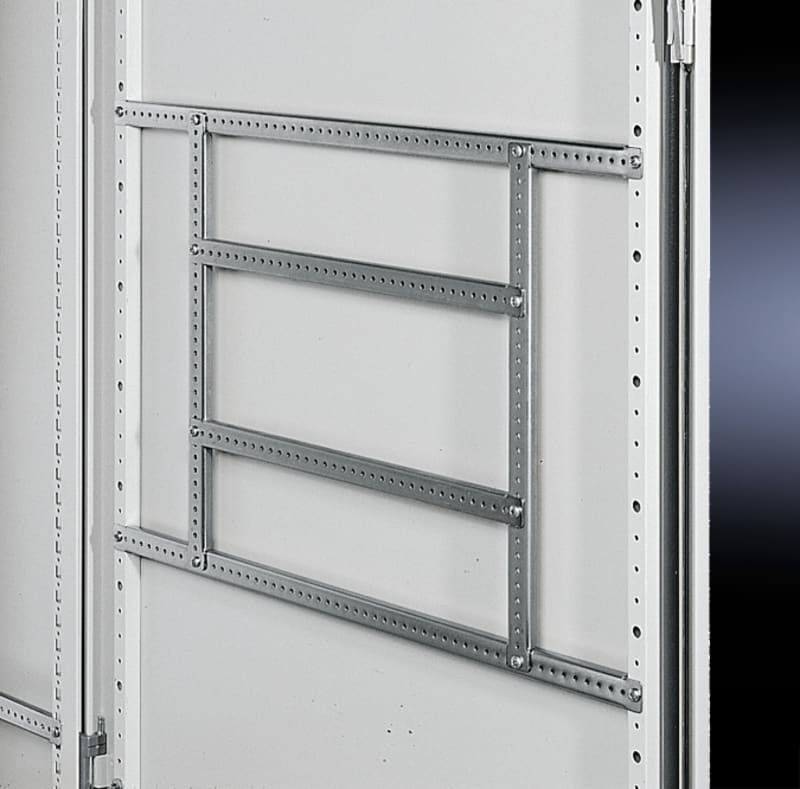

Rittal 4309000 Manufacturer description: TS support strip, for TS, VX SE, TP, AX for inner mounting level: for; W/D: 400 mm, for door width: 500 mm, L: 390 mm. Montasjestag for TS, CM, ES and TP 500x390.
Technical Specifications
- Manufacturer part number (MPN)
- 4309000
- EAN / GTIN
- 4028177098510
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Model designation
- TS 4309.000
- Product type
- Support Strip
- Technical specifications
- 4.5 mm diameter hole on a 25 mm hole pattern
- Material
- Carbon steel
- Surface finish
- Zinc-plated
- Supply includes
- Assembly components
- Length
- 390 mm
- Suitable for door width
- 500 mm
- Installation options VX
- In door width 500 mm
- Installation options VX SE
- In door width 500 mm; In enclosure depth 400 mm, on the inner mounting level, in conjunction with adaptor rail for VX compatibility
- Installation options AX
- In door width 500 mm, with 3-point locking system in the locking door; In enclosure width 400 mm and in enclosure height 500 mm, in conjunction with rail for interior installation AX
- Installation options AX stainless steel
- In enclosure width + 400 mm; In enclosure height/width 500 mm
- Installation options AX plastic
- In door width 500 mm
- Installation options for 3-part AX
- Enclosure depth 573 mm
- Installation options TS
- In door width 500 mm; In enclosure width/depth 400 mm on the inner mounting level
- Installation options TP
- In consoles for 3-part assembly, at the height of the enclosure cover, in conjunction with rail for interior installation for TP, compact enclosure HD
- Packaging unit
- 20 pc(s).
- Net weight
- 3.78 kg
- Gross weight
- 4.1 kg
- PCF/VE (cradle-to-gate)
- 18.68 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 73269098
- ETIM 9
- EC002620
- ETIM 8
- EC002620
- ECLASS 8.0
- 27189261
- Model
- Grid profile
- Suitable for enclosure building width
- 500 mm
- Suitable for enclosure building depth
- 400 mm
- Width
- 390 mm
- Height
- 20 mm
- Depth
- 7 mm
- RAL-number
- 7035
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4028177098510
- SAP 1000111032
- Code 81234180
Product Documentation
Document preview: Rittal 4309000 — Data Sheet (OEM)
