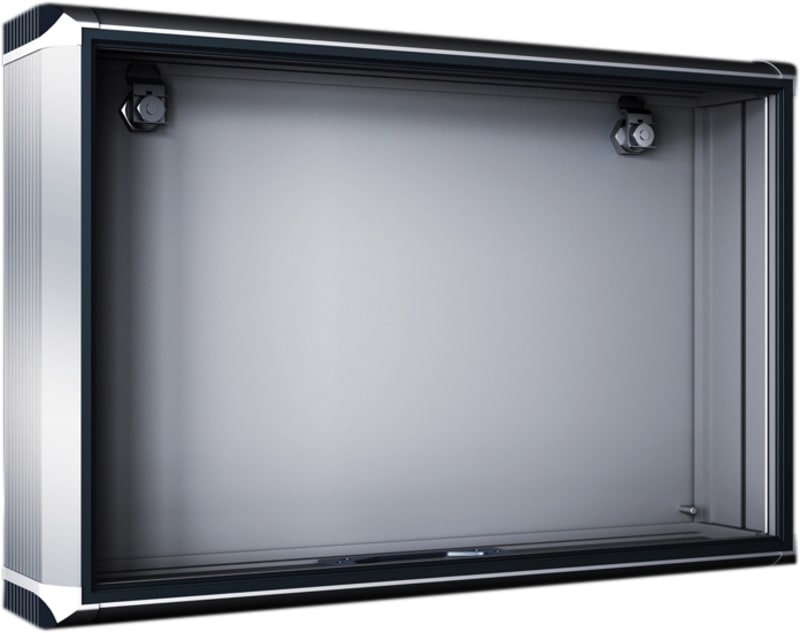

Optipanel 6380.000 (6380000)
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 6380000 Manufacturer description: CP Optipanel, for front panel BH 482,6x310,3 mm, installation depth; 100 mm, Extruded aluminum section, Support arm connection; 120x65 mm. Optipanel - CP 6380.000.
Technical Specifications
- Manufacturer part number (MPN)
- 6380000
- EAN / GTIN
- 4028177231627
- Sales unit
- pcs
- Model designation
- CP 6380.000
- Product type
- Optipanel
- Version
- Support arm connection, rectangular 120 x 65 mm
- Material
- Housing: Extruded aluminum section; Corner pieces: Die-cast zinc; Corner protectors: Plastic
- General color
- Natural anodized
- Color
- Housing: Natural anodized.; Corner pieces: RAL 7035; Corner protectors: Similar to RAL 7024
- Supply includes
- Housing with hinged rear panel; Seals
- Dimensions
- Width: 526.6 mm; Height: 354.3 mm; Depth: 110 mm
- Installation depth
- 100 mm
- Protection category IP to IEC 60 529
- IP 65
- Suitable for front panel width
- 482.6 mm
- Suitable for front panel height
- 310.3 mm
- Base material
- Aluminum
- Lock
- Lock version: Cam; No. of locks: 2; Lock Insert: 3 mm double-bit
- Packaging unit
- 1 pc(s).
- Net weight
- 5.86 kg
- Gross weight
- 6.168 kg
- Customs tariff number
- 94032080
- ETIM 9
- EC002504
- ECLASS 8.0
- 27180505
- Width
- 526.6 mm
- Height
- 354.3 mm
- Depth
- 110 mm
- Surface finishing
- Powder coating
- RAL-number
- 7035
- Degree of protection (IP)
- IP65
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 4028177231627
- SAP 1000111300
- Code 81054223
Product Documentation
