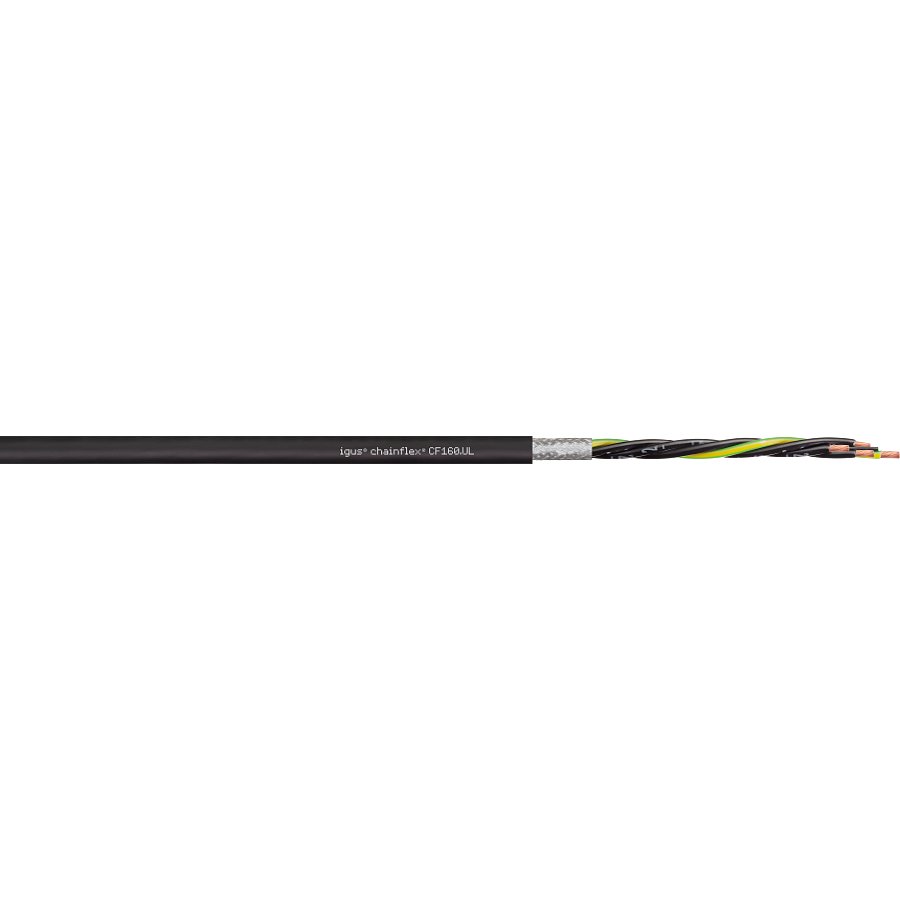

chainflex® control cable CF160.UL

igus chainflex® control cable CF160.UL (part number CF160.UL.15.12) is listed under Safety & Detection / Tools. Protective conductor: with green-yellow earth core; Copper index kg/km: 243 kg/km; Shipping weight (kg or kg/m): 0.478; Outer diameter (d) max. mm: 20 mm; Weight per km: 478 kg/km; Min. bend radius, e-chain: 150 mm.

Manufacturer part number (MPN)

CF160.UL.15.12

Brand

IGUS

Category

Tools

Number of cores and conductor nominal cross-section

(12G1.5)C

Protective conductor

with green-yellow earth core

Copper index kg/km

243 kg/km

Shipping weight (kg or kg/m)

0.478

Outer diameter (d) max. mm

20 mm

Weight per km

478 kg/km

Min. bend radius, e-chain (factor)

7.5 x d

Min. bend radius, e-chain

150 mm

Min. bend radius, flexible (factor)

6 x d

Min. bend radius, flexible

120 mm

Min. bend radius, fixed (factor)

4 x d

Min. bend radius, fixed

80 mm

Temperature e-chain®

+5°C up to +70°C

Temperature, flexible

-5°C to +70°C (according to DIN EN 60811-504)

Temperature, fixed

-15°C to +70°C (according to DIN EN 50305)

v max. unsupported (speed)

3 m/s

v max. gliding (speed)

2 m/s

a max. (acceleration)

20 m/s²

travel length

Travels up to 50 m

torsion

No Torsion

Conductor

Finely stranded conductor consisting of bare copper wires (according to DIN EN 60228).

Core insulation

Mechanically high-quality PVC/PA combination

Core stranding

Cores wound in bundles are then wound around a high tensile strength centre element, all with optimised short pitch lengths and directions. Especially low-torsion structure.

Inner jacket

PVC mixture adapted to suit the requirements in e-chains®.

Overall shield

Bend-resistant braiding made of tinned copper wires. Coverage approx. 55% linear, approx. 80% optical

Outer jacket

Low-adhesion, oil-resistant PVC mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-4-1).

Outer jacket colour

Jet black (comparable to RAL 9005)

CFRIP®

Strip cables faster: a tear strip is moulded into the inner jacket

Nominal voltage

TC-ER 600V, WTTC 1,000V, MTW 600V

Test voltage

2000V (according to DIN EN 50395)

UV resistance

Medium

Oil resistance

Oil-resistant (according to DIN EN 50363-4-1), UL Oil Res I, Class 2

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)

REACH

In accordance with Regulation (EC) No. 1907/2006 (REACH)

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

CE

According to 2014/35/EU

UL/CSA AWM

Style 10493 and 20200, 300 V, 60 °C

UL verified

Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“

UL-Listed

TC-ER UL 1277, WTTC UL 2277, MTW UL 1063

Flame-retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame, FT4

NFPA

According to NFPA 79-2018, chapter 12.9

HS Code

8544.49
