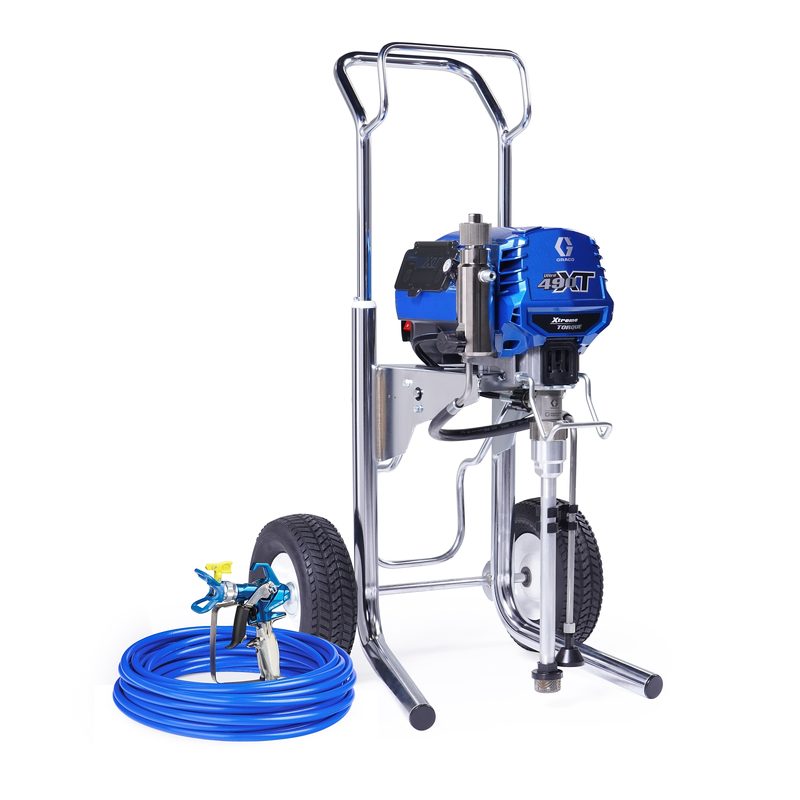

Graco Ultra 490 XT Electric Airless Sprayer, Hi-Boy

Graco 19D521 Ultra 490 XT Electric Airless Sprayer, Hi-Boy, part number 19D521. Graco Ultra 490 XT Electric Airless Sprayer airless sprayer. 3300 psi maximum working pressure. Maximum tip size.025 in. Hi-Boy frame. All values read from the Graco product page (19D521 on graco.com).

Brand

Graco Family: Ultra 490 XT Electric Airless Sprayer Part number: 19D521 Cycles Per Gallon: 700 Fluid Outlet Size (in): 1/4 Fluid Outlet Thread Type: NPSM Frame Configuration: Hi-Boy Gun Model: Contractor PC Gun Technology: Airless Maximum Flow Rate (GPM): 0.7 Maximum Fluid Working Pressure (psi): 3300 Maximum Tip Size (in): .025 Maximum Working Pressure (MPa): 22.8 Maximum Working Pressure (psi): 3300 minimum Generator Power (W): 3500 minimum Working Pressure (psi): 50 Model: Ultra Overall Height (in): 28.6 Overall Length (in): 22.2 Overall Width (in): 20.5 Series: 490 XT Type: Airless Sprayer Voltage (V): 120 Weight (lb): 66 Maximum Flow Rate (L/min): 2.6 Maximum Working Pressure (bar): 228 Overall Height (cm): 72.599999999999994 Overall Length (cm): 56.4 Overall Width (cm): 52.1 Weight (kg): 29.9

Pressure Rating

3300 psi max

HS Code

8424.20
