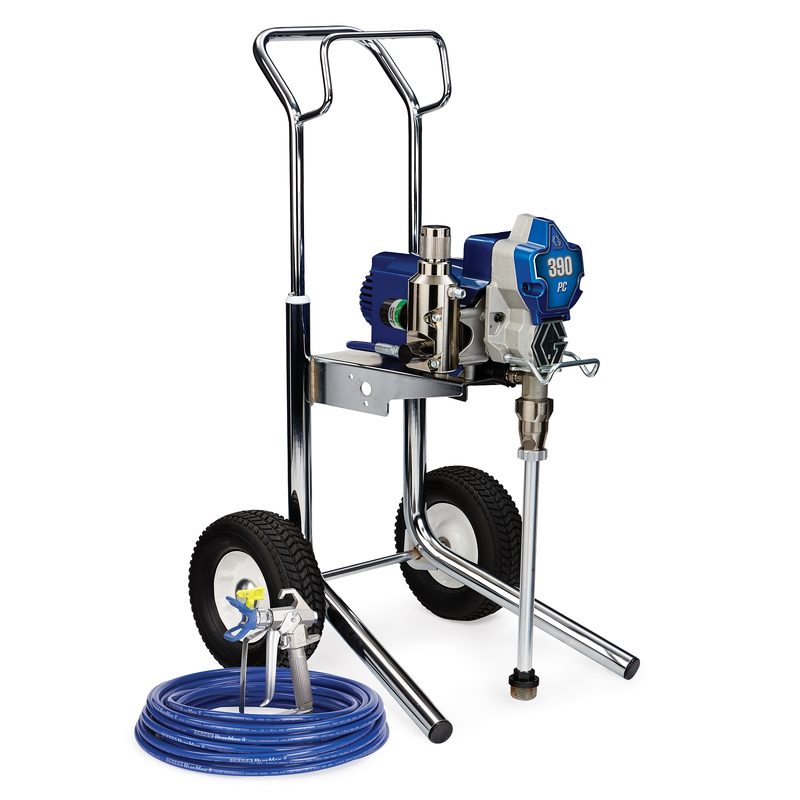

Graco 390 PC Electric Airless Sprayer, Hi-Boy
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 17C313 390 PC Electric Airless Sprayer, Hi-Boy, part number 17C313. Graco 390 PC Electric Airless Sprayer airless sprayer. Electric power source. 3300 psi maximum working pressure. Maximum tip size 0.021 in. Endurance pump. Hi-Boy frame. All values read from the Graco product page (17C313 on graco.com).
Technical Specifications
- Brand
- Graco Family: 390 PC Electric Airless Sprayer Part number: 17C313 Amperage (A): 13 Compatible material: Enamel, Lacquer, Latex Engine Size (HP): 0.625 Features: Endurance Chromex Pump, Advantage Drive, ProConnect, Easy Out Filter Fluid Outlet Size (in): 1/4 Fluid Outlet Thread Type: NPSM Frame Configuration: Hi-Boy Includes: FTx Gun, RAC X LP 515 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz Maximum Flow Rate (GPM): 0.47 Maximum Sound Pressure Level (dB(A)): 90 Maximum Tip Size (in): 0.021 Maximum Working Pressure (MPa): 22.8 Maximum Working Pressure (psi): 3300 minimum Generator Power (W): 3000 Motor Type: DC Number of Guns: 1 Outlet Paint Filter: 60 Mesh Stainless Steel Screen Overall Height (in): 38.25 Overall Length (in): 23.25 Overall Width (in): 20.5 Phase: 1 Power Rating (HP): 0.625 Power Rating (W): 466 Power Rating (kW): 0.47 Power Source: Electric Pump Mount Type: ProConnect Pump Rod Type: Chromex Pump Sleeve material: Hardened Steel Pump Type: Endurance Series: 390 PC Type: Airless Sprayer Voltage (V): 120 Volume Per Cycle (cycles/gal): 700 Weight (lb): 69 Wetted material: Acetal, Aluminum, Fluoroelastomer, Leather, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel Fluid Outlet Size (mm): 6.35 Maximum Flow Rate (L/min): 1.8 Maximum Working Pressure (bar): 228 Maximum Working Pressure (kPa): 22800 Overall Height (cm): 97.2 Overall Height (mm): 972 Overall Length (cm): 59.1 Overall Length (mm): 591 Overall Width (cm): 52.1 Overall Width (mm): 521 Recommended Annual Usage: Up to 50 gallons per week Weight (kg): 31
Standards & Compliance
- Material
- Acetal, Aluminum, Fluoroelastomer, Leather, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
- Pressure Rating
- 3300 psi max
- HS Code
- 8424.20
Compatibility & Fitment
Complete spray system/package. Confirm power source/battery, maximum tip size, pump type and frame configuration against the coating and layout before ordering; bundled items are listed under "Includes" in the specifications.
