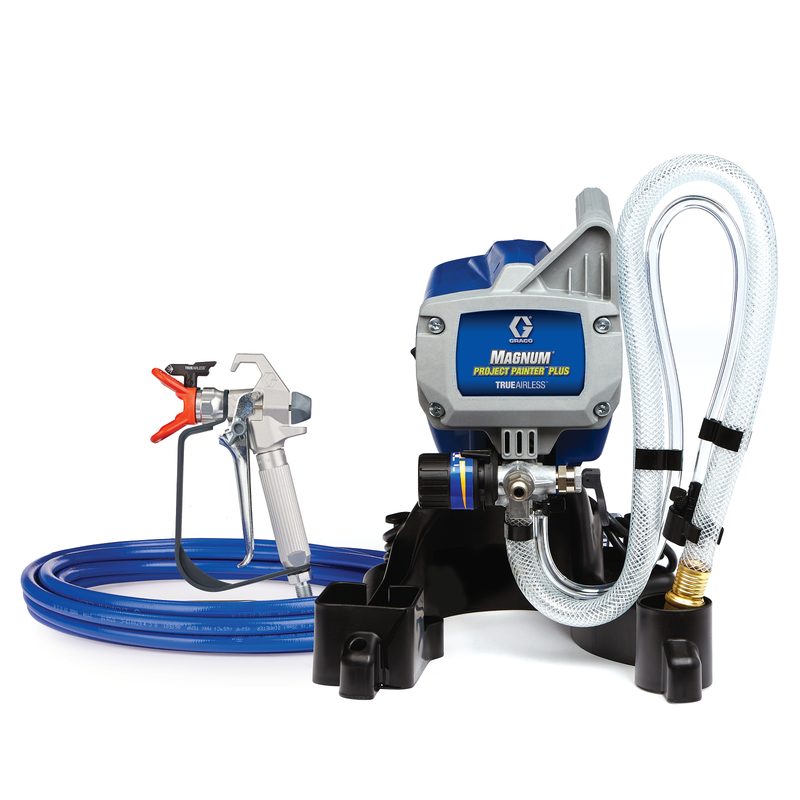

Graco Magnum Project Painter Plus Electric TrueAirless Sprayer
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 257025 Magnum Project Painter Plus Electric TrueAirless Sprayer, part number 257025. Graco Magnum Project Painter Plus Electric TrueAirless Sprayer airless sprayer. Electric power source. 2800 psi maximum working pressure. Maximum tip size 0.015 in. Stand frame. Recommended annual usage 50 gal. All values read from the Graco product page (257025 on graco.com).
Technical Specifications
- Brand
- Graco Family: Magnum Project Painter Plus Electric TrueAirless Sprayer Part number: 257025 Amperage (A): 9.0 Compatible Tip Size (in): 0.009, 0.011, 0.013, 0.015 Engine Size (HP): 0.375 Fluid Outlet Size (in): 1/4 Fluid Outlet Thread Type: NPSM Frame Configuration: Stand Includes: SG2 Spray Gun, TrueAirless 515 Spray Tip, Spray Tip Guard, 1/4 in x 25 ft DuraFlex Hose, Pump Armor Storage Fluid (8 oz), Quick start-Up Guide Inlet Paint Strainer: 35 Mesh Stainless Steel Screen Maximum Flow Rate (GPM): 0.24 Maximum Hose Length (ft): 50 Maximum Tip Size (in): 0.015 Maximum Tip Size 1 Gun (in): 0.015 Maximum Working Pressure (MPa): 19.3 Maximum Working Pressure (psi): 2800 minimum Generator Power (W): 1500 Model: Magnum Motor Type: Universal Number of Guns: 1 Overall Height (in): 13.8 Overall Length (in): 13.8 Overall Width (in): 12.1 Phase: 1 Power Rating (HP): 0.375 Power Rating (W): 280 Power Rating (kW): 0.28 Power Source: Electric Pressure Control Type: Adjustable Product Series: DIY Pump Rod Type: Stainless Steel Pump Sleeve material: Stainless Steel Recommended Annual Usage (gal): 50 Series: Project Painter Plus Type: Airless Sprayer Voltage (V): 120 Weight (lb): 13 Wetted material: Nylon, Aluminum, Brass, Plated Steel, Leather, UHMWPE, Stainless Steel, Polypropylene, Fluoroelastomer, Tungsten Carbide Fluid Outlet Size (mm): 6.35 Maximum Flow Rate (L/min): 0.91 Maximum Hose Length (m): 15 Maximum Working Pressure (bar): 193 Maximum Working Pressure (kPa): 19300 Overall Height (cm): 35.1 Overall Height (mm): 351 Overall Length (cm): 35.2 Overall Length (mm): 352 Overall Width (cm): 30.7 Overall Width (mm): 307 Weight (kg): 6
Standards & Compliance
- Material
- Nylon, Aluminum, Brass, Plated Steel, Leather, UHMWPE, Stainless Steel, Polypropylene, Fluoroelastomer, Tungsten Carbide
- Pressure Rating
- 2800 psi max
- HS Code
- 8424.20
Compatibility & Fitment
Complete spray system/package. Confirm power source/battery, maximum tip size, pump type and frame configuration against the coating and layout before ordering; bundled items are listed under "Includes" in the specifications.
Product Documentation
More from Graco
Graco
Graco Ultra 795 XT Standard Series Electric Airless Sprayer, Hi-Boy
19F710
Graco
Graco Ultra 795 XT ProContractor Series Electric Airless Sprayer, Hi-Boy
19F711
Graco
Graco Ultra 1095 XT Standard Series Electric Airless Sprayer, Hi-Boy
19F546
Graco

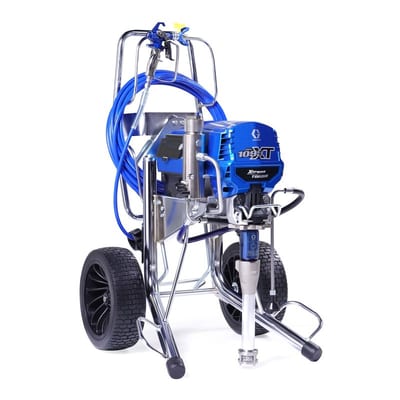

Graco Ultra 1095 XT ProContractor Series Electric Airless Sprayer, Hi-Boy
19F548
Graco

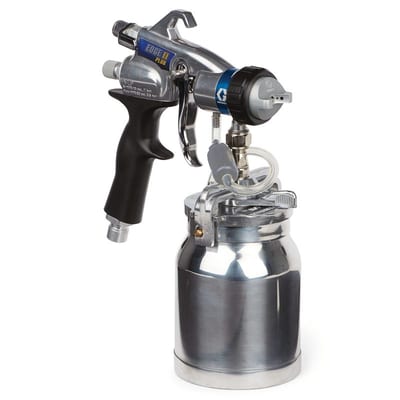

Graco EDGE II Plus Gun with Metal Cup
17P484
Graco

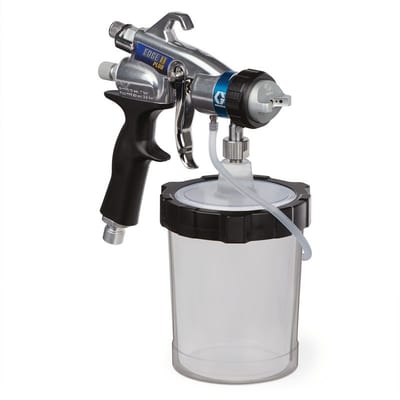

Graco EDGE II Plus Gun with FlexLiner System
17P483
Graco

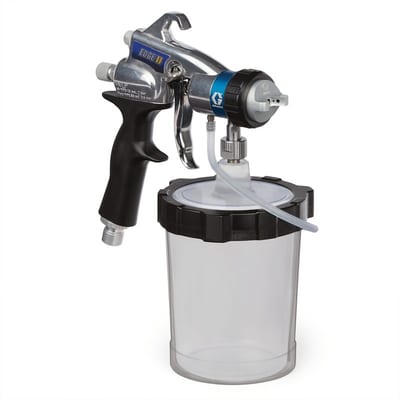

Graco EDGE II Gun with FlexLiner System
17P481
Graco

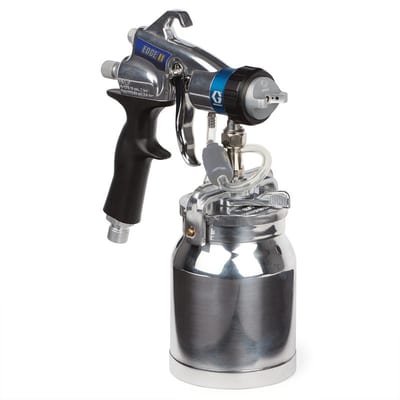

Graco EDGE II Gun with Metal Cup
