Graco EDGE II Plus Gun with FlexLiner System
Pricing
Request a quote
We reply within 24 hours
Product Description

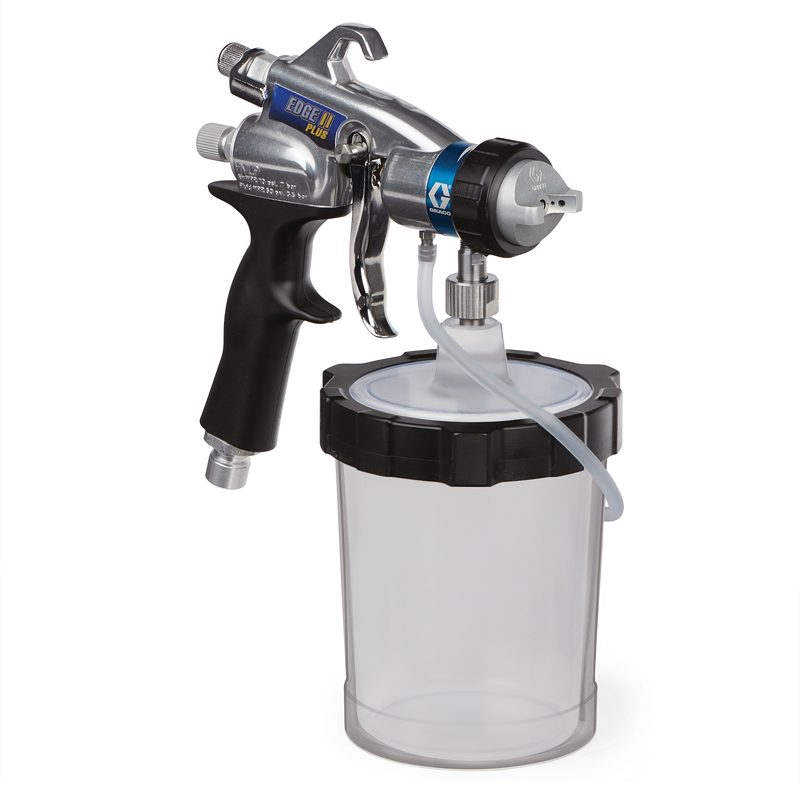

Graco 17P483 EDGE II Plus Gun with FlexLiner System, part number 17P483. Spray Gun, EDGE II Plus series (HVLP Gun). HVLP spray. 50 psi maximum fluid pressure. 10 psi maximum air pressure. Two-Finger trigger. 20 oz gun weight. For use with FinishPro HVLP Sprayers. Includes 1 qt FlexLiner Cup, #3 Quick Release Fluid Set. All values read from the Graco product page (17P483 on graco.com).
Technical Specifications
- Brand
- Graco
- Family
- EDGE II Plus Gun with FlexLiner System
- Part number
- 17P483
- Applicator Type
- Manual
- Compatible Material
- Varnish, Enamel, Latex, Stain
- For Use With
- FinishPro HVLP Sprayers
- Gun Activation
- Manual
- Gun Included
- 1
- Gun Type
- HVLP Gun
- Gun Weight (lb)
- 1.25
- Gun Weight (oz)
- 20
- Includes
- 1 qt FlexLiner Cup, #3 Quick Release Fluid Set
- Maximum Air Inlet Pressure (MPa)
- 0.07
- Maximum Air Inlet Pressure (psi)
- 11
- Maximum Air Pressure (MPa)
- 0.07
- Maximum Air Pressure (psi)
- 10
- Maximum Fluid Pressure (MPa)
- 0.35
- Maximum Fluid Pressure (psi)
- 50
- Model
- HVLP
- Product Type
- Spray Gun
- Series
- EDGE II Plus
- Sound Power Level (dB(A))
- 65.0
- Sound Pressure Level (dB(A))
- 65
- Spray Type
- HVLP
- Trigger Type
- Two-Finger
- Type
- Spray Gun
- Gun Weight (g)
- 570
- Gun Weight (kg)
- 0.57
- Maximum Air Inlet Pressure (bar)
- 0.7
- Maximum Air Inlet Pressure (kPa)
- 70
- Maximum Air Pressure (bar)
- 0.7
- Maximum Air Pressure (kPa)
- 70
- Maximum Fluid Pressure (bar)
- 3.5
- Maximum Fluid Pressure (kPa)
- 350
Standards & Compliance
- Pressure Rating
- 50 psi max
- HS Code
- 8424.20
Compatibility & Fitment
Spray gun. Confirm gun model/series, fluid orifice size, spray type (airless/HVLP) and host-sprayer compatibility against the coating and surface before ordering; bundled cups/tips are listed under "Includes" in the specifications.
