Product Description

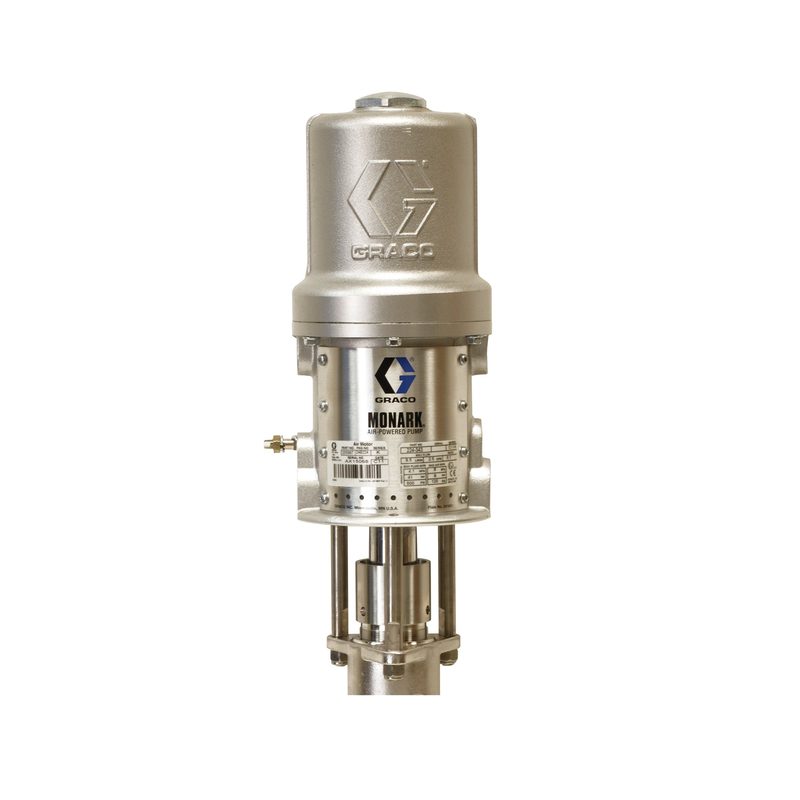

Graco 218956 Monark 5:1 Pneumatic 2-Ball Piston Pump, Carbon Steel, part number 218956. Pneumatic Piston Pump, 5:1 pressure ratio. Supply application. 2-Ball fluid section. 200 psi maximum working pressure. 2.1 gpm maximum flow rate. 60 cpm maximum continuous cycle rate. 180 psi maximum air inlet pressure. 3/8 in air inlet / 3/4 in fluid outlet. Wetted parts: Carbon Steel. PTFE seals. All values read from the Graco product page (218956 on graco.com).
Technical Specifications
- Brand
- Graco Family: Monark 5:1 Pneumatic 2-Ball Piston Pump Part number: 218956 Air Inlet Size (in): 3/8 Air Inlet Thread Gender: Female Air Inlet Thread Type: NPT Application: Supply Compatible material: Waterborne, Solventborne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stain, Varnish Fluid Outlet Size (in): 3/4 Fluid Outlet Thread Gender: Female Fluid Outlet Thread Type: NPT Fluid Section Type: 2-Ball Includes: drum Length material: Carbon Steel Maximum Air Inlet Pressure (psi): 180 Maximum Continuous Cycle Rate (CPM): 60 Maximum Flow Rate (GPM): 2.1 Maximum Operating Temperature (°F): 180 Maximum Working Pressure (psi): 200 Model: Monark Portable: Non-Portable Pump Ratio: 5:1 Seal material: PTFE Type: Pneumatic Piston Pump Wetted material: Carbon Steel Air Inlet Size (mm): 9.525 Fluid Outlet Size (mm): 19.05 Maximum Air Inlet Pressure (bar): 12.41 Maximum Flow Rate (L/min): 7.95 Maximum Operating Temperature (°C): 82 Maximum Working Pressure (bar): 14
Standards & Compliance
- Material
- Carbon Steel
- Pressure Rating
- 200 psi max
- Temperature Range
- up to 180 °F
- HS Code
- 8413.50
Compatibility & Fitment
Air-operated piston (2-ball) supply pump. Confirm pump ratio, wetted material, fluid outlet/air inlet sizes and air supply against the fluid and duty before ordering.
Product Documentation
More from Graco
Graco
Graco Contractor FTx Airless Spray Gun, 4 Finger Trigger, RAC X 515 SwitchTip
288430
Graco
Graco Contractor FTx Airless Spray Gun, 2 Finger Trigger, RAC X 515 SwitchTip
288429
Graco
Graco Contractor FTx Airless Spray Gun, 4 Finger Trigger, RAC 5 515 SwitchTip
288431
Graco
Graco RAC X SwitchTip, 547
LTX547
Graco
Graco PC-8E InvisiPac Pattern Controller, time or distance mode, with or without encoder, run up control (optional)
24X526
Graco
Graco PC-8 InvisiPac External Stand Alone Pattern Controller, time or distance mode, no encoder
24X525
Graco
Graco PC-8E InvisiPac Integrated Pattern Controller, time or distance mode, with or without encoder, run up control (optional)
24X524
Graco
Graco PC-8 InvisiPac Pattern Controller, time or distance mode, no encoder
24X523
Catalogue entry last verified: 2026-08-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 218956?
- 218956 can be ordered from cballast.com as a Graco catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Graco product?
- The manufacturer part number is 218956.
- What is the HS code for 218956?
- The customs tariff (HS) code for 218956 is 8413.50.
- Who manufactures 218956?
- 218956 is a Graco product in the Pumps range.
- Is a datasheet available for 218956?
- Yes — the 218956 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 218956?
- The minimum order quantity is 1.
- Is 218956 available?
- Yes — 218956 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
