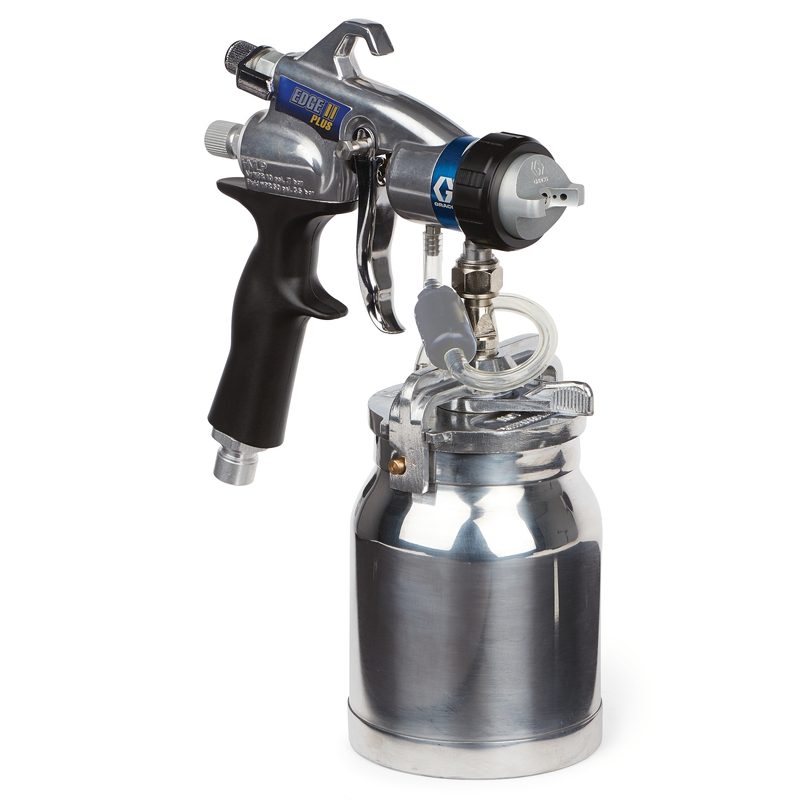

Graco EDGE II Plus Gun with Metal Cup
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 17P484 EDGE II Plus Gun with Metal Cup, part number 17P484. Spray Gun, EDGE II Plus series (HVLP Gun). HVLP spray. 50 psi maximum fluid pressure. 10 psi maximum air pressure. Two-Finger trigger. 20 oz gun weight. For use with FinishPro HVLP Sprayers. Includes 1 qt (0.95 L) Metal Cup, #3 Quick Release Fluid Set. All values read from the Graco product page (17P484 on graco.com).
Technical Specifications
- Brand
- Graco
- Family
- EDGE II Plus Gun with Metal Cup
- Part number
- 17P484
- Compatible Material
- Varnish, Enamel, Latex, Stains
- For Use With
- FinishPro HVLP Sprayers
- Gun Activation
- Manual
- Gun Type
- HVLP Gun
- Gun Weight (oz)
- 20
- Includes
- 1 qt (0.95 L) Metal Cup, #3 Quick Release Fluid Set
- Maximum Air Inlet Pressure (MPa)
- 0.07
- Maximum Air Inlet Pressure (psi)
- 12
- Maximum Air Pressure (MPa)
- 0.07
- Maximum Air Pressure (psi)
- 10
- Maximum Fluid Pressure (MPa)
- 0.35
- Maximum Fluid Pressure (psi)
- 50
- Model
- HVLP
- Series
- EDGE II Plus
- Sound Power Level (dB(A))
- 65.0
- Sound Pressure Level (dB(A))
- 65
- Spray Type
- HVLP
- Trigger Type
- Two-Finger
- Type
- Spray Gun
- Maximum Air Inlet Pressure (bar)
- 0.7
- Maximum Air Inlet Pressure (kPa)
- 70
- Maximum Air Pressure (bar)
- 0.7
- Maximum Air Pressure (kPa)
- 70
- Maximum Fluid Pressure (bar)
- 3.5
- Maximum Fluid Pressure (kPa)
- 350
Standards & Compliance
- Pressure Rating
- 50 psi max
- HS Code
- 8424.20
Compatibility & Fitment
Spray gun. Confirm gun model/series, fluid orifice size, spray type (airless/HVLP) and host-sprayer compatibility against the coating and surface before ordering; bundled cups/tips are listed under "Includes" in the specifications.
