Graco 390 PC Electric Airless Sprayer, Stand
Pricing
Request a quote
We reply within 24 hours
Product Description

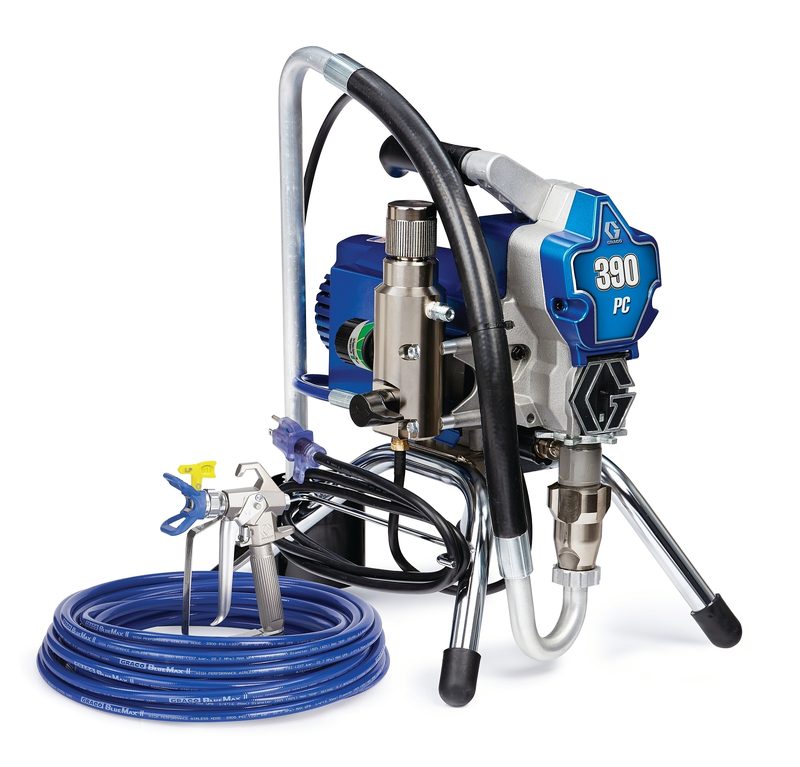

Graco 17C310 390 PC Electric Airless Sprayer, Stand, part number 17C310. Graco 390 PC Electric Airless Sprayer airless sprayer. Electric power source. 3300 psi maximum working pressure. Maximum tip size 0.021 in. Endurance pump. Stand frame. All values read from the Graco product page (17C310 on graco.com).
Technical Specifications
- Brand
- Graco Family: 390 PC Electric Airless Sprayer Part number: 17C310 Amperage (A): 13 Compatible material: Enamel, Lacquer, Latex Compatible Replacement Pump: 17C487 Cycles Per Gallon: 700 Engine Size (HP): 0.625 Features: Endurance Chromex Pump, Advantage Drive, ProConnect, Easy Out Filter Fluid Outlet Size (in): 1/4 Fluid Outlet Thread Type: NPSM Frame Configuration: Stand Includes: FTx Gun, RAC X LP 515 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL 4 oz Maximum Flow Rate (GPM): 0.47 Maximum Sound Pressure Level (dB(A)): 90 Maximum Tip Size (in): 0.021 Maximum Working Pressure (MPa): 22.8 Maximum Working Pressure (psi): 3300 minimum Generator Power (W): 3000 Motor Type: DC Number of Guns: 1 Outlet Paint Filter: 60 Mesh Stainless Steel Screen Overall Height (in): 18.5 Overall Length (in): 16 Overall Width (in): 14 Phase: 1 Power Rating (HP): 0.625 Power Rating (W): 466 Power Rating (kW): 0.47 Power Source: Electric Pump Mount Type: ProConnect Pump Rod Type: Chromex Pump Sleeve material: Hardened Steel Pump Type: Endurance Series: 390 PC Sound Power Level (dB(A)): 100 Type: Airless Sprayer Voltage (V): 120 Weight (lb): 34 Wetted material: Acetal, Aluminum, Fluoroelastomer, Leather, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel Fluid Outlet Size (mm): 6.35 Maximum Flow Rate (L/min): 1.8 Maximum Working Pressure (bar): 228 Maximum Working Pressure (kPa): 22800 Overall Height (cm): 47 Overall Height (mm): 470 Overall Length (cm): 40.6 Overall Length (mm): 406 Overall Width (cm): 35.6 Overall Width (mm): 356 Recommended Annual Usage: Up to 50 gallons per week Weight (kg): 15
Standards & Compliance
- Material
- Acetal, Aluminum, Fluoroelastomer, Leather, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
- Pressure Rating
- 3300 psi max
- HS Code
- 8424.20
Compatibility & Fitment
Complete spray system/package. Confirm power source/battery, maximum tip size, pump type and frame configuration against the coating and layout before ordering; bundled items are listed under "Includes" in the specifications.
Product Documentation
