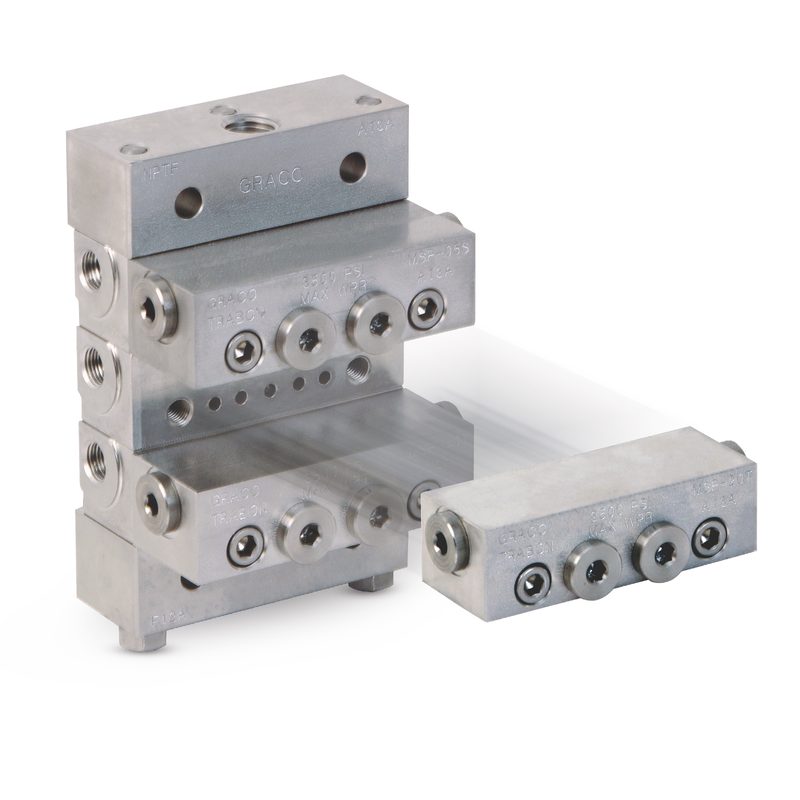

Graco Trabon® MSP Stainless Steel Divider Valve - 5 Section Base Plate Assembly, BSPP
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 24N390 Trabon® MSP Stainless Steel Divider Valve - 5 Section Base Plate Assembly, BSPP, part number 24N390. Trabon MSP progressive divider (metering) valve. 10 outlets. N/A in³ discharge per piston stroke. 3500 psi maximum working pressure. Stainless Steel body. Up to NLGI grade #2. All values read from the Graco product page (24N390 on graco.com).
Technical Specifications
- Brand
- Graco
- Family
- Trabon® MSP Stainless Steel Divider Valve - 5 Section Base Plate Assembly
- Part number
- 24N390
- Application
- On-Road Vehicles, Off-Road Equipment, In-Plant Machinery
- Compatible Material
- Oil, Grease
- Cycle Indicator
- None
- Discharge Per Piston Stroke (in³)
- N/A
- Divider Valve Series
- MSP
- Inlet Size (in)
- 1/4
- Inlet Thread Gender
- Female
- Inlet Thread Type
- BSPP
- Material
- Stainless Steel
- Maximum NLGI Grade
- #2
- Maximum Operating Temperature (°F)
- 350
- Maximum Working Pressure (psi)
- 3500
- Model
- Trabon
- Number of Outlets
- 10
- Outlet Size (in)
- 1/8
- Outlet Thread Gender
- Female
- Outlet Thread Type
- BSPP
- Type
- Divider Valve
- Maximum Operating Temperature (°C)
- 176
- Maximum Working Pressure (bar)
- 241
- Maximum Working Pressure (kPa)
- 24100
- Outlet Size (cm)
- 0.3175
- Outlet Size (mm)
- 3.175
Standards & Compliance
- Material
- Stainless Steel
- Pressure Rating
- 3500 psi max
- Temperature Range
- up to 350 °F
- HS Code
- 8481.80
Compatibility & Fitment
Progressive (series-progressive) divider valve for centralized lubrication. Confirm outlet count, discharge volume, port threads and lubricant NLGI grade against the lube layout before ordering.
Product Documentation
More from Graco
Graco

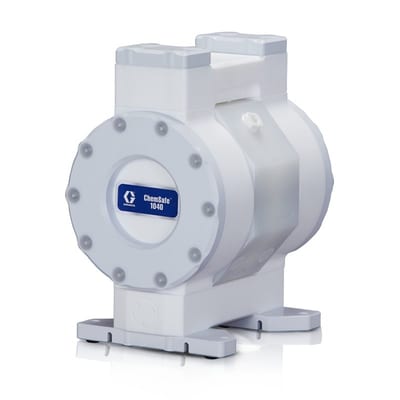

Graco ChemSafe 1040 Air Operated Double Diaphragm Pump with PTFE Seat, PTFE Ball, Overmolded PTFE Diaphragm, PTFE Fluid Path & NPT Port
24X423
Graco
Graco ChemSafe 1040 Air Operated Double Diaphragm Pump with PTFE Seat, PTFE Ball, Overmolded PTFE Diaphragm, PTFE Fluid Path & BSPT Port
24X424
Graco

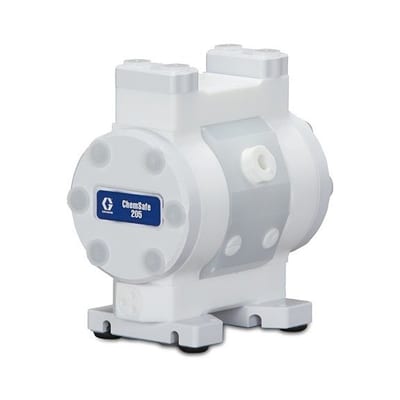

Graco ChemSafe 205 Air Operated Double Diaphragm Plastic Pump with PTFE Seat, PTFE Ball, Overmolded PTFE Diaphragm, PTFE Fluid Path & NPT Port
24X429
Graco
Graco ChemSafe 205 Air Operated Double Diaphragm Plastic Pump with PTFE Seat, PTFE Ball, Overmolded PTFE Diaphragm, PTFE Fluid Path & BSPT Port
24X430
Graco

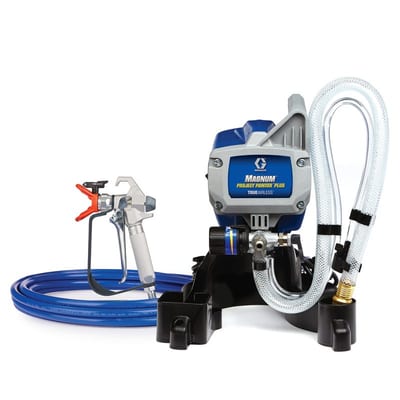

Graco Magnum Project Painter Plus Electric TrueAirless Sprayer
257025
Graco

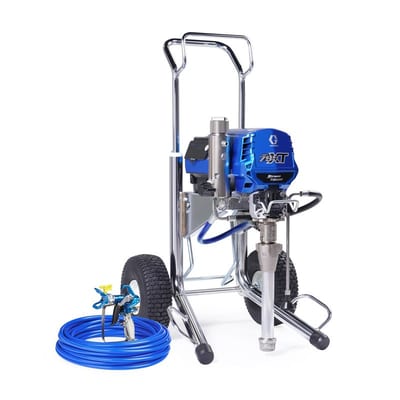

Graco Ultra 795 XT Standard Series Electric Airless Sprayer, Hi-Boy
19F710
Graco

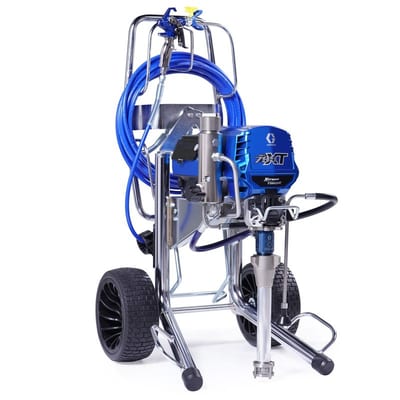

Graco Ultra 795 XT ProContractor Series Electric Airless Sprayer, Hi-Boy
19F711
Graco

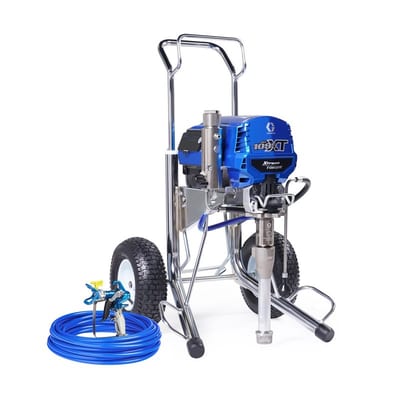

Graco Ultra 1095 XT Standard Series Electric Airless Sprayer, Hi-Boy
