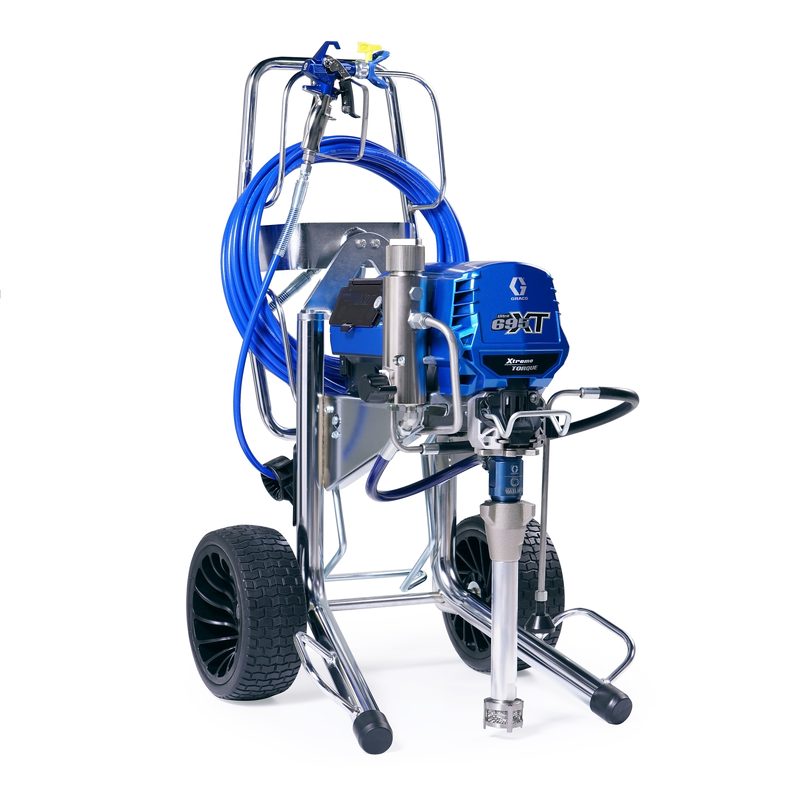

Graco Ultra 695 XT ProContractor Series Electric Airless Sprayer, Hi-Boy
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 19F547 Ultra 695 XT ProContractor Series Electric Airless Sprayer, Hi-Boy, part number 19F547. Graco Ultra 695 XT ProContractor Series Electric Airless Sprayer airless sprayer. 3300 psi maximum working pressure. Maximum tip size.031 in. Hi-Boy frame. All values read from the Graco product page (19F547 on graco.com).
Technical Specifications
- Brand
- Graco Family: Ultra 695 XT ProContractor Series Electric Airless Sprayer Part number: 19F547 Fluid Outlet Size (in): 1/4 Fluid Outlet Thread Type: NPSM Frame Configuration: Hi-Boy Gun Model: Contractor PC Gun Technology: Airless Maximum Flow Rate (GPM): 1.05 Maximum Fluid Working Pressure (psi): 3300 Maximum Tip Size (in): .031 Maximum Working Pressure (MPa): 22.8 Maximum Working Pressure (psi): 3300 minimum Generator Power (W): 5000 minimum Working Pressure (psi): 50 Model: Ultra Overall Height (in): 41.3 Overall Length (in): 27.5 Overall Width (in): 22.6 Product Series: ProContractor Series: 695 XT Type: Airless Sprayer Voltage (V): 120 Weight (lb): 112 Maximum Flow Rate (L/min): 4 Maximum Working Pressure (bar): 228 Overall Height (cm): 104.9 Overall Length (cm): 69.9 Overall Width (cm): 57.4 Weight (kg): 51
Standards & Compliance
- Pressure Rating
- 3300 psi max
- HS Code
- 8424.20
Compatibility & Fitment
Complete spray system/package. Confirm power source/battery, maximum tip size, pump type and frame configuration against the coating and layout before ordering; bundled items are listed under "Includes" in the specifications.
Product Documentation
More from Graco
Graco
Graco Ultra 695 XT Standard Series Electric Airless Sprayer, Lo-Boy
19F553
Graco
Graco 390 PC Electric Airless Sprayer, Hi-Boy
17C313
Graco
Graco 390 PC Electric Airless Sprayer, Stand
17C310
Graco
Graco Trabon® MSP Stainless Steel Divider Valve - 5 Section Base Plate Assembly, BSPP
24N390
Graco
Graco ChemSafe 1040 Air Operated Double Diaphragm Pump with PTFE Seat, PTFE Ball, Overmolded PTFE Diaphragm, PTFE Fluid Path & NPT Port
24X423
Graco
Graco ChemSafe 1040 Air Operated Double Diaphragm Pump with PTFE Seat, PTFE Ball, Overmolded PTFE Diaphragm, PTFE Fluid Path & BSPT Port
24X424
Graco
Graco ChemSafe 205 Air Operated Double Diaphragm Plastic Pump with PTFE Seat, PTFE Ball, Overmolded PTFE Diaphragm, PTFE Fluid Path & NPT Port
24X429
Graco
Graco ChemSafe 205 Air Operated Double Diaphragm Plastic Pump with PTFE Seat, PTFE Ball, Overmolded PTFE Diaphragm, PTFE Fluid Path & BSPT Port
24X430
Catalogue entry last verified: 2026-08-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 19F547?
- 19F547 can be ordered from cballast.com as a Graco catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Graco product?
- The manufacturer part number is 19F547.
- What is the HS code for 19F547?
- The customs tariff (HS) code for 19F547 is 8424.20.
- Who manufactures 19F547?
- 19F547 is a Graco product in the Tools & Workshop Consumables range.
- Is a datasheet available for 19F547?
- Yes — the 19F547 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 19F547?
- The minimum order quantity is 1.
- Is 19F547 available?
- Yes — 19F547 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
