Product Description

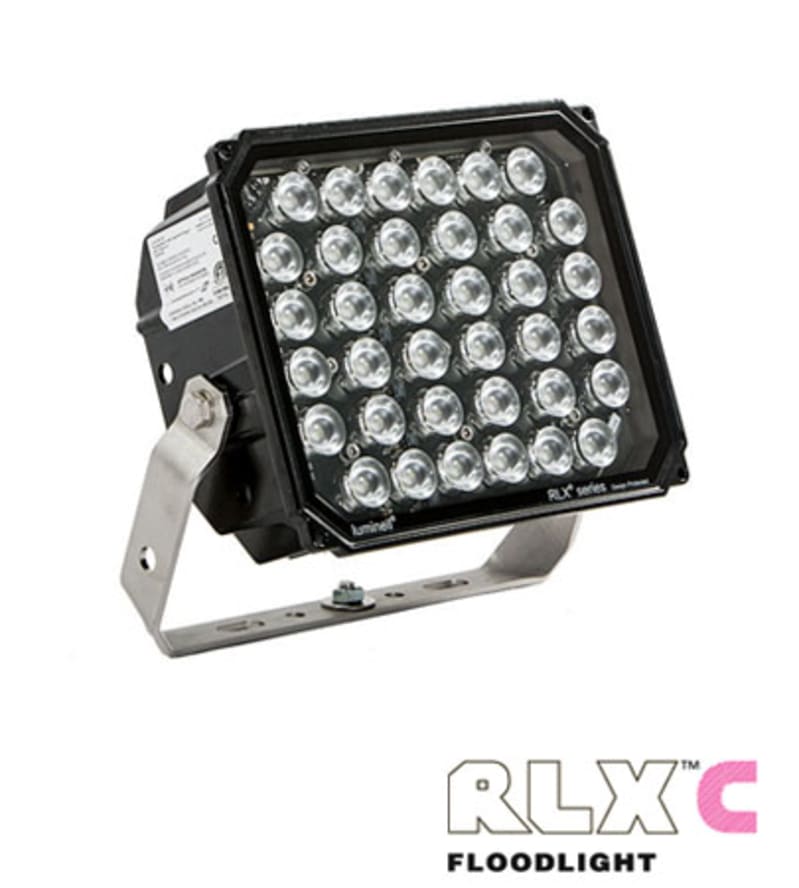

Glamox LN1001200 RLX C Floodlight 80W 24VDC dimmable Medium Beam 40.
Technical Specifications
- Manufacturer part number (MPN)
- LN1001200 EAN / GTIN: 7072720000601 HS code: 8543.70 Sales unit: pcs EMC Category: EMC1 : EMC B – IEC 60533 Bridge and Open deck Main Feed DC (V) Min: 19 Main Feed DC (V) Max: 30 Total consumption (W): 80 Certification: DNV Marine Approved: Yes minimum ambient temperature (ºC): -40 Maximum ambient temperature (°C): 55 IP classification: 66/67 Corrosion class: C5-M Light source: LED Lumen out (lm): 9.321 Lumen per Watt (lm/W): 117 Lamp colour temp (K): 5000 CRI Colour rendering index: >70 Light source included: Yes Dimmable: Yes Beam angle (°): 40 Optic: MB40 - Medium Beam 40° Type of LED Driver: HFDa: Dimming Analogue 1-10V L70 Median useful life LED Ta45 (hr): 100000 Main body material: Seawater-resistant aluminium Surface treatment: Anodized Body colour: BL - Black Main body colour name: Graphite black Main body colour surface: Powder coated Main body colour RAL code: RAL 9011 Mounting bracket material: Stainless steel AISI 316 Length (mm): 293 Width (mm): 113 Height (mm): 262 Net weight (kg): 6.44 Termination: 2x2x2.5mm2 Push In Cable gland: M20-Nickel plated brass Number of cable glands: 1 Blind plugs: M20-Nickel plated brass Number of blind plugs: 1 Max cable diameter (mm): 13 Min cable diameter (mm): 7 Item gross weight (kg): 7
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 7072720000601
- SAP 1200575730
- Code 82939768
Product Documentation
Document preview: RLXC 80WDC2D MB40 2ABAABK (LN1001200) — Specification sheet
