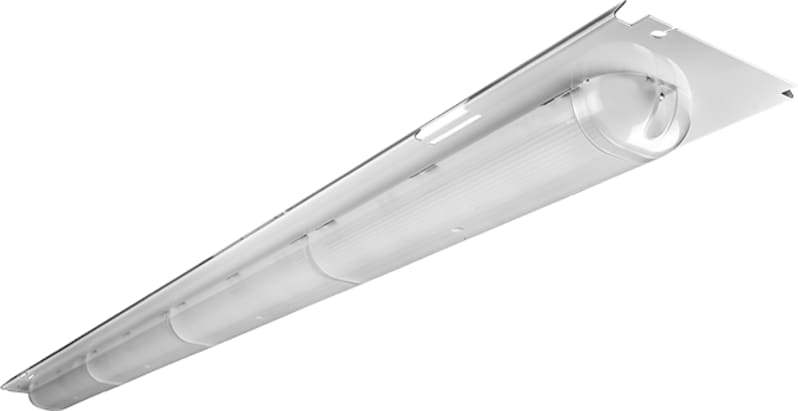

MAX KIT-1200 LED 4500 HF 840

Glamox MAX085665 Industry product, for mounting.

Manufacturer part number (MPN)

MAX085665 EAN / GTIN: 7054130856658 Sales unit: pcs EMC Category: EMC1 : EMC B – IEC 60533 Bridge and Open deck Leakage current (mA): 0.80 Voltage from (V): 110 Maximum voltage (V): 254 minimum frequency (Hz): 50 Maximum frequency (Hz): 60 Main Feed DC (V) Min: 198 Main Feed DC (V) Max: 250 Total consumption (W): 34 Number of luminaires on a 10A MCB type B: 15 Number of luminaires on a 10A MCB type C: 25 Number of luminaires on a 16A MCB type B: 24 Number of luminaires on a 16A MCB type C: 40 Certification: 5 year warranty,ATEX,Ex Zone 1,IECEx Marine Approved: Yes Ignition Class: T4135° Atex start code: II 2GD Class Ex Gas: Ex eb mb IIC Gb Class Ex Dust: Ex tb IIIC T Db Max surface temp Dust: 81 EX zone: Ex zone 1,Ex zone 2,Ex zone 21,Ex zone 22 minimum ambient temperature (ºC): -30 Maximum ambient temperature (°C): 55 Light source: LED Lumen out (lm): 4.491 Lumen per Watt (lm/W): 132 Lamp colour temp (K): 4000 CRI Colour rendering index: >80 Light distribution up %: 5 Light distribution down %: 95 MacAdam step: 3 Energy class light source: D Light source included: Yes Type of LED Driver: HF: Non dimmable Number of Driver: 1 L70 Median useful life LED Ta25 (hr): 100000 Optic: PC - Clear polycarbonate diffuser Main body material: Aluminium/ zinc-treated steel Body colour: WH - White Main body colour name: White Length (mm): 1.250 Width (mm): 120 Height (mm): 128 Net weight (kg): 5.12 Item gross weight (kg): 5.56

• EAN 7054130856658
• SAP 1200015556
• Code 81425778
