Glamox
C77-S150X1200 WH 3000 HF 830 SM
Part numberC77099264EAN / GTIN7054130992646HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

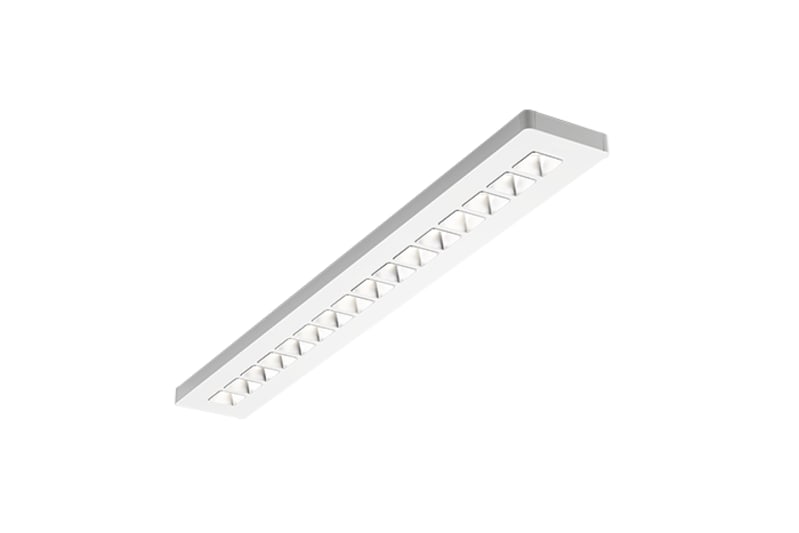

Glamox C77099264 C77 is a series slim luminaires with rounded corners and et commercial appearance.
Technical Specifications
- Manufacturer part number (MPN)
- C77099264 EAN / GTIN: 7054130992646 Sales unit: pcs Product shape: Rectangular Certification: ENEC minimum TA (ºC): -25 Maximum TA (ºC): 45 IK classification: 08 IP classification: 20 Light source: LED Lumen Out (lm): 3.106 Lumen Per Watt (lm/W): 133 Lamp colour temp (K): 3000 Colour Rendering Index: >80 MacAdam step: 3 Energy Class Light Source: D Type of LED Driver: HF: Non dimmable Number of Driver: 1 LED Lifetime L80B50 Ta25 (h): 100000 Driver lifetime at Ta=25, 10% failure rate (h): 100.000 Driver lifetime at Ta=45, 10% failure rate (h): 50.000 Luminous flux decline (LLMF) 50.000h Ta25: 0.96 Main Feed AC (V) Min: 220 Main Feed AC (V) Max: 240 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Main Feed DC (V) Min: 186 Main Feed DC (V) Max: 250 Total Consumption (W): 23.43 Number Of Luminaire MCB 10B: 12 Number Of Luminaire MCB 10C: 21 Number Of Luminaire MCB 16C: 35 Optic Name: SM - Silver matt reflector UGR (70/50/20 & 4H-8H crosswise): 18 Optic main category: Reflector Body material: Steel Body Colour: WH - White Main Body Colour Name: Traffic white Main Body Colour RAL code: RAL 9016 Length (mm): 1.179 Width (mm): 151 Height (mm): 54 Item Net Weight (kg): 4.08 Termination: 5x2x2.5mm2 Push In Repairable/Changeable Parts: LED module,Internal driver Packaging material: Cardboard,Recycled cardboard Product Mounting: Ceiling surface Item Gross Weight (kg): 4.44
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7054130992646
- SAP 1200713199
- Code 83835950
Product Documentation
Document preview: C77-S150X1200 WH 3000 HF 830 SM (C77099264) — Specification sheet
