Glamox

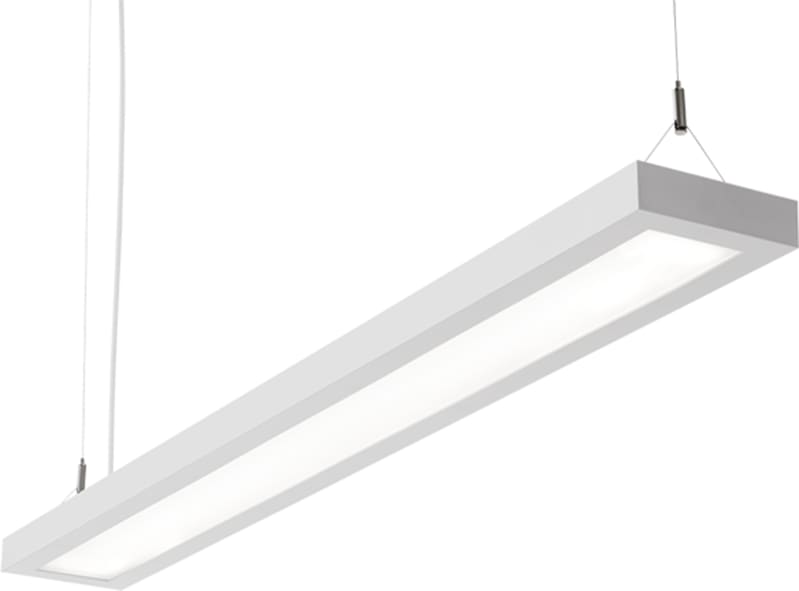

C70-P 5800 DALI 830 PRE C2 MP
Part numberC70226589EAN / GTIN7332402265897
Lighting & Electrical Accessories
LED Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Glamox C70226589 C70-P1280 40/60 LED 5800 DALI 830 PRE C2 MP.
Technical Specifications
- Manufacturer part number (MPN)
- C70226589
- EAN / GTIN
- 7332402265897
- Sales unit
- pcs
- Product shape
- Rectangular
- Certification
- ENEC
- Leakage Current (mA)
- 0.23
- Main Feed AC (V) Min
- 220
- Main Feed AC (V) Max
- 240
- Main Feed Frequency Min
- 50
- Main Feed Frequency Max
- 60
- Total Consumption (W)
- 45
- Number Of Luminaire MCB 10B
- 11
- Number Of Luminaire MCB 10C
- 19
- Number Of Luminaire MCB 16C
- 31
- Number of DALI addresses
- 1
- LMS Protocol
- DALI
- Maximum TA (ºC)
- 30
- IP classification
- 20
- Light source
- LED
- Lumen Out (lm)
- 5.663
- Lumen Per Watt (lm/W)
- 126
- Lamp colour temp (K)
- 3000
- Colour Rendering Index
- >80
- Light Distribution Up %
- 40
- Light Distribution Down %
- 60
- MacAdam step
- 3
- Energy Class Light Source
- D
- Type of LED Driver
- DALI: Dimming
- Number of Driver
- 1
- LED Lifetime L80B50 Ta25 (h)
- 100000
- LED Lifetime L90B50 Ta25 (h)
- 50000
- Driver lifetime at Ta=25, 10% failure rate (h)
- 100.000
- Luminous flux decline (LLMF) 50.000h Ta25
- 0.90
- Optic Name
- MP - Micro prismatic diffuser
- UGR (70/50/20 & 4H-8H crosswise)
- 18
- Diffuser Material
- Acrylic
- Diffuser Material Design
- Prismatic
- Optic main category
- Diffuser
- Body Material
- Steel
- Body Colour
- WH - White
- Main Body Colour Name
- White
- Detail Material
- Polycarbonate
- Length (mm)
- 1.280
- Width (mm)
- 154
- Height (mm)
- 40
- Item Net Weight (kg)
- 4.14
- Cable Cross section (mm²)
- 0.75
- Cable End / Plug Name
- Open End
- Cable Length (m)
- 2
- Cable Material
- PVC
- No of Leads
- 5
- Cable diameter variation max (mm)
- 8
- Mounting Accessories
- PRE-P
- Product Mounting
- Pendant
- Repairable/Changeable Parts
- LED module,Internal driver,Optic,Sensor
- Packaging Material
- Plastic,Cardboard,Recycled cardboard
- Item Gross Weight (kg)
- 4.50
Cross References
- EAN 7332402265897
- SAP 1200109094
- Code 81966025
Product Documentation
Document preview: C70-P 5800 DALI 830 PRE C2 MP (C70226589) — Specification sheet
