Glamox

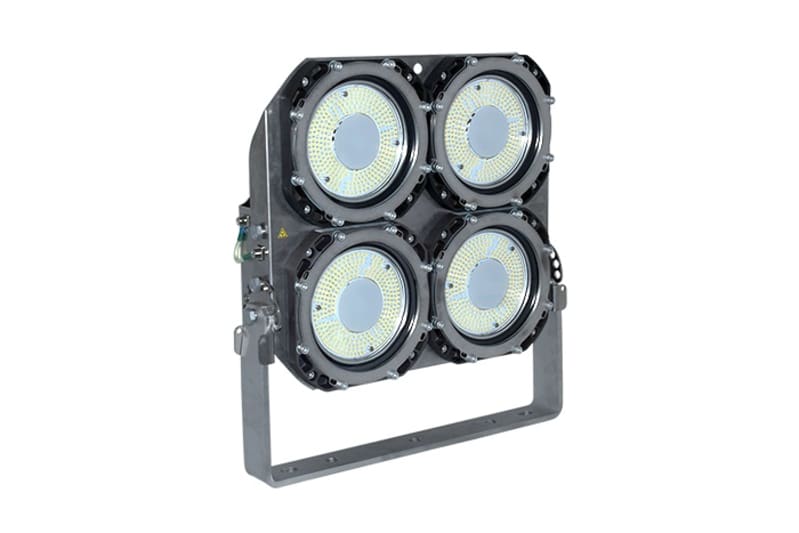

FX61 18000 850 230 M25 MB ST
Part numberFX61401001EAN / GTIN4036538582417
Hazardous Area Equipment
ATEX Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Glamox FX61401001 FX61 18000 850 230 M25 MB STEEL.
Technical Specifications
- Manufacturer part number (MPN)
- FX61401001 EAN / GTIN: 4036538582417 Sales unit: pcs Mains current: 0.72 EMC Category: EMC1 : EMC B – IEC 60533 Bridge and Open deck minimum Voltage -10% (VAC): 230 minimum frequency -5% (Hz): 50 Maximum frequency +5% (Hz): 60 Total consumption (W): 160 Number of luminaires on a 10A MCB type B: 11 Output angle (°): 80 Optic: MB - Medium beam Marine Approved: Yes Ignition Class: T4135° Atex code: II 2G Class Ex Dust: Ex db IIC T4 Gb EX zone: Ex zone 1,Ex zone 2,Ex zone 21,Ex zone 22 minimum ambient temperature (ºC): -50 Maximum ambient temperature (°C): 55 IK classification: 10 IP classification: 66/67 Corrosion class: C5-M Light source: LED Lumen out (lm): 17.404 Lumen per Watt (lm/W): 112 Lamp colour temp (K): 5000 CRI Colour rendering index: >80 MacAdam step: 3 Light source included: Yes Type of LED Driver: IC No Of Ballast: 4 Main body material: Seawater-resistant aluminium Body colour: Unpainted material Junction Box: Stainless steel Length (mm): 444 Width (mm): 475 Height (mm): 220 Net weight (kg): 17.94 Number of cable glands: 2 Max cable diameter (mm): 20 Min cable diameter (mm): 13 Item gross weight (kg): 19.50
Cross References
- EAN 4036538582417
- SAP 1200336704
- Code 82324138
Product Documentation
Document preview: FX61 18000 850 230 M25 MB ST (FX61401001) — Specification sheet
More from Glamox
Glamox
Universal LED-kit 1X1200 (1X36W) 2800
ULK103605
Glamox

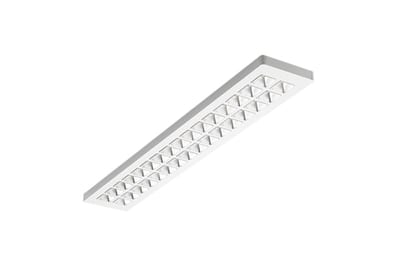

C77-S200X1200 WH 4000 D 840 MPW-SEN SM
C77099843
Glamox
C77-S200X1200 WH 5000 DALI 830 SM
C77099257
Glamox

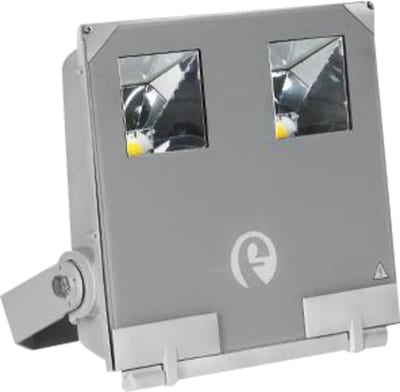

Next 2 LED 14000 DALI 740 ASY
3330253
Glamox
C77-S200X1200 WH 5000 DALI 840 SM
C77099258
Glamox
Clips Diffuser MAX 18/36W
PA160116000
Glamox
D70-R195 G2 1400 HF 830 LI SM/WH
D70554436
Glamox
C25-R300X1200 4000 DALI 830 MP
C25529098
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
