Glamox
C77-S200X1200 WH 5000 DALI 840 SM
Part numberC77099258EAN / GTIN7054130992585HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

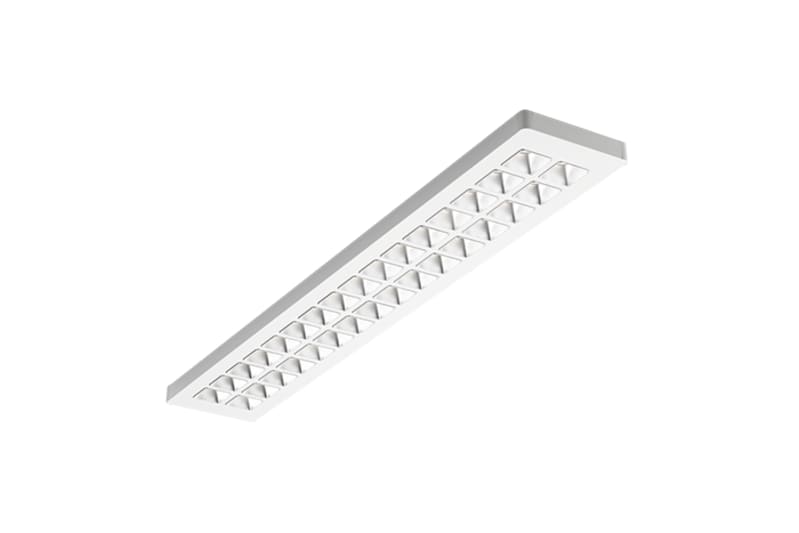

Glamox C77099258 C77-S200x1200 WH 5000 DALI 840 SM.
Technical Specifications
- Manufacturer part number (MPN)
- C77099258 EAN / GTIN: 7054130992585 Sales unit: pcs Product shape: Rectangular EPD (Environmental Product Declaration): Yes Certification: ENEC DALI 2 certified: Yes Number of DALI addresses: 1 LMS Protocol: DALI minimum TA (ºC): -25 Maximum TA (ºC): 35 IK classification: 08 IP classification: 20 Light source: LED Lumen Out (lm): 5.058 Lumen Per Watt (lm/W): 146 Lamp colour temp (K): 4000 Colour Rendering Index: >80 MacAdam step: 3 Energy Class Light Source: D minimum Dim Level (%): 1 Type of LED Driver: DALI: Dimming Number of Driver: 1 LED Lifetime L80B50 Ta25 (h): 100000 Driver lifetime at Ta=25, 10% failure rate (h): 100.000 Driver lifetime at Ta=45, 10% failure rate (h): 50.000 Luminous flux decline (LLMF) 50.000h Ta25: 0.96 Main Feed AC (V) Min: 220 Main Feed AC (V) Max: 240 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Total Consumption (W): 34.57 Number Of Luminaire MCB 10B: 12 Number Of Luminaire MCB 10C: 21 Number Of Luminaire MCB 16C: 35 Optic Name: SM - Silver matt reflector UGR (70/50/20 & 4H-8H crosswise): 17 Optic main category: Reflector Body material: Steel Body Colour: WH - White Main Body Colour Name: Traffic white Main Body Colour RAL code: RAL 9016 Length (mm): 1.179 Width (mm): 191 Height (mm): 54 Item Net Weight (kg): 4.75 Termination: 5x2x2.5mm2 Push In Cradle To Gate A1-A3 (Kg C02-eq): 80.13 Total Recyclable material %: 64.88 Actual Recycled material - EN15804 %: 48.62 Repairable/Changeable Parts: LED module,Internal driver Packaging material: Cardboard,Recycled cardboard Product Mounting: Ceiling surface Item Gross Weight (kg): 5.16
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7054130992585
- SAP 1200790575
- Code 83957635
Product Documentation
Document preview: C77-S200X1200 WH 5000 DALI 840 SM (C77099258) — Specification sheet
