C77-S200X1200 WH 4000 D 840 MPW-SEN SM

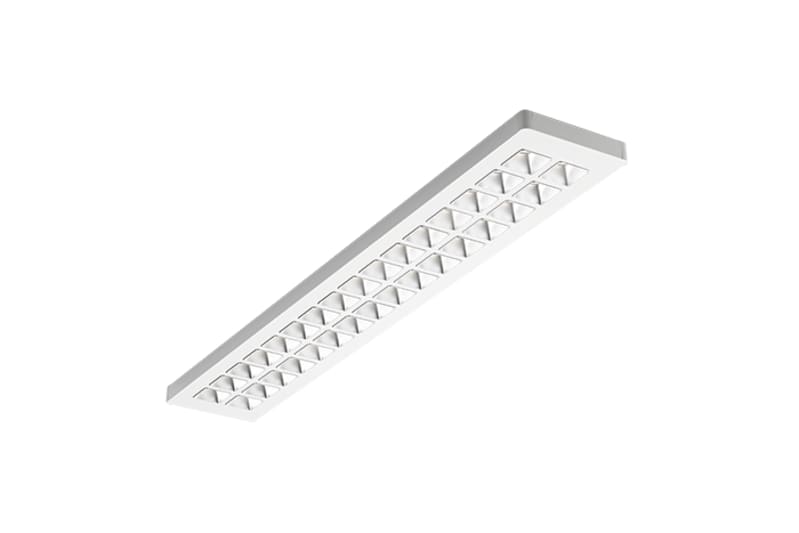

Glamox C77099843 Surface-mounted luminaire with optikk.

Manufacturer part number (MPN)

C77099843 EAN / GTIN: 7054130998433 HS code: 8543.70 Sales unit: pcs Product shape: Rectangular User Control: App Type of User Interface: Screen User Control Short Text: App based control Certification: ENEC DALI 2 certified: Yes minimum TA (ºC): -25 Maximum TA (ºC): 40 IK classification: 08 IP classification: 20 Light source: LED Lumen Out (lm): 4.085 Lumen Per Watt (lm/W): 144 Lamp colour temp (K): 4000 Colour Rendering Index: >80 MacAdam step: 3 Energy Class Light Source: D minimum Dim Level (%): 1 Type of LED Driver: WZ: Wireless Zigbee Number of Driver: 1 LED Lifetime L80B50 Ta25 (h): 100000 Driver lifetime at Ta=25, 10% failure rate (h): 100.000 Driver lifetime at Ta=45, 10% failure rate (h): 50.000 Luminous flux decline (LLMF) 50.000h Ta25: 0.96 Main Feed AC (V) Min: 220 Main Feed AC (V) Max: 240 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Total Consumption (W): 28.42 Number Of Luminaire MCB 10B: 12 Number Of Luminaire MCB 10C: 21 Number Of Luminaire MCB 16C: 35 Sensor Type: PIR+Daylight harvesting (CLS) Pre-set functionality daylight sensor: CLS Light Sensor Max Lux: 999 Light Sensor Min Lux: 0 Sensor Cover Cross (°): 62 Sensor Cover Length (°): 84 Sensor Cover Cross Presence: 45 Max mounting height: 3 Max Hold Time: Programmable Min Hold Time: 5 sec Optic Name: SM - Silver matt reflector UGR (70/50/20 & 4H-8H crosswise): 16 Optic main category: Reflector Body material: Steel Body Colour: WH - White Main Body Colour Name: Traffic white Main Body Colour RAL code: RAL 9016 Length (mm): 1.179 Width (mm): 191 Height (mm): 54 Item Net Weight (kg): 4.86 Termination: 5x2x2.5mm2 Push In Repairable/Changeable Parts: LED module,Internal driver Packaging material: Cardboard,Recycled cardboard Product Mounting: Ceiling surface Item Gross Weight (kg): 5.28

HS Code

8543.70

• EAN 7054130998433
• SAP 1200713185
• Code 83819161
