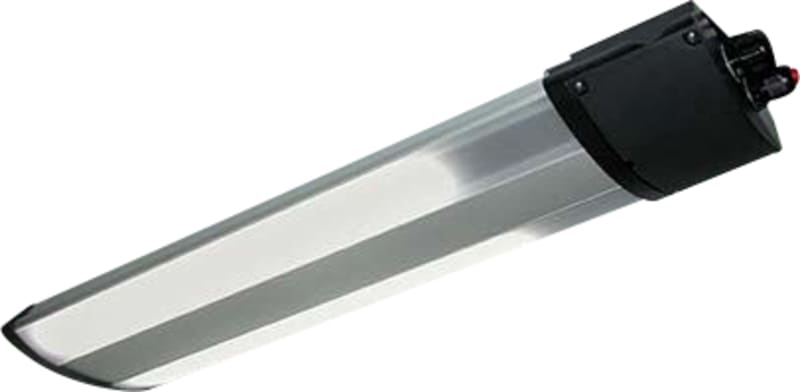

TX60 2200 850 230 M25 AS

Glamox TX60095400 TX60 2200 850 230 M25 AS.

Manufacturer part number (MPN)

TX60095400 EAN / GTIN: 4036538579776 Sales unit: pcs Mains Current: 0.103 EMC Category: EMC1 : EMC B – IEC 60533 Bridge and Open deck Main Feed AC (V) Min: 230 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Total Consumption (W): 23 Number Of Luminaire MCB 10B: 78 Number Of Luminaire MCB 16B: 124 Certification: ATEX,IECEx Marine Approved: Yes Ignition Class: T5100° Atex start Code: II 2GD Class Ex Gas: Ex eb mb op is IIC Gb Class Ex Dust: Ex tb op is IIIC Db Max Surface Temp Dust: 100 EX zone: Ex zone 1,Ex zone 2,Ex zone 21,Ex zone 22 minimum TA (ºC): -40 Maximum TA (ºC): 55 IK classification: 10 IP classification: 66/67 Corrosion class: C5-M Light source: LED Lumen Out (lm): 2.076 Lumen Per Watt (lm/W): 90 Lamp colour temp (K): 5000 Colour Rendering Index: >80 MacAdam step: 3 Light Source Included: Yes Type of LED Driver: IC Number of Driver: 2 LED Lifetime L70B50 Ta45 (h): 100000 Optic Name: OP/PC - Opal diffuser in polycarbonate Diffuser material: Polycarbonate Optic main category: Diffuser Body material: Seawater-resistant aluminium Body Colour: GR - Grey Main Body Colour Name: Silver grey End Cap Colour: BL - Black Mounting bracket type: AS Mounting Bracket material: Stainless steel Length (mm): 718 Width (mm): 174 Height (mm): 75 CC max: 400 Item Net Weight (kg): 3.68 Maximum Core Diameter: 6 mm2 minimum Core Diameter: 0.5 mm2 Cable Gland: M25-Polyamide Number of Glands: 2 Blinds: M25-Polyamide Number of Blinds: 1 Max Cable Diameter (mm): 17 Min Cable Diameter (mm): 11 Item Gross Weight (kg): 4 Min Storage Temp: -50 Max Storage Temp: 80

• EAN 4036538579776
• SAP 1200336714
• Code 82324163
