Glamox

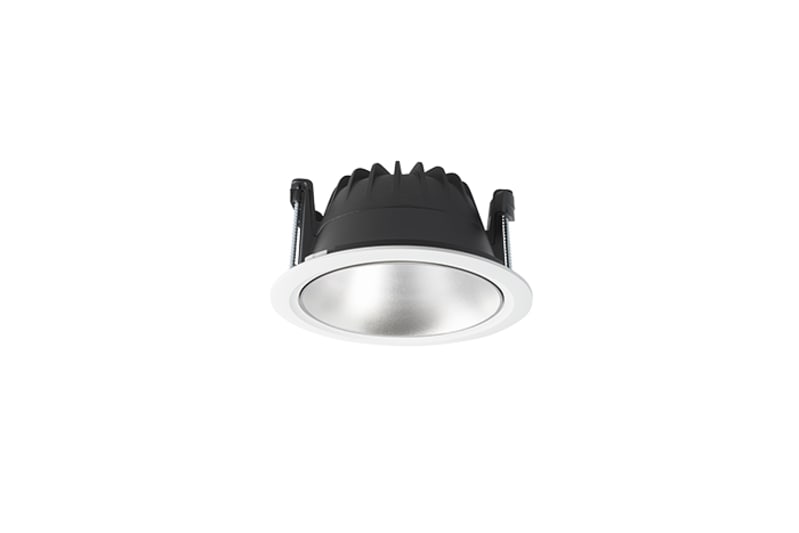

D70-R155 G2 2200 DALI 830 LI SM/WH
Part numberD70554389EAN / GTIN4741145543897
Lighting & Electrical Accessories
Track Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Glamox D70554389 D70-R155 G2 2200 DALI 830 LI SM/WH.
Technical Specifications
- Manufacturer part number (MPN)
- D70554389 EAN / GTIN: 4741145543897 Sales unit: pcs Product shape: Round EPD (Environmental Product Declaration): Yes Certification: ENEC LMS Protocol: DALI minimum TA (ºC): -20 Maximum TA (ºC): 35 IP classification: 54 from underneath \ 20 from above Light source: LED Lumen Out (lm): 2.141 Number Of Light Source: 1 Lumen Per Watt (lm/W): 133 Lamp colour temp (K): 3000 Colour Rendering Index: >80 Light Distribution Up %: 0 Light Distribution Down %: 100 MacAdam step: 3 Energy Class Light Source: C Type of LED Driver: DALI: Dimming DALI-2 part 251, 252, 253: Yes Number of Driver: 1 LED Lifetime L80B50 Ta25 (h): >100000 LED Lifetime L90B50 Ta25 (h): 100000 Luminous flux decline (LLMF) 50.000h Ta25: 0.95 Main Feed AC (V) Min: 220 Main Feed AC (V) Max: 240 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Total Consumption (W): 16 IEC Protection Class: II Number Of Luminaire MCB 10B: 47 Number Of Luminaire MCB 16B: 75 Number Of Luminaire MCB 20C: 94 Optic Name: SM - Silver matt reflector UGR (70/50/20 & 4H-8H crosswise): 20 Optic main category: Reflector Body material: Aluminium Main Body material Production Method: Die-casted Body Colour: WH - White Main Body Colour Name: White Decor material: ABS plastic Height (mm): 78 Diameter (mm): 168 Cut out (mm): 155 Item Net Weight (kg): 0.81 Cut out diameter: 155 Termination: 5x2x2.5mm2 Push In Plug Type: Linect Repairable/Changeable Parts: LED module,Internal driver,Optic,Sensor Packaging material: Cardboard Product Mounting: Ceiling recessed Item Gross Weight (kg): 0.88
Cross References
- EAN 4741145543897
- SAP 1200790589
- Code 83957638
Product Documentation
Document preview: D70-R155 G2 2200 DALI 830 LI SM/WH (D70554389) — Specification sheet
