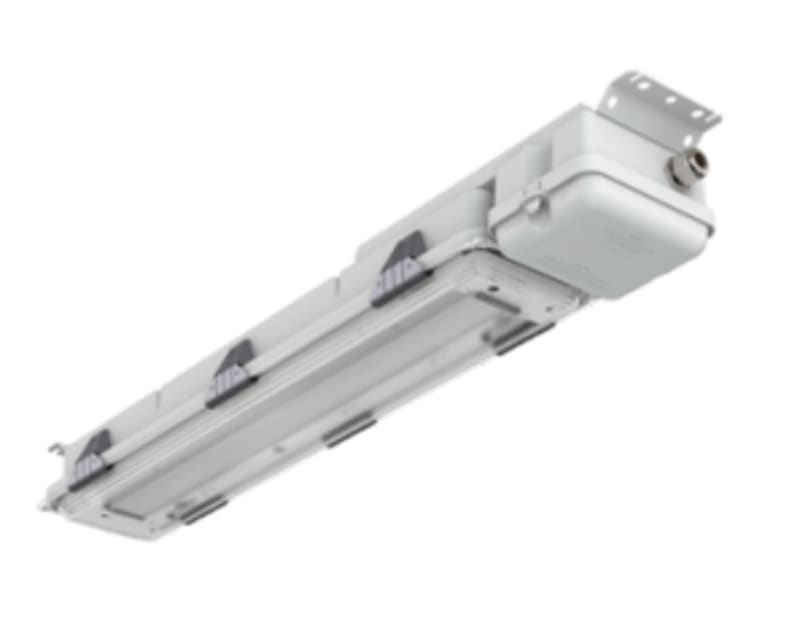

MAXS67-600 G2 2500HF EB3/S 840 BN25

Glamox MAX102849 MAXS67-600 G2 2500 HF EB3/S 840 TW BN25 FR/PC 220-254V.

Manufacturer part number (MPN)

MAX102849 EAN / GTIN: 7054131028498 Sales unit: pcs Product shape: Linear Remarks: The battery is charging down to 0°C, discharging down to -20°C EMC Category: EMC1 : EMC B – IEC 60533 Bridge and Open deck Leakage Current (mA): 0.45 Main Feed AC (V) Min: 220 Main Feed AC (V) Max: 254 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Main Feed DC (V) Max: 250 Total Consumption (W): 23 Inrush current (A): 22 Number Of Luminaire MCB 10B: 15 Number Of Luminaire MCB 10C: 25 Number Of Luminaire MCB 16B: 24 Number Of Luminaire MCB 16C: 40 Certification: ATEX,IECEx,CNBOP Marine Approved: Yes Ignition Class: T4135° Atex start Code: II 2GD Class Ex Gas: Ex eb mb IIC Gb Class Ex Dust: Ex tb IIIC Db Max Surface Temp Dust: 81 EX zone: Ex zone 1,Ex zone 2,Ex zone 21,Ex zone 22 minimum TA (ºC): -20 Maximum TA (ºC): 50 IK classification: 10 IP classification: 66/67 Corrosion class: CX-VH Light source: LED Lumen Out (lm): 2.803 Number Of Light Source: 1 Lumen Per Watt (lm/W): 122 Lamp colour temp (K): 4000 Colour Rendering Index: >80 Light Distribution Down %: 99 MacAdam step: 3 Energy Class Light Source: D Light Source Included: Yes Type of LED Driver: HF: Non dimmable Number of Driver: 1 LED Lifetime L70B50 Max Ta (h): 100000 Luminous flux decline (LLMF) 50.000h Ta25: 0.90 Emergency Type: S = Standard Duration (hrs): 3 Charging power consumption (Emg) (W): 1.50 Percentage Light Out In Emergency: 36 Battery Type: NiCd Battery Form: Multi Battery Box Battery mAh: 4.000 Battery Voltage (V): 7.20 Battery Sparepart No: PM220105801 Optic Name: FR/PC - Frosted diffuser in polycarbonate Diffuser material: Polycarbonate Optic main category: Diffuser Body material: Stainless Steel 316L Body Colour: WH - White Main Body Colour Name: White Mounting bracket type: GL std. Length (mm): 858 Width (mm): 161 Height (mm): 100 CC Min: 838 CC max: 838 Item Net Weight (kg): 6.81 Termination: 6x6.0mm2 Screw Terminal Through Wiring: 6x2.5 Cable Gland: M25-Nickel plated brass Number of Glands: 2 Blinds: M25-Nickel plated brass Number of Blinds: 1 Max Cable Diameter (mm): 18 Min Cable Diameter (mm): 10 Repairable/Changeable Parts: Internal driver,LED module,Optic Packaging material: Recycled cardboard Product Mounting: Ceiling surface,Wall surface Item Gross Weight (kg): 7.40

• EAN 7054131028498
• SAP 1200851988
• Code 84057377
