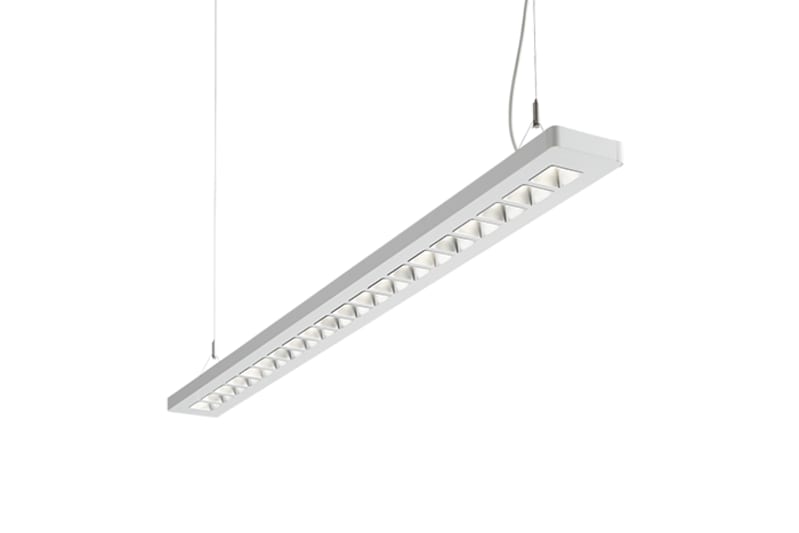

C77-P125X1500 WH 30/70 8000 WR (C77102387)

Glamox C77102387 C77-P125x1500 WH 30/70 8000 WR-G4 840 CPW2-SEN PRE C2.5 SM.

Manufacturer part number (MPN)

C77102387 EAN / GTIN: 7054131023875 Sales unit: pcs Product shape: Rectangular DALI 2 certified: Yes minimum ambient temperature (ºC): -25 Maximum ambient temperature (°C): 35 IK classification: 02 IP classification: 20 Light source: LED Lumen out (lm): 7.799 Lumen per Watt (lm/W): 121 Lamp colour temp (K): 4000 CRI Colour rendering index: >80 Light distribution up %: 30 Light distribution down %: 70 MacAdam step: 3 Energy class light source: D Type of LED Driver: WR: Wireless Radio Number of Driver: 1 L80 Median useful life LED Ta25 (hr): 100000 Driver lifetime at Ta=25, 10% failure rate (h): 100.000 Driver lifetime at Ta=45, 10% failure rate (h): 50.000 Luminous flux decline (LLMF) 50.000h Ta25: 0.96 Voltage from (V): 220 Maximum voltage (V): 240 minimum frequency (Hz): 50 Maximum frequency (Hz): 60 Total consumption (W): 65.19 Number of luminaires on a 10A MCB type B: 12 Number of luminaires on a 10A MCB type C: 21 Number of luminaires on a 16A MCB type C: 35 Sensor type: PIR+Daylight harvesting (CLS) Detection angle crosswise (°): 64 Detection angle lengthwise (°): 55 Factory setting Hold time (minutes): 10 Factory setting On level (%): 100 Max mounting height / detection range (metre): 4 Sensor max hold time: 2h Sensor min hold time: 30sec Sensor standby power consumption (W): 0.50 Optic: SM - Silver matt reflector UGR (70/50/20 & 4H-8H crosswise): 16 Optic main category: Reflector Main body material: Steel Body colour: WH - White Main body colour name: Traffic white Main body colour RAL code: RAL 9016 Length (mm): 1.451 Width (mm): 125 Height (mm): 32 Net weight (kg): 3.28 Termination: 3x2x2.5mm2 Push In Repairable/Changeable Parts: LED module,Internal driver,Optic,Sensor Packaging material: Recycled cardboard Product mounting: Pendant Item gross weight (kg): 3.56

HS Code

9405.11

• EAN 7054131023875
• SAP 1200790601
• Code 83957651
