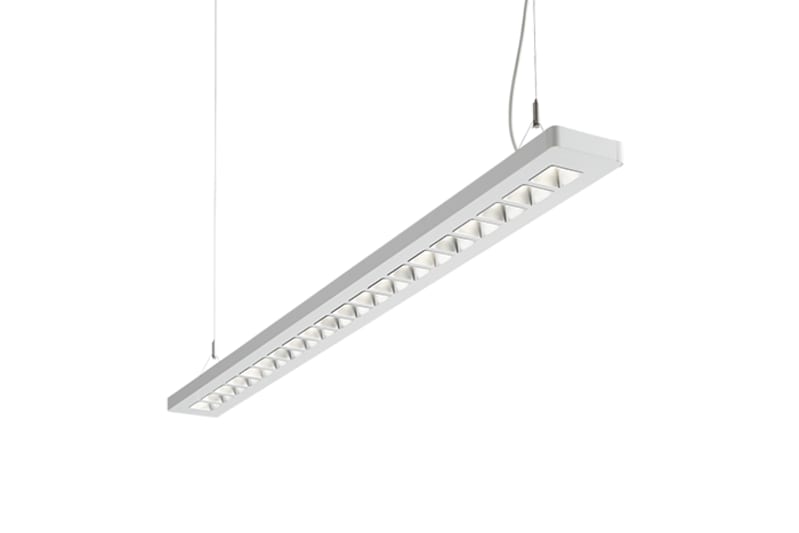

C77-P125X1500 WH 30/70 8000 WR (C77102289)

Glamox C77102289 C77-P125x1500 WH 30/70 8000 WR-G4 830 CPW2-SEN PRE C2.5 SM.

Manufacturer part number (MPN)

C77102289 EAN / GTIN: 7054131022892 Sales unit: pcs Product shape: Rectangular DALI 2 certified: Yes minimum TA (ºC): -25 Maximum TA (ºC): 35 IK classification: 02 IP classification: 20 Light source: LED Lumen Out (lm): 7.487 Lumen Per Watt (lm/W): 117 Lamp colour temp (K): 3000 Colour Rendering Index: >80 Light Distribution Up %: 30 Light Distribution Down %: 70 MacAdam step: 3 Energy Class Light Source: D Type of LED Driver: WR: Wireless Radio Number of Driver: 1 LED Lifetime L80B50 Ta25 (h): 100000 Driver lifetime at Ta=25, 10% failure rate (h): 100.000 Driver lifetime at Ta=45, 10% failure rate (h): 50.000 Luminous flux decline (LLMF) 50.000h Ta25: 0.96 Main Feed AC (V) Min: 220 Main Feed AC (V) Max: 240 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Total Consumption (W): 65.19 Number Of Luminaire MCB 10B: 12 Number Of Luminaire MCB 10C: 21 Number Of Luminaire MCB 16C: 35 Sensor Type: PIR+Daylight harvesting (CLS) Sensor Cover Cross (°): 64 Sensor Cover Length (°): 55 Factory setting Hold time (minutes): 10 Factory setting On level (%): 100 Max mounting height: 4 Max Hold Time: 2h Min Hold Time: 30sec Standby Power Consumption (Sensor) (W): 0.50 Optic Name: SM - Silver matt reflector UGR (70/50/20 & 4H-8H crosswise): 16 Optic main category: Reflector Body material: Steel Body Colour: WH - White Main Body Colour Name: Traffic white Main Body Colour RAL code: RAL 9016 Length (mm): 1.451 Width (mm): 125 Height (mm): 32 Item Net Weight (kg): 3.28 Termination: 3x2x2.5mm2 Push In Repairable/Changeable Parts: LED module,Internal driver,Optic,Sensor Packaging material: Recycled cardboard Product Mounting: Pendant Item Gross Weight (kg): 3.56

HS Code

9405.11

• EAN 7054131022892
• SAP 1200790600
• Code 83957631
