Glamox
RLXCXZ1 80WAC1D MB60 2HCAABK
Part numberLN1002268EAN / GTIN7072720000373HS code8543.70
Lighting & Electrical Accessories
Floodlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

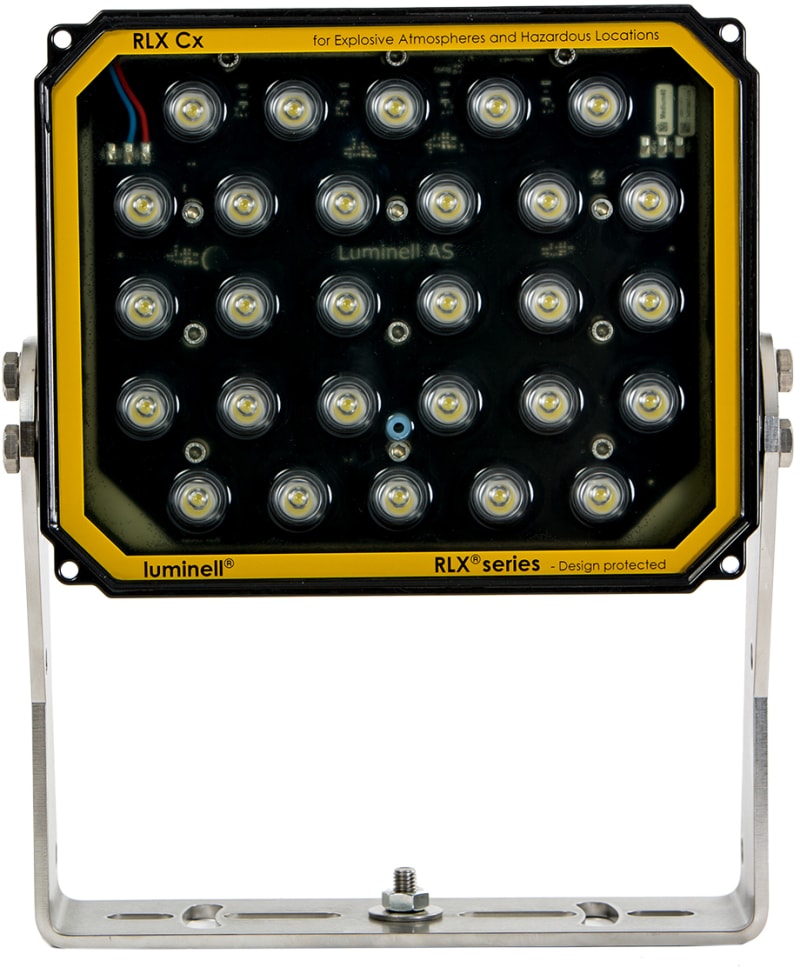

Glamox LN1002268 Luminell - RLX Cx Floodlight Ex Zone 1, 80W, Medium beam (60), 9,7kg, dimmable, 2xM25, 2xM20.
Technical Specifications
- Manufacturer part number (MPN)
- LN1002268 EAN / GTIN: 7072720000373 HS code: 8543.70 Sales unit: pcs EMC Category: EMC1 : EMC B – IEC 60533 Bridge and Open deck minimum Voltage -10% (VAC): 100 Maximum voltage +10% (VAC): 277 minimum frequency -5% (Hz): 50 Maximum frequency +5% (Hz): 60 Main Feed DC (V) Min: 100 Main Feed DC (V) Max: 300 Total consumption (W): 80 Inrush current (A): 50 Number of luminaires on a 10A MCB type B: 7 Number of luminaires on a 10A MCB type C: 11 Number of luminaires on a 16A MCB type B: 12 Number of luminaires on a 16A MCB type C: 20 Certification: ATEX,Ex Zone 1,Ex Zone 2,Ex Zone 21,Ex Zone 22,IECEx,INMETRO Marine Approved: Yes Ignition Class: T4135° Atex code: Ex II 2G II 2D Class Ex Gas: IIC Class Ex Dust: IIIC Max surface temp Dust: 135 Class III: No EX zone: Ex zone 1,Ex zone 2,Ex zone 21,Ex zone 22 minimum ambient temperature (ºC): -55 Maximum ambient temperature (°C): 55 IP classification: 66/67 Corrosion class: C5-M Light source: LED Lumen out (lm): 11.290 Lumen per Watt (lm/W): 141 MacAdam step: 3 Light source included: Yes Dimmable: Yes Type of LED Driver: HFDa: Dimming Analogue 1-10V Number of Driver: 1 L70 Median useful life LED Ta45 (hr): 100000 Main body material: Seawater-resistant aluminium Surface treatment: Anodized Body colour: BL - Black Main body colour name: Graphite black Main body colour surface: Powder coated Main body colour RAL code: RAL 9011 Mounting bracket material: Stainless steel AISI 316 Length (mm): 306 Width (mm): 144 Height (mm): 367 Net weight (kg): 9.60 Termination: 4x6+2x16+8x2.5mm2 Spring Cage Cable gland: M25-Nickel plated brass Number of cable glands: 2 Blind plugs: M20-Nickel plated brass Number of blind plugs: 2 Max cable diameter (mm): 10 Min cable diameter (mm): 18 Membrane vent: Yes, M12 Item gross weight (kg): 10.43 Min storage temp: -55 Max storage temp: 55
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 7072720000373
- SAP 1200122184
- Code 81987605
Product Documentation
Document preview: RLXCXZ1 80WAC1D MB60 2HCAABK (LN1002268) — Specification sheet
