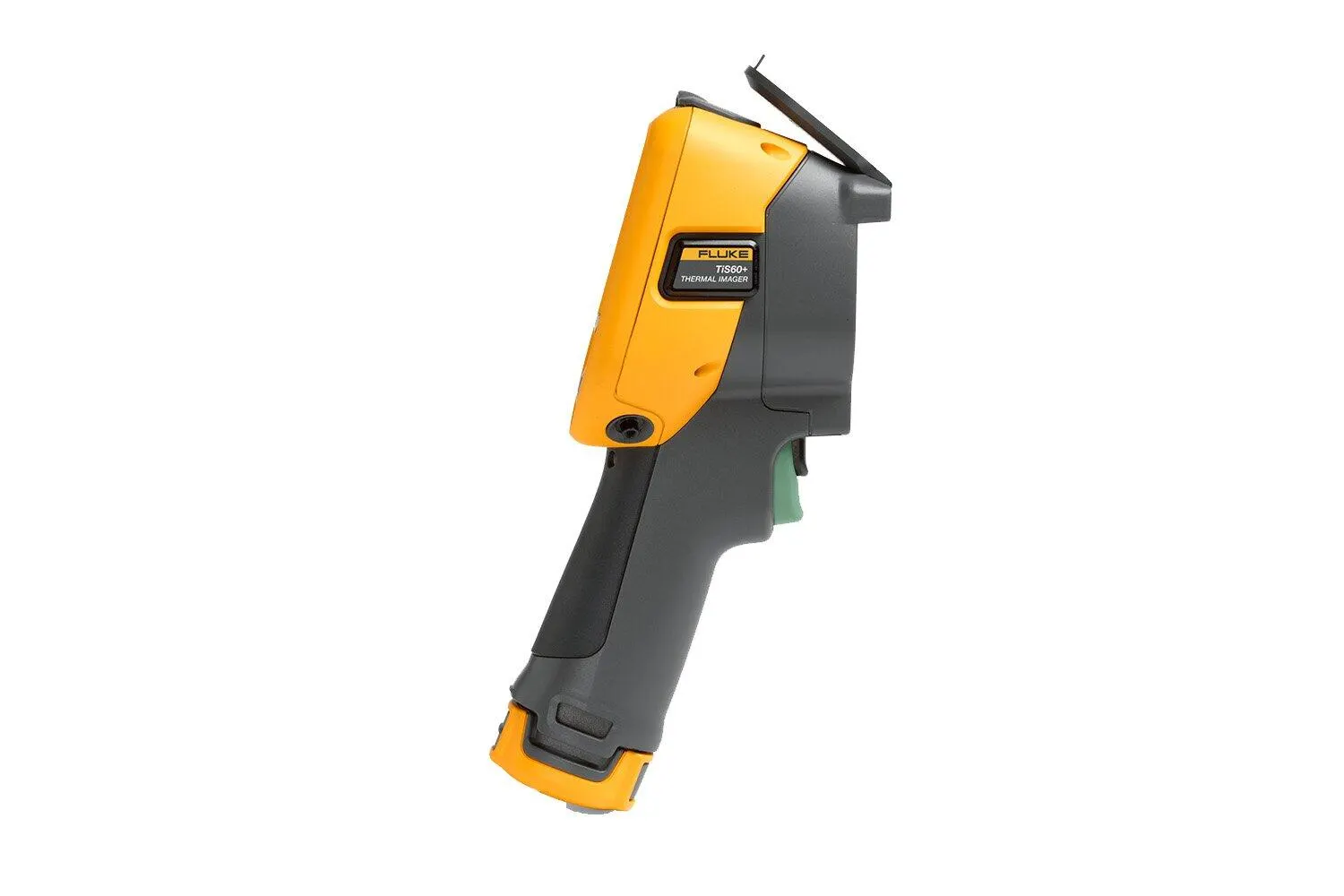

Fluke TIS60+ Thermal Camera

The Fluke TiS60+ thermal camera with 320 x 240 resolution, fixed focus and IR Fusion

Manufacturer part number (MPN)

5133399 Brand: Fluke Category: Tools IFOV (spatial resolution): 1.86 mRad, D:S 532:1 Infrared resolution: 320 x 240 (76,800 pixels) Field of view: 34.1 °H x 25.6 °H Focus system: Fixed minimum focus distance: 46 cm (18 in) Ruggedized display: 3.5 inch (8.9 cm landscape) 320 x 240 LCD Ergonomic design: Designed for one-handed use Temperature range (not calibrated below -10 °C): -20 °C to 400 °C (-4 °F to 752 °F) Accuracy: ± 2 °C or 2 % (at 25 °C nominal, whichever is greater) Thermal sensitivity (NETD): ≤ 0.045 °C at 30 °C target temp (45 mK) On-screen emissivity correction: Yes (both value and table) On-screen reflected background temperature compensation: Yes On-screen transmission correction: No Wireless connectivity: Yes, to PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi and LAN (where available) Fluke™ Connect app compatible: Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing Fluke Connect Assets optional software: Yes*, assign images to assets and create work orders. Easily compare measurement types - whether mechanical, electrical or infrared images - in one location IR Fusion® technology: Yes AutoBlend™ mode: Yes Picture-In-Picture (PIP): Yes Built-in digital camera (visible light): 5MP Level and span: Smooth auto and manual scaling Fast auto-rescale in manual mode: Yes minimum span (in manual mode): 2.5 °C (4.5 °F) minimum span (in auto mode): 5 °C (9.0 °F) Extensive memory options: Internal 4GB memory and 4GB micro SD card Image capture, review, save mechanism: One-handed image capture, review, and save capability Image file formats: Non-radiometric BMP or JPEG or fully-radiometric is2 Memory review: Yes Software: Fluke Connect desktop software - full analysis and reporting software with access to the Fluke Connect system Analyze and store radiometric data on a PC: Yes Export file formats with Fluke Connect software: is2, BMP, GIF, JPEG, PNG, TIFF Voice annotation: 60 seconds maximum recording time per image; reviewable playback on camera; Bluetooth headset required (sold separately) IR-PhotoNotes: Yes - 3 images Auto capture (temperature and interval): Yes Batteries (field-replaceable, rechargeable): Two lithium ion smart battery pack with five-segment LED display to show charge level Battery life: 4 hours continuous use per battery pack Battery charging time: 2.5 hours to full charge Battery charging system: Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter AC operation: AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz) Power saving: User selectable Standard palettes: 8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted Ultra contrast palettes: 8: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra Laser pointer: Yes Frame rate: < 9 Hz or 30 Hz Color alarms: High temperature, low temperature, isotherms (within range) Infrared spectral band: 7.5 μm to 14 μm Operating temperature: -10 °C to +50 °C (14 °F to 122 °F) Storage temperature: -20 °C to +50 °C (-4 °F to 122 °F) without batteries Relative humidity: 10 % to 95 %, non-condensing Center-point temperature measurement: Yes Spot temperature: Hot and cold spot markers User-definable spot markers: 3 User defined measurement boxes: Expandable-contractible measurement box Hard case: Rugged hard carrying case with soft transport bag, including adjustable strap Safety standards: IEC 61010-1: Overvoltage category II, Pollution Degree 2 Electromagnetic compatibility: IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A Australian RCM: RCM IEC 61326-1 US FCC: EN61326-1; FCC Part 5, EN 55011: Class A, EN 61000-4-2, EN 61000-4-3 Vibration: 2G, IEC 68-2-6 Shock: 25G, IEC 68-2-29 Drop: Engineered to withstand 2 meter (6.5 feet) drop Sized (H x W x L): 26.7 cm x 10.1 cm x 14.5 cm (10.5 in x 4.0 in x 5.7 in) Weight (battery included): 0.72 kg (1.6 lb.) Enclosure rating: IP54 (protected against dust, limited ingress; protection against water spray from all directions) Warranty: Two-years (standard) Recommended calibration cycle: Two-years (assumes normal operation and normal aging) Supported languages: Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish RoHS compliant: Yes

• OEM-URL https://www.fluke.com/en-us/product/thermal-cameras/tis60plus
